IS15 Wind Manual
26 20220752G

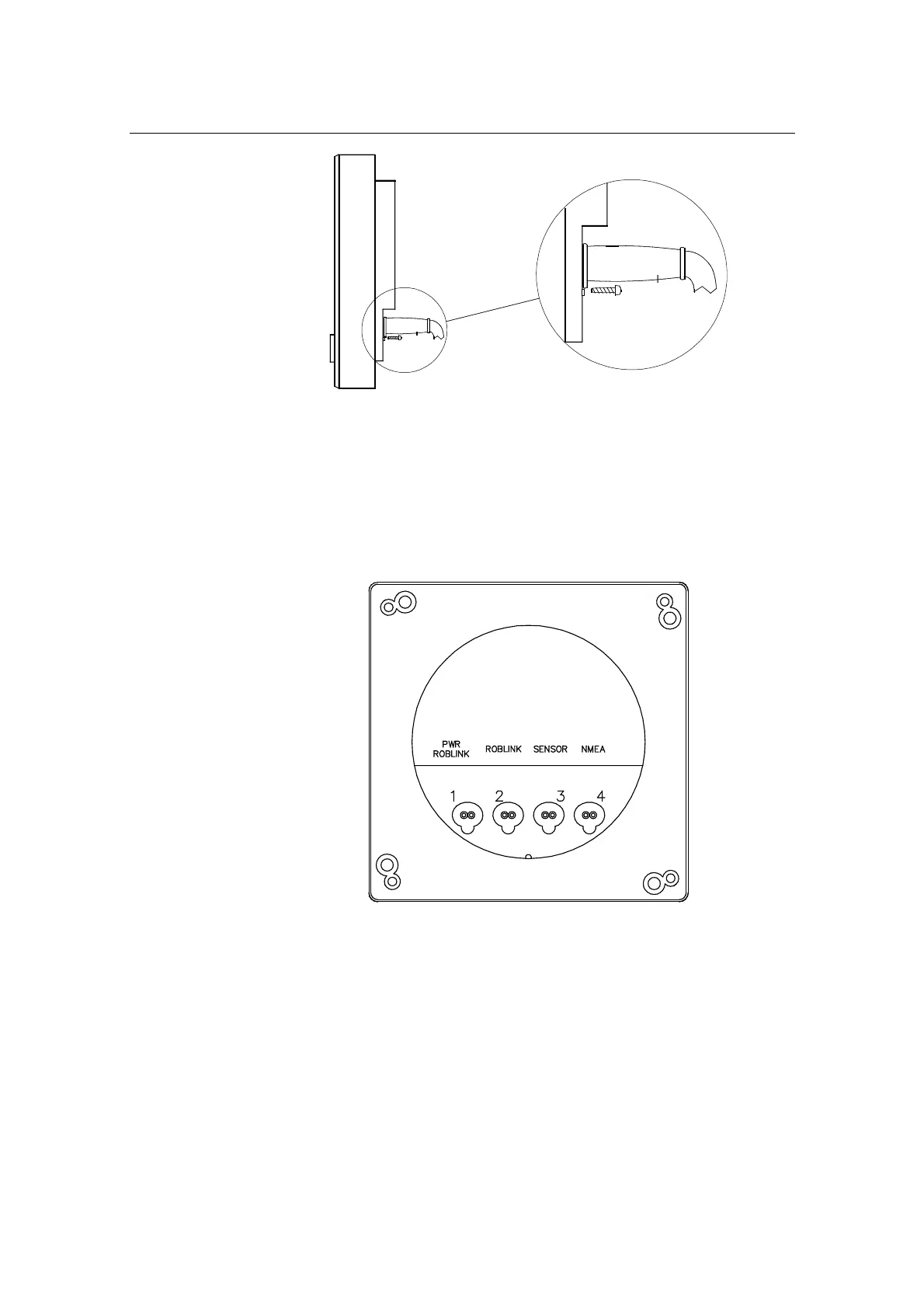

Figure 5-6 Securing connectors to the instrument
Make sure that all empty sockets have the protection plugs
inserted. Coat the connectors with silicone grease or petroleum
jelly. These products will not harm the instrument.
5.5 Instrument head connections
Figure 5-7 - Instrument Connections
The instrument head has four identical two-pin connector
sockets protected by rubber plugs. Each socket is identified by
number and signal markings.
Note ! The NMEA cable must be plugged into connector no. 4. Wrong
connection may damage the connected equipment.
Interconnection between instrument heads is made by the
supplied 0.3 m Roblink cable or Roblink extension cables. See
page 6. Refer also to section 5.4 and 5.6 for further information.
