1 INTRODUCTION
1.1 The Basic IS15 Wind System (W-1)
A basic stand alone Wind System comprises the following:
• IS15 Wind instrument w.: Mounting kit, 0,3 m (1’) IS15
(Roblink) Cable and Operator’s
Quick Reference Guide (“bridge
card”).
• IS15 Wind Transducer w.: Mounting accessories, 30 m (99’)
mast cable, junction box, 10 m (33’)
IS15 (Roblink) Cable and manual.
• Roblink Power Cable: Special power cable 2,5 m (8’).
Note ! This cable is only required when using a single IS15 Wind instrument
as stand alone, see Figure 1-1.
The units must be interconnected as per below.
Wind
Transducer
IS15 Wind
SIMRA D
Junction box (mast foot)
Supply 10,8-15,6VDC
10m (33')
30m (99')
Speed/heading
input on NMEA
Circuit breaker
*
**
Roblink cable with connector
(Special) Roblink Power Cable
*
**
Fuse 2A

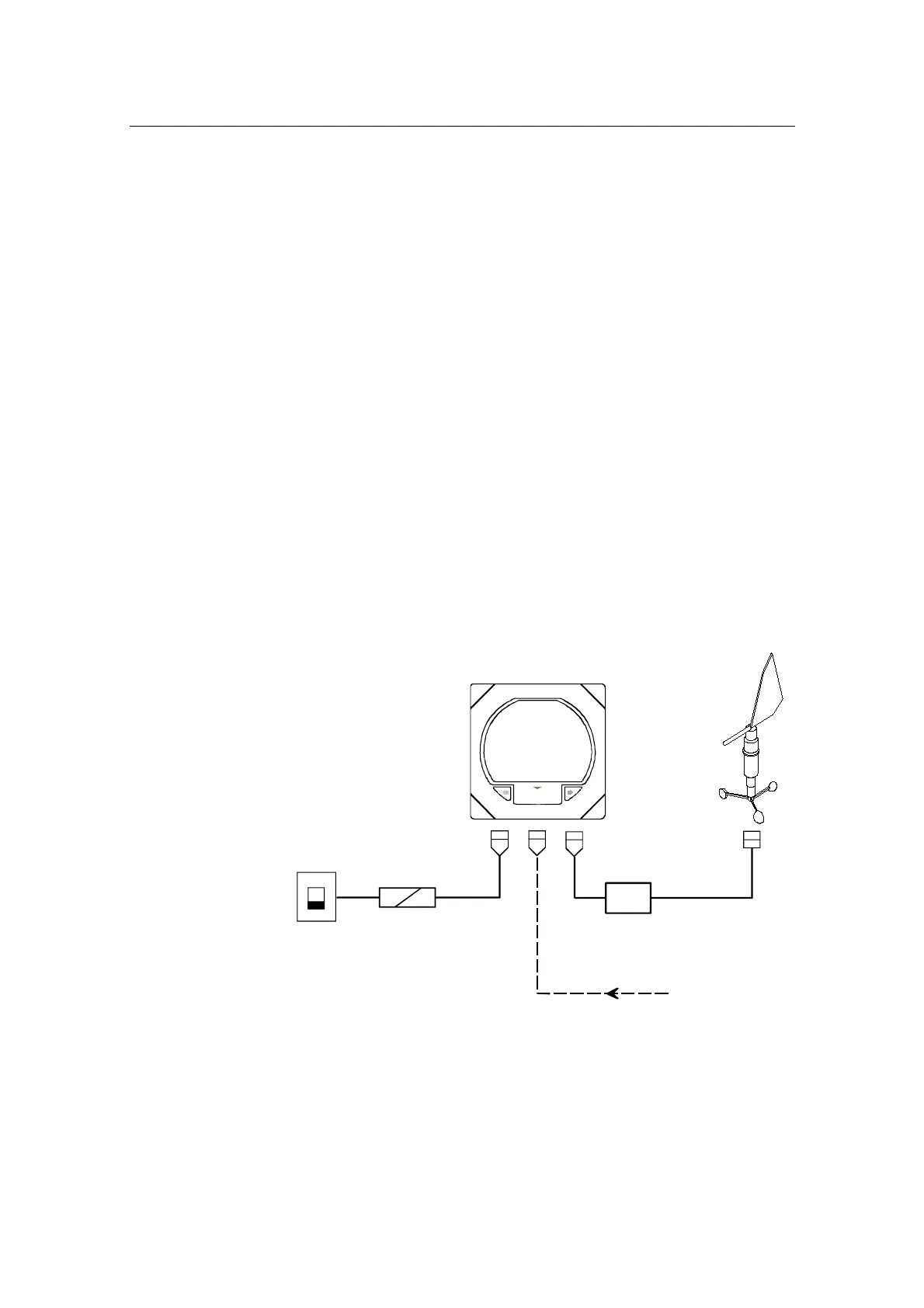

Figure 1-1 Basic IS15 Wind System
Note ! If no input is available on NMEA 0183 format, the above instrument
system will only display apparent wind speed and angle. Refer to
Chapter 5.4 for more information.
