GD10P User Manual Page 13 of 44 850-811250-Rev.06b
3.4 Duct or pipe mounting
If installed in a ventilation duct or pipe, the mounting arrangement and accessories shown in
Figure 3 and
Figure 4 should be used.
The Duct Mounting Bracket shown in
Figure 3 allows the GD10P to be positioned in the core of the airflow in wide ducts or pipes.
Avoid direct light on lens and mirror if the GD10P is mounted without the Weather
Protection.
In order to achieve minimum response time, the Weather Protection must be oriented with the
flow direction indicator facing into the air flow. See Figure 2 and
Figure 4.
The sensor must be mounted in straight parts of the duct with undisturbed airflow. Avoid areas
with possible turbulent flow e.g. immediately after sharp bends or junctions.
The kit includes a modified weather protection as well as piping for functional testing.

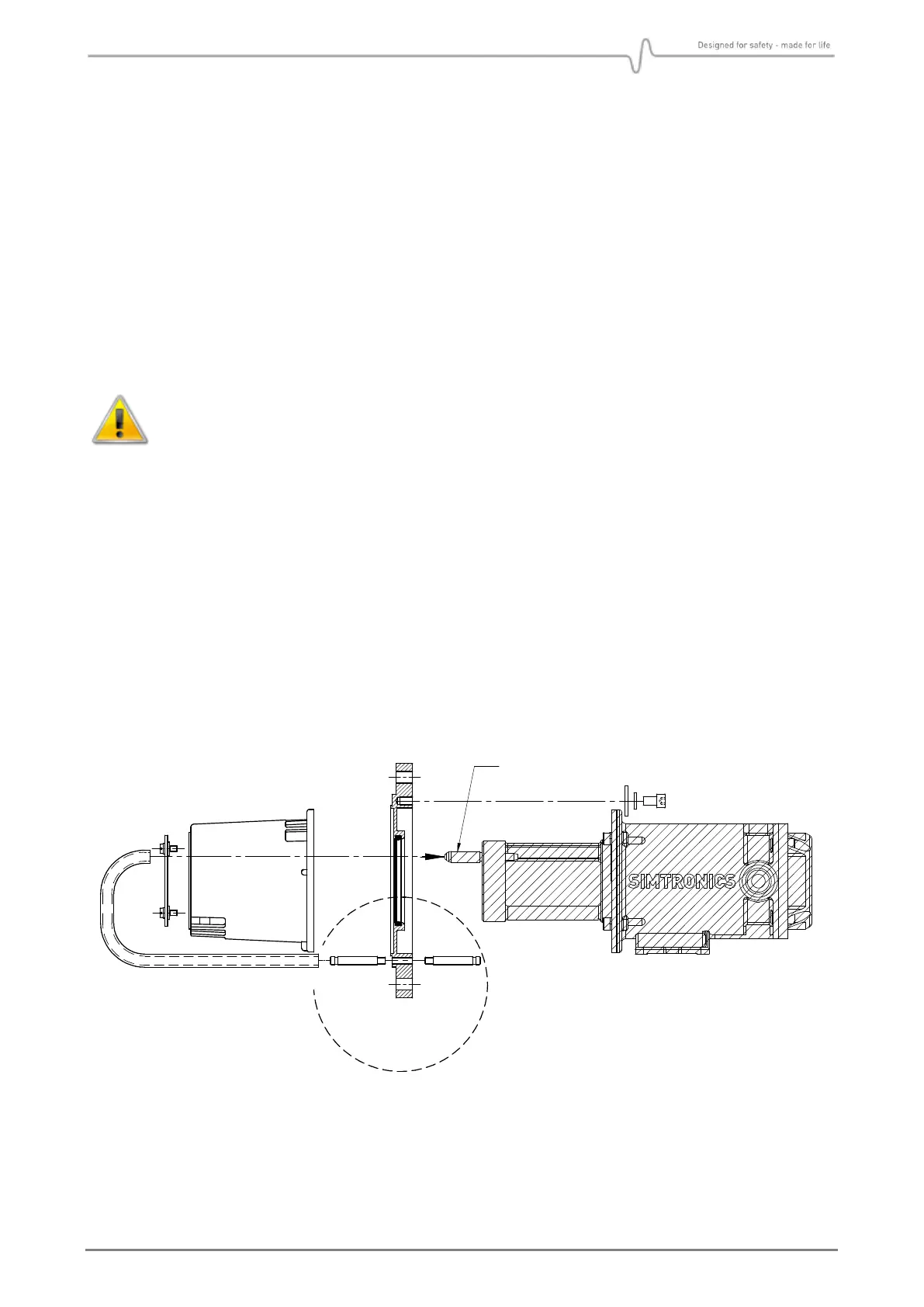

Figure 3: Exploded view, Duct Mount Flange Kit
