Simtronics GD10-P00 - Cable and Electrical Connections

GD10P User Manual Page 15 of 44 850-811250-Rev.06b
3.5 External cable
The cable type must be chosen in accordance with applicable regulations.
The table below indicates maximum cable lengths (2-wire) restrictions due to voltage drop over
the power supply cable.
Core size cable
0,5 mm
2
0,9-1 mm
2
1,5 mm
2
Maximum length (with a
24VDC power supply)
250m
500m
750m
3.6 Electrical connection
The terminal compartment is accessible by removing the circular terminal cover (loosen the
four M5 screws).

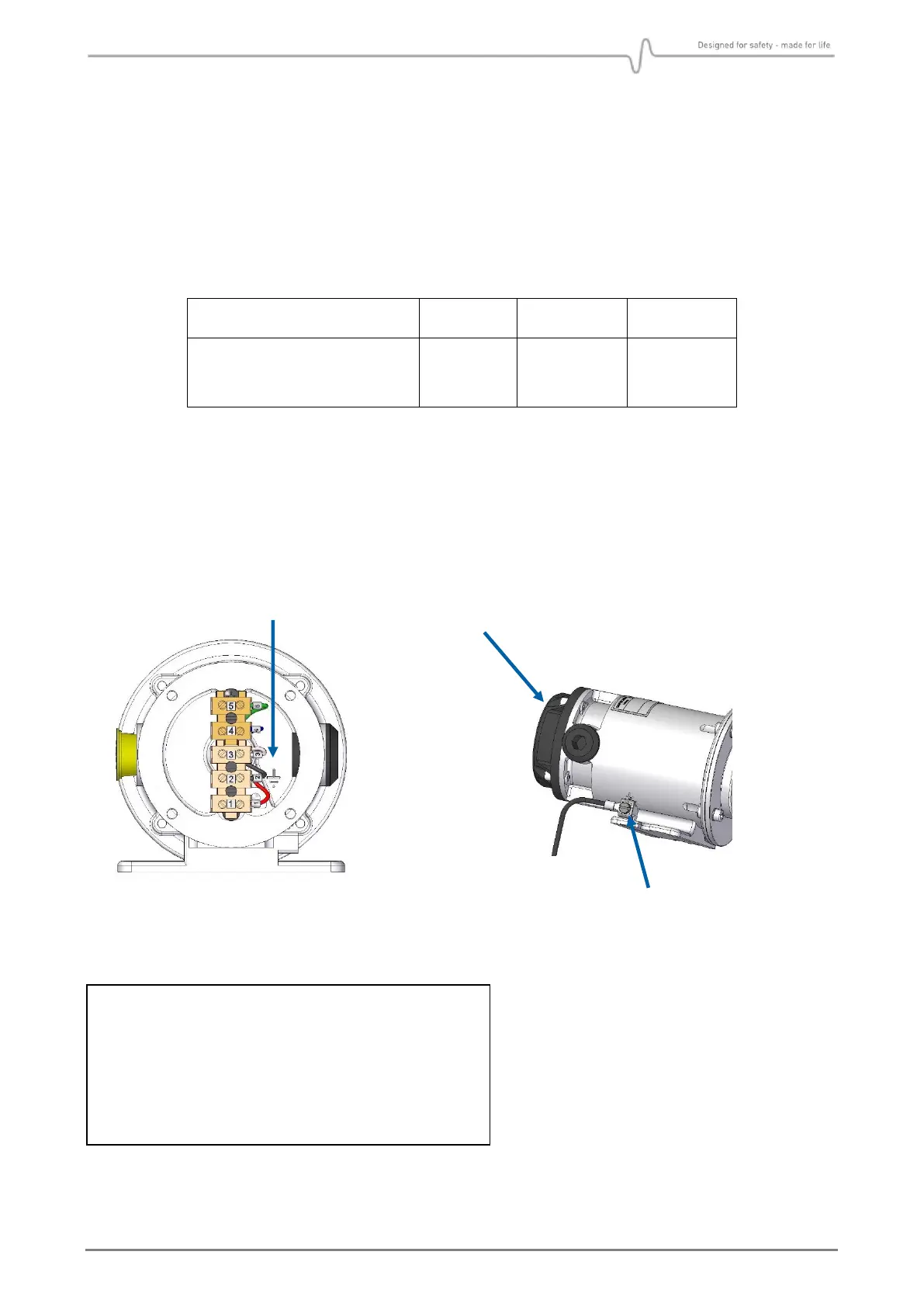

Figure 5: Terminal compartment
Internal earth point
External earth point
Terminal Compartment
Terminal 5 Factory use only
Terminal 4 Factory use only
Terminal 3 4-20 mA output
Terminal 2 0 V
Terminal 1 +24 VDC
