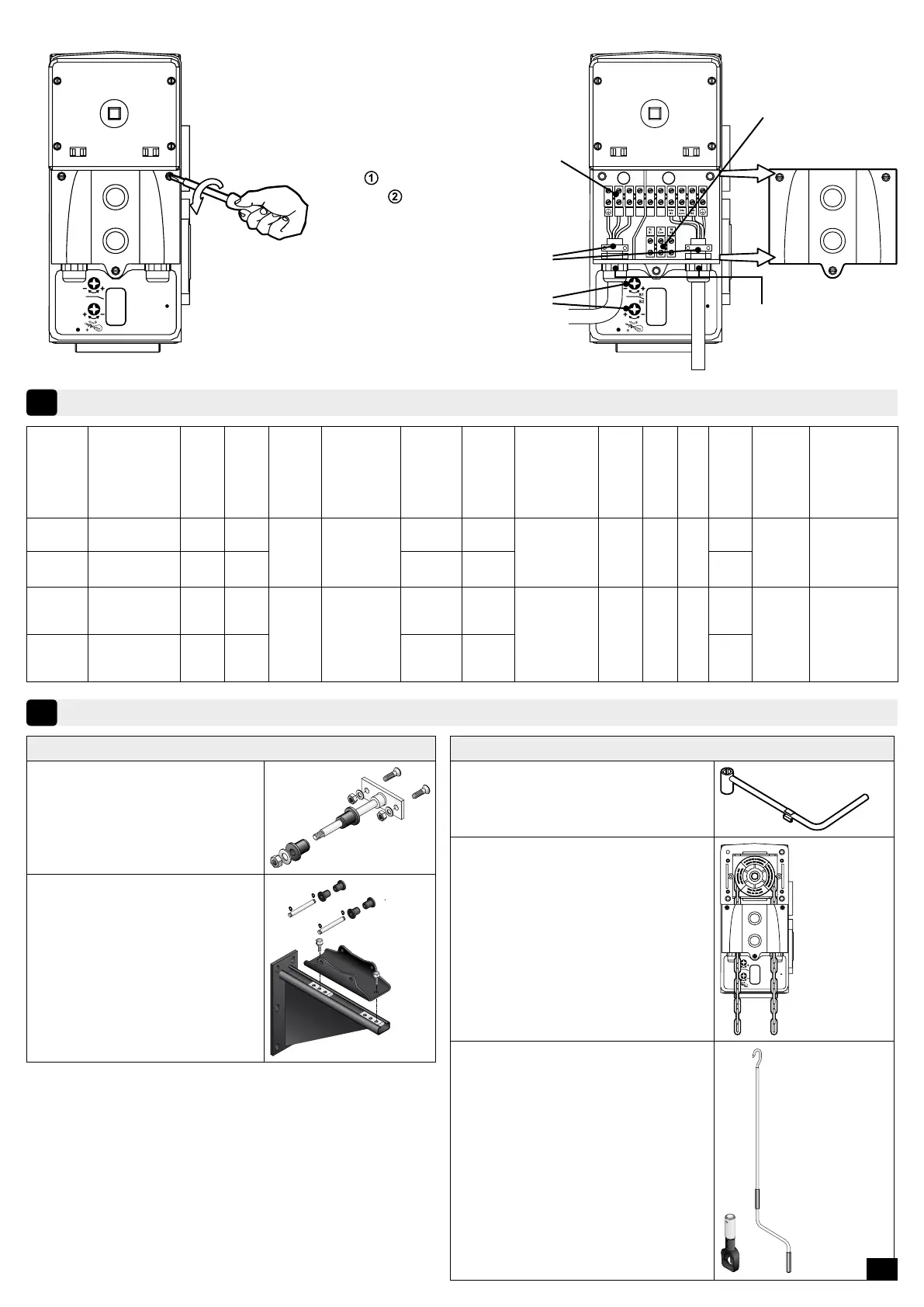

Simu SIMUBOX 200/12 - Manual Override

LN
1 2
1.2 - Front face description
S1
S2
MOTOR RANGE
2
Reference Description
Torque
(Nm)
Speed
(rpm)
Shaft
diameter
(mm)
Power supply
Power
consumption
(W)
Intensity
at
nominal
torque
(A)
Operating time
(min)
Nb
cycles
/ hour
Cos

IP
Weight
(Kg)
Limit
switch
capacity
(turns)
Operating
temperature
2009128
SIMUBOX
200/12 MONO
200 12
30 230V - 50Hz
980 4.5
4 5 0.9 44
18
25 -10°C - + 40°C
2009129
SIMUBOX
250/08 MONO
250 08 1000 4.5 18
2009375
SIMUBOX
180/12 MONO
240V
180 12
30 240V - 50Hz
900 3.9
4 5 0.9 44
18
25 -10°C - + 40°C
2009376
SIMUBOX
250/08 MONO
240V
250 08 950 4.1 18
ACCESSORIES
3
Manual override
Short crank (included)
Override by chain
• 10 meter chain
S1
S2
Override with long crank
• Ring
• Crank handle with hook
For mounting
Installation with block rod
Installation with bracket +
mounting bracket
Terminal plug
power supply connection
command connection
End limit adjustment screws
Inputs for
command
connection and
power supply
Extra switches
Traction stops
