Simu SIMUBOX 200/12 - Motor Installation

MOTOR INSTALLATION
Unstable wired controls
Universal key switch in
unstable mode (with or
without branding)
Unstable key switch Unstable waterproof key
switch
Waterproof rotary push
button
i
For any other key switch, please contact your SIMU interlocutor.
4
3
4
2
5
6
7

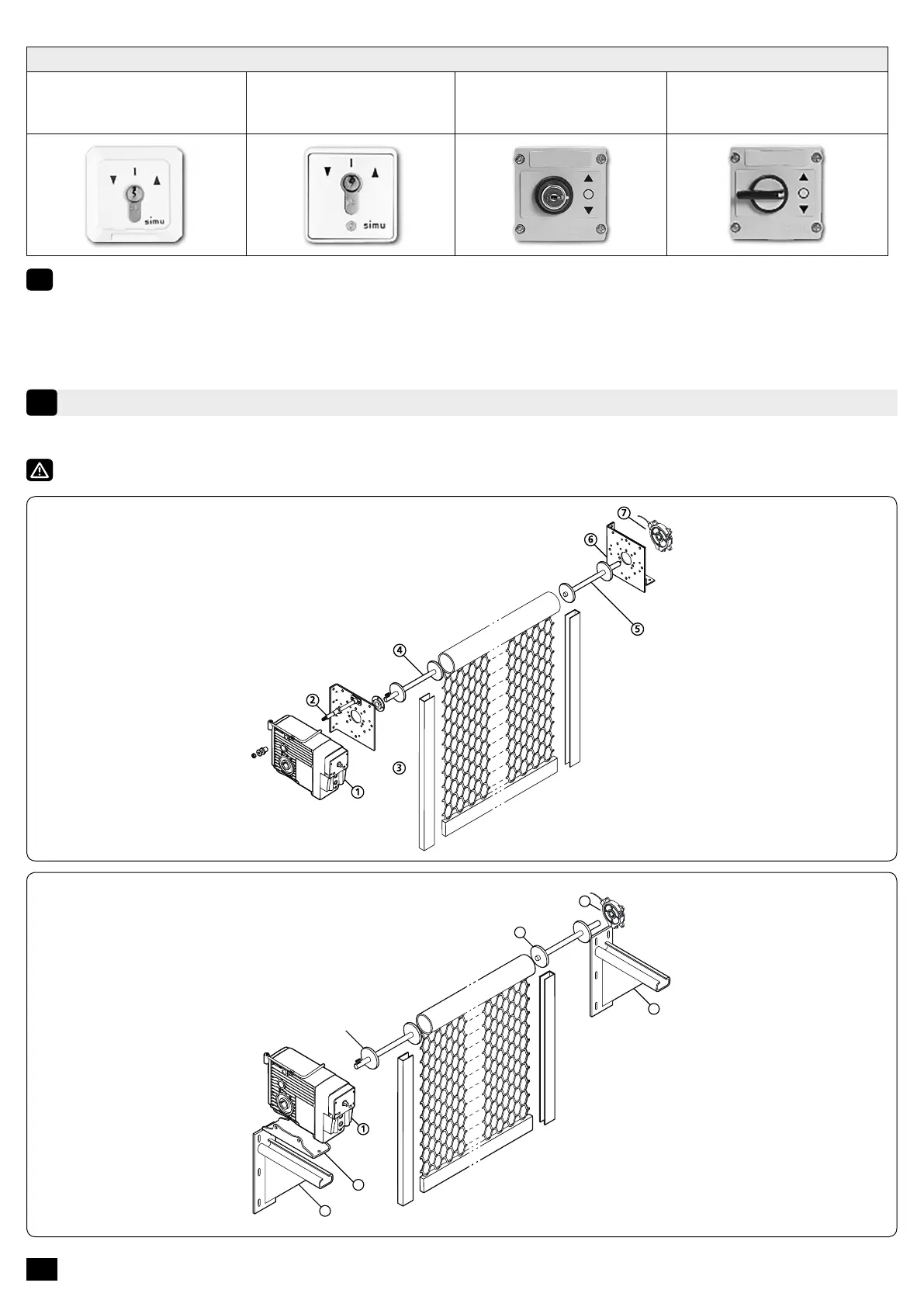

4.1 - For grilles and shutters
• 1. Simubox
• 2. Block rod
• 3. Plate motor side
• 4. Adjustable bobbin with key
• 5. Adjustable bobbin with key
• 6. Plate opposite side
• 7. Safety brake
Installation with block rod :
• 1. Simubox
• 2. Mounting bracket
• 3. Bracket
• 4. Adjustable bobbin with key
• 5. Adjustable bobbin with key
• 6. Braket opposite side
• 7. Safety brake
Installation with bracket :
Do not forget to grease the keyed shaft of the coil before mounting the motor.
EN
