Simu SIMUBOX 220/12 TRI - Motor Installation

EN
3/6
Control box
SD510
i
For any other control box, please contact your SIMU interlocutor.
3
4
2
5
6
7

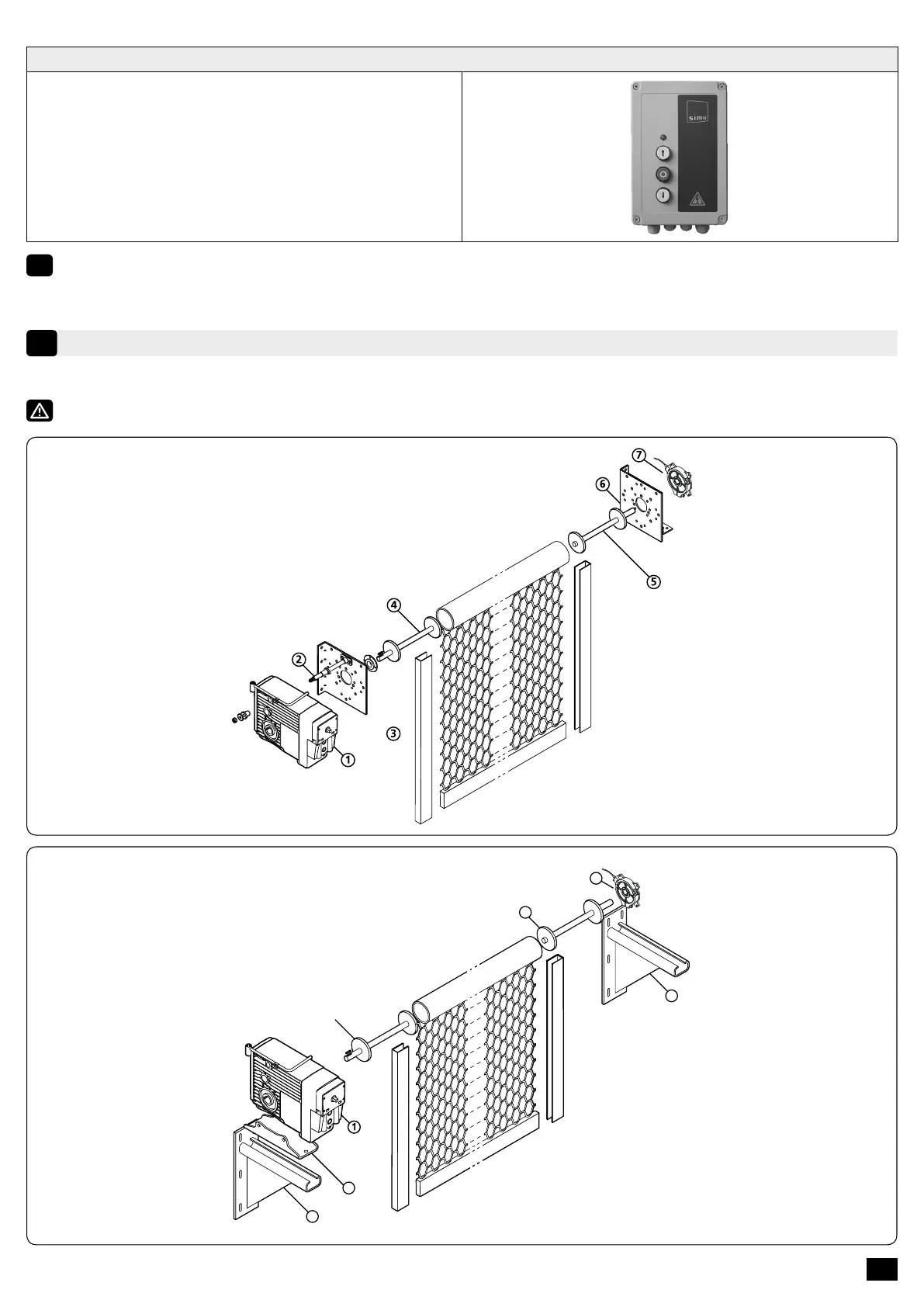

• 1. Simubox
• 2. Block rod
• 3. Plate motor side
• 4. Adjustable bobbin with key
• 5. Adjustable bobbin with key
• 6. Plate opposite side
• 7. Safety brake
Installation with block rod :
• 1. Simubox
• 2. Mounting bracket
• 3. Bracket
• 4. Adjustable bobbin with key
• 5. Adjustable bobbin with key
• 6. Braket opposite side
• 7. Safety brake
Installation with bracket :
MOTOR INSTALLATION
4
4.1 - For grilles and shutters
Do not forget to grease the keyed shaft of the coil before mounting the motor.
