Sinclair ASD-18AIA User Manual

DC Inverter Cassette Type Air Conditioner Installation and Operation Manual
49
After xing, make sure there is no gap between the ceiling and panel.

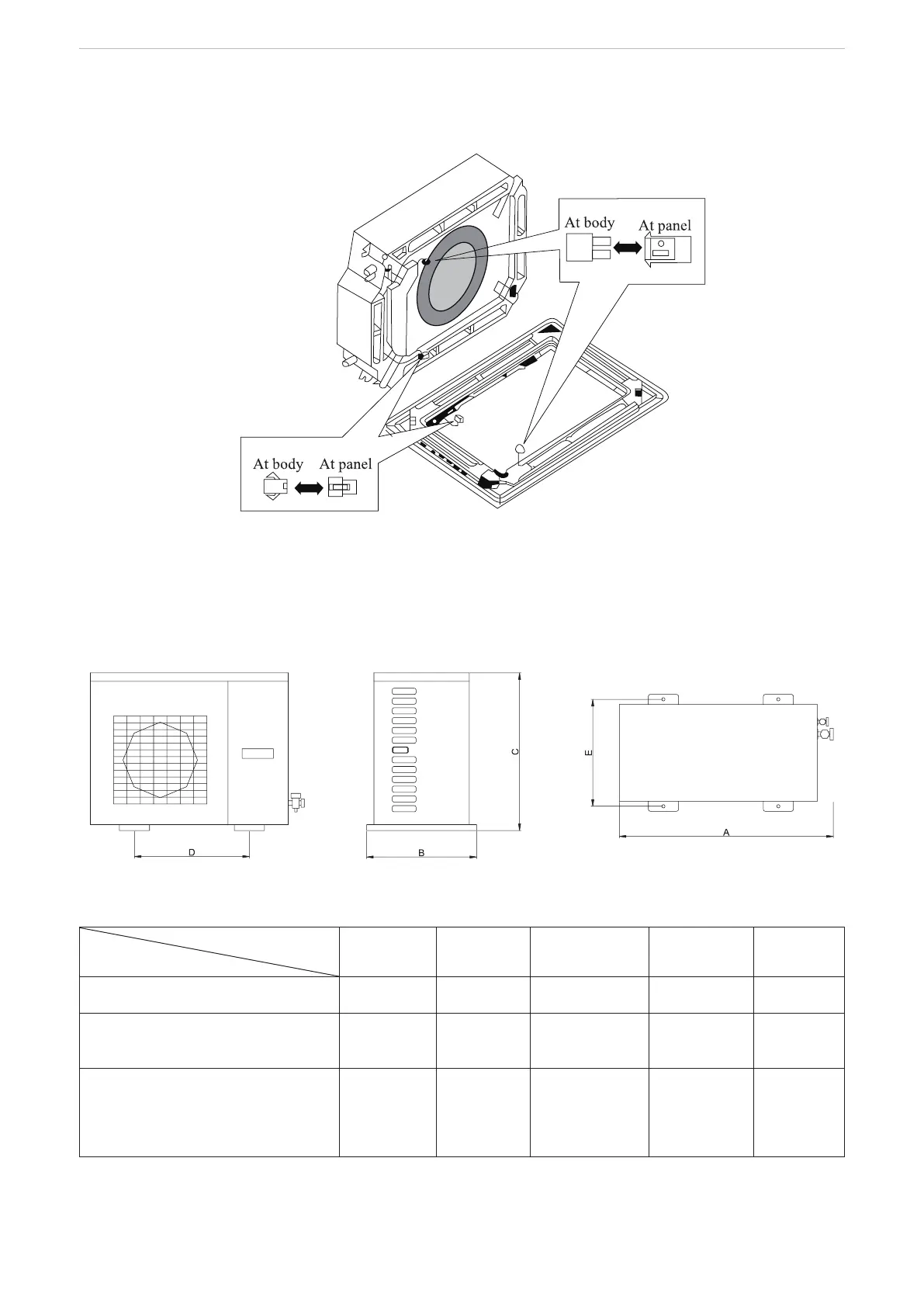

3. Wiring of the decoration panel.
Connect the joints for swing ap motor lead wire (at 2 places) installed on the panel (Refer to the gure
below)
Fig.26
NOTE: Two butted terminals connected with the panel must be placed inside the electric box; they should be
covered into the electric box by the electric box cover.
8.5 Install of Outdoor Unit
8.5.1 Prole dimensions of outdoor unit
Fig.27
Table 7 Unit: mm
Item
Model
A B C D E
ASGE-18AIA WK 955 396 700 560 360
ASGE-24AIA WK 980 427 790 610 395
ASGE-36AIA WK
ASGE-36AIA-3 WK
ASGE-42AIA-3 WK
1107 440 1100 631 400
