Technical Information

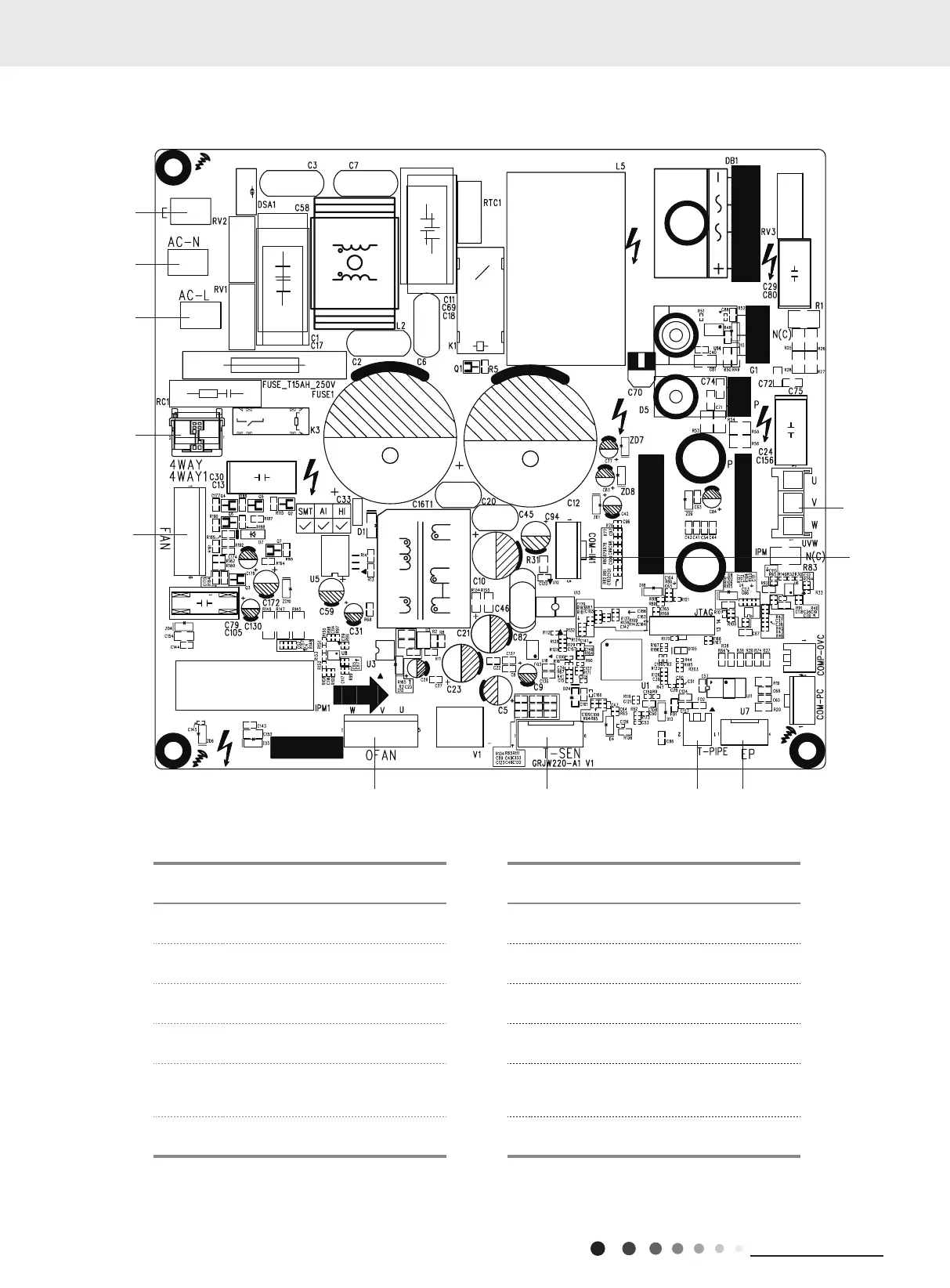

5.2 PCB Printed Diagram
Silk screen on main board
No. Name No. Name
1 Indoor motor terminal 6 Terminal of compressor
2 Terminal of 4-way valve 7 Interface of display board
3 Terminal of live wire 8 E disk interface
4 Terminal of neutral wire 9 Reserve discharge temperature sensor
5 Terminal of earthing wire 10
Outdoor Ambient temperature sensor
Indoor Ambient temperature sensor
Outdoor Tube temperature sensor
11 Outdoor motor terminal
