Installation and Maintenance
CAUTION

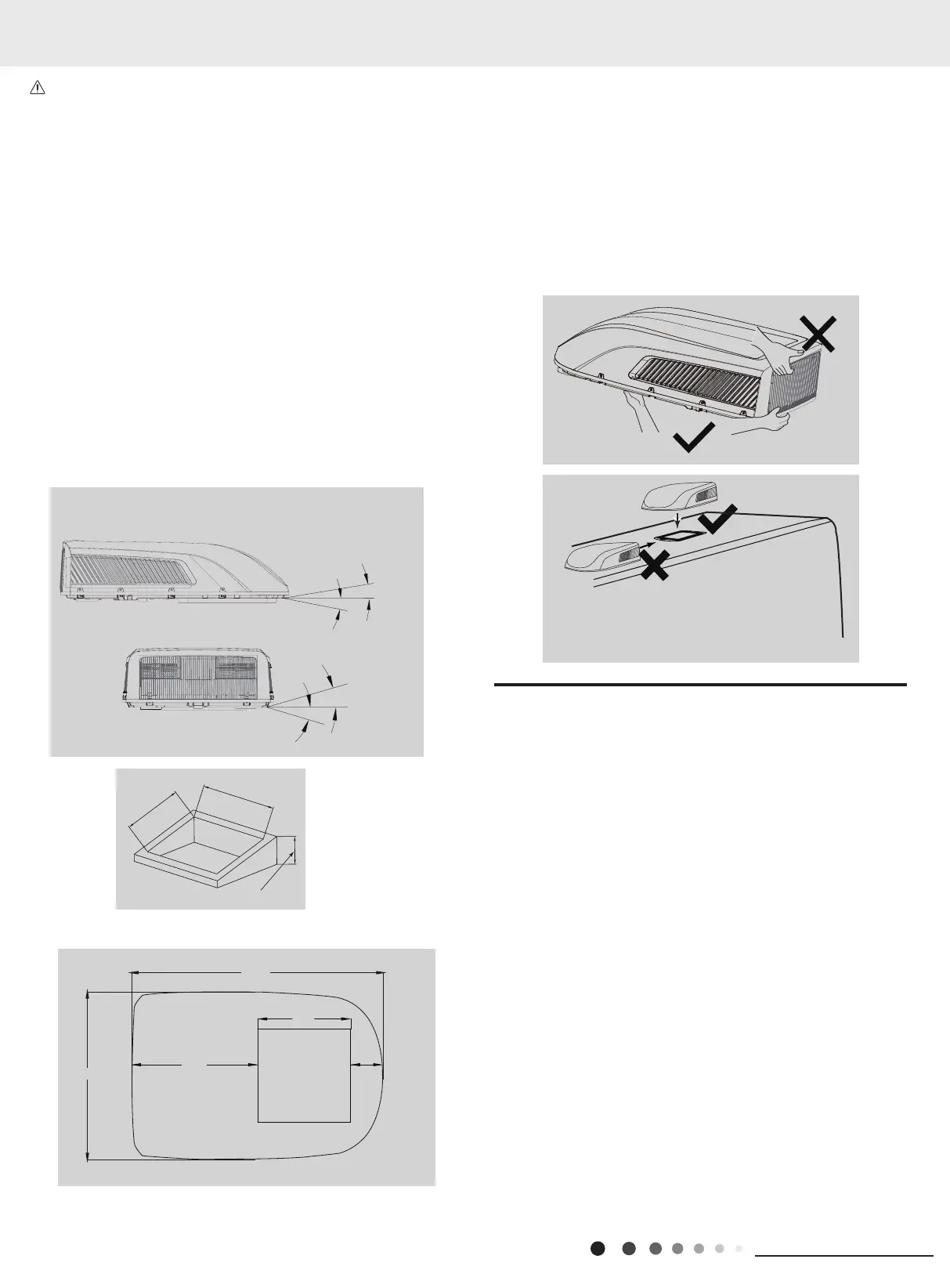

1. The roof top air conditioner must be mounted on a level plane
from front to rear and side to side when the vehicle is parked on a
level plane. Fig. 4 shows maximum allowable degrees that the unit
can be mounted above or below level.
2.If the roof of the vehicle is sloped (not level) such that the roof top
air conditioner cannot be mounted within the maximum allowable
degree specifications, an exterior leveling shim will need to be
added to make the unit level. A typical leveling shim is shown in Fig.
5.
3.Once the roof top air conditioner has been leveled, some
additional shimming may be required above the interior ceiling
assembly. The roof top air conditioner and the interior ceiling
assembly must be square with each other before they are secured
together.
4.After the mounting hole area is properly prepared, remove the
carton and shipping pads from around the roof top air conditioner.
Carefully lift the unit on top of the vehicle. Do not use the outer
plastic shroud for lifting. Place the roof top air conditioner over the
prepared mounting hole.
5.The front section of outdoor unit of air conditioner must be in the
same direction as the vehicle,which is useful for reducing wind
resistance.
400mm
400mm
Height Varies to Make Unit Level
Above or Below
Level 5° Max
Above Level 5° Max
Note: Try you best to put the unit on the horizontal surface for
operation. The unit can only operate for a short time at the maximum
sloping angle of 5º for preventing water leakage.
Below Level 0° Max
Level
Level
Level
Level
Fig.4
Fig. 5
NOTE:AIR CONDITIONER DIMENSIONS (ROOF OF UNIT)
1077
(588)
400
400x400
OPENING
89
720
Unit:mm
Fig. 6
Fig.7
Fig.8
8.5 Mounting Outdoor Unit
8.6 Installing The Ceiling Assembly
1.Open the package and take out the outdoor unit
.
1) When taking out the outdoor unit after unpacking, do not lift the
air outlet grille at the back of outer case(see Fig.7).
2.Put the outdoor unit at the mounting plat of switchover opening.
1) Lift the outdoor unit. During the movement, it is strictly forbidden
to hoist the plastic outer caser of outer unit of the air conditioner.
2) Put it on the mounting plat of the prepared switchover opening
to make the sealing strip of outdoor unit match with the groove
on the surface of the mounting plat. Do not drag the outdoor unit.
Otherwise, the seal may fall o.
Make sure that you have properly matched the roof top air
conditioner and interior ceiling assembly.
Caution before tightening bolts:
1.The applicable thickness of vehicle roof ranges from
30mm~80mm.
2.Before tightening bolts, screw in the four bolts manually and
prohibit screwing forcibly.
3.When screwing bolts, you can use automatic tool. Do not tighten
one bolt completely and then tighten other bolts, in order to prevent
sticking of screw thread.
4.The max torque for tightening ranges from 2.3Nm~2.5Nm.
The following step by step instructions must be performed in the
following sequence to ensure proper installation.
1.Carefully take the ceiling assembly out of the carton.
2.Remove the ceiling grille from the ceiling assembly.
3.Then carry the outdoor unit to the vehicle’s top and align with the
openings on the vehicle’s top. Use 2 sets of mounting plat
assembly and 4 screw bolts to mount the outdoor unit (See Fig. 9).
4.You must start (thread) the mounting bolts by hand to avoid
cross-threading. DO NOT START THE MOUNTING BOLTS WITH
AN AIR GUN. The mounting bolts should be tightened, process is
completed when the basepan gasket has been evenly compressed.
5.Before installing the air duct assembly of the indoor unit of
recreational vehicle air conditioner, assemble the foam assembly
according to the thickness of the vehicle’s top. After simulated
installation, use an appropriate amount of sponge and foam
To Next Page
