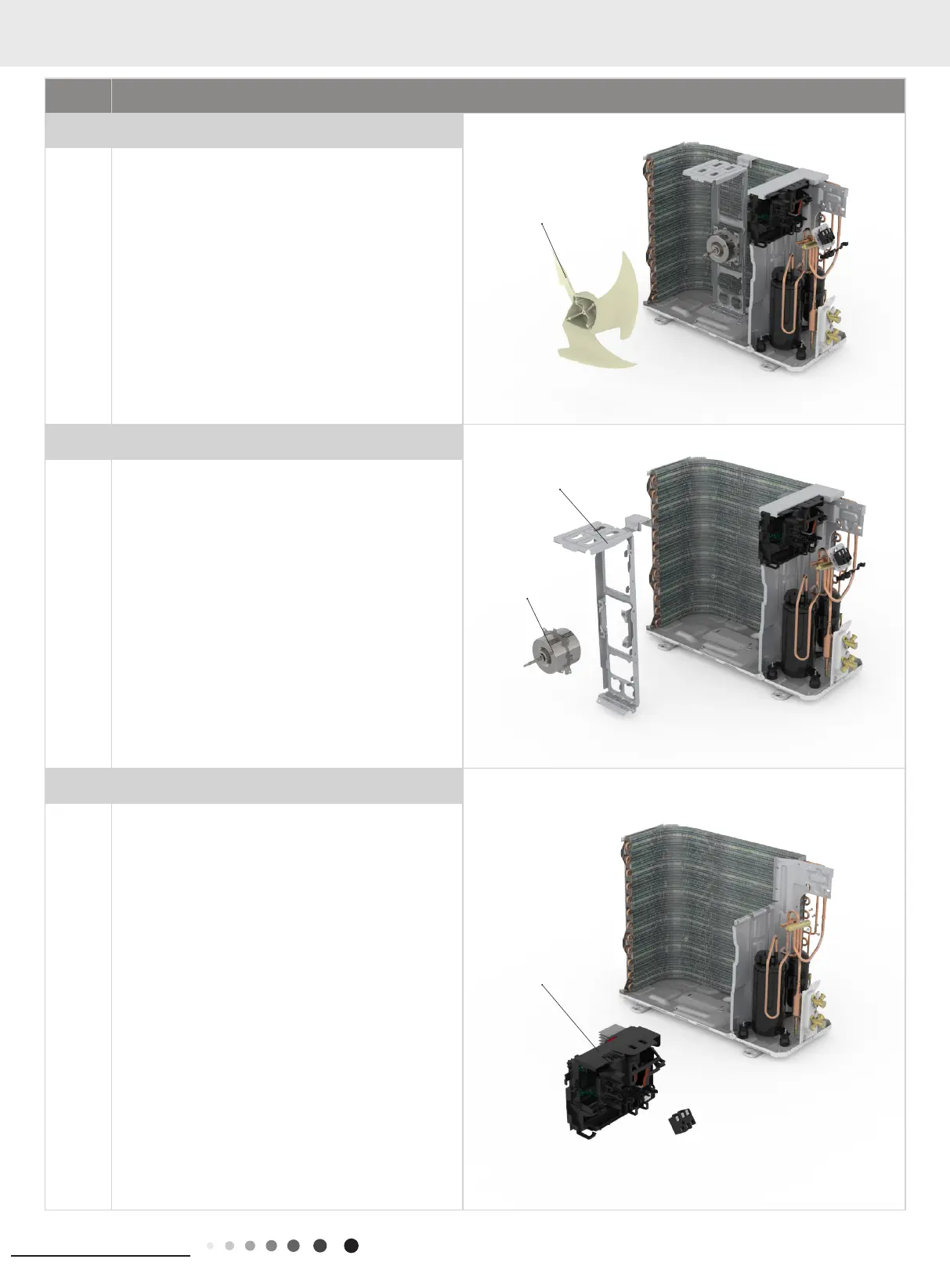

7. Remove axial ow blade
Remove the nut on the blade and then remove the axial
ow blade.
8. Remove motor and motor support
Rem
ove the tapping screws fixing the motor and
disconnect the leading wire insert of the motor. Then
remove the motor.
Remove the tapping screws fixing the motor support
and lift the motor support to remove it.
9. Remove Electric Box
Assy
Remove screws f
ixing the electric box subassembly;
loosen the wire bundle and unplug the wiring terminals.
Then lift the electric box to remove it.
axial ow blade
motor support
motor
Electric
Box Assy
