2 Dimensions
2.1 Unit Dimensions
SDV5-71DHA / SDV5-80DHA / SDV5-90DHA / SDV5-112DHA

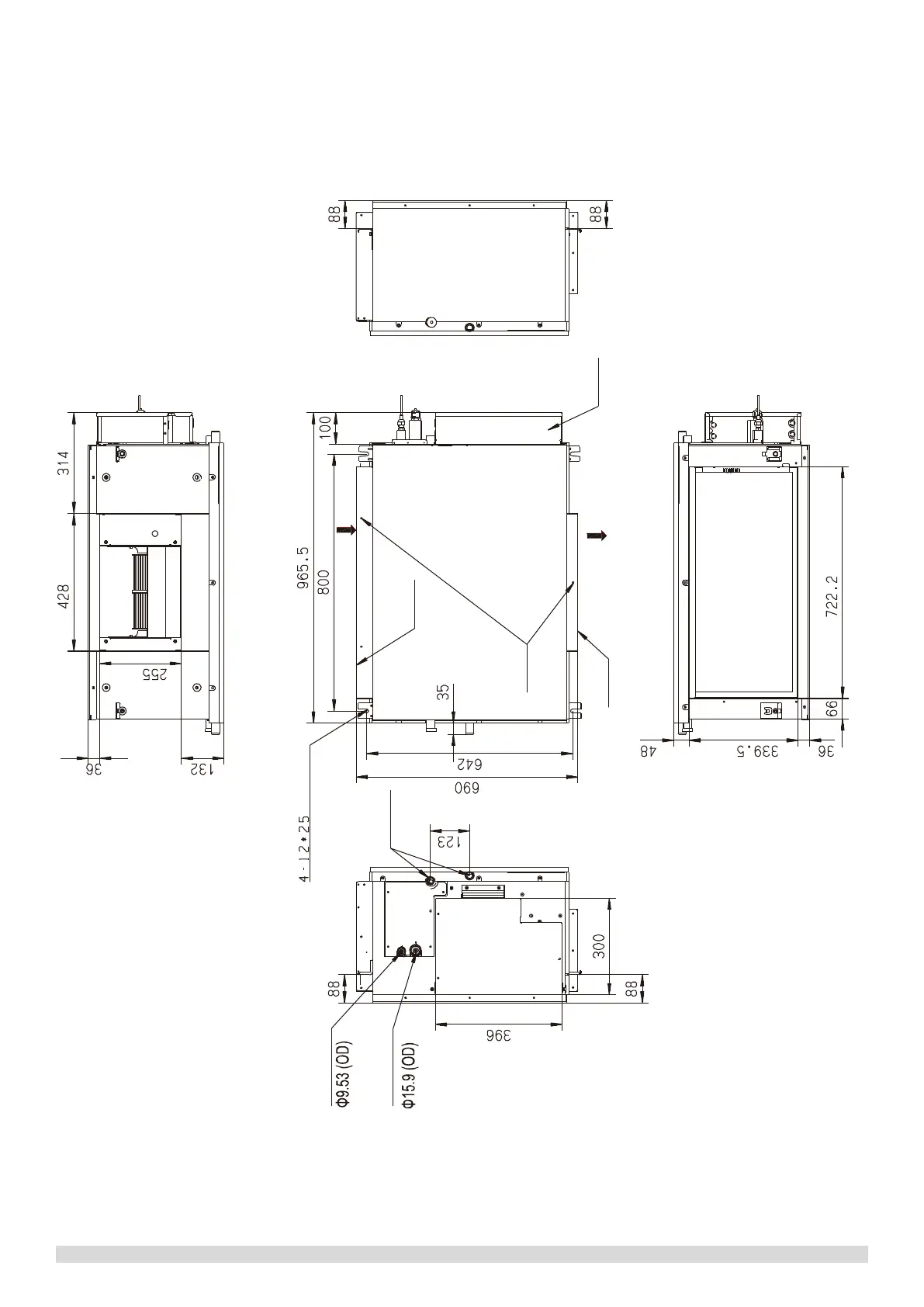

Figure 2.1: SDV5-71,80,90,112DHA dimensions (unit: mm)
(L)
Size of ReturnAir Inlet
(L)
(W)
Refrigerant piping (gas side)
Refrigerant piping (liquid side)
Position of lifting bolt
Connection for water discharge piping
Flange connection hole
Return Air Inlet Flange
Return Air Inlet Flange
Electric control box assembly
Return Air Inlet
Air Outlet
Size of Air Outlet
(W)
