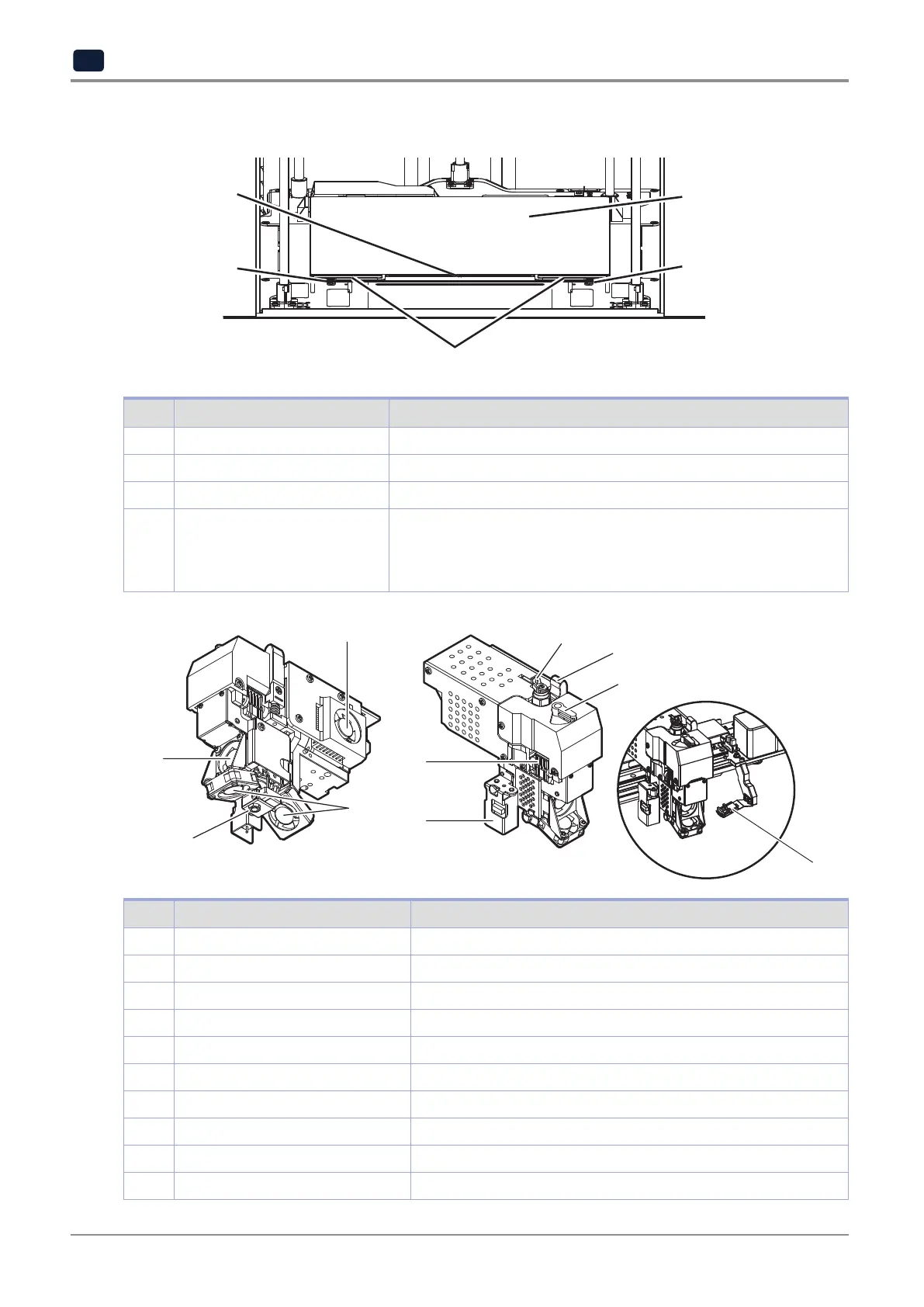

Preparations for Machine Operation
1-6
1
<Interior>
3
1
2
1
4
No. Part Name Description
1 Bed height adjustment Knob Used to level the Flexible bed.
2 Removable bed handle Used to assemble and dismantle Flexible bed
3 Bed heater Heats the printables' bottom surface to stabilize it on the bed.
4 Flexible bed (bed sheet) Seating space for printable. It has both sides of A and B.
- Side A is a general purpose sheet for various materials.
- Side B is recommended for printing materials which requires high
temperature of the bed, such as ABS etc.
3
<Nozzle>
8
1
2
4
9
7
6
5
10
No. Part Name Description
1 Fan 1 Used to cool down models
2 Fan 2 Used to cool down the heat sink of the nozzle part
3 Fan 3 Used to cool down the nozzle motor
4 Nozzle Used to print.
5 Sensor Used to level the bed
6 Nozzle mount hook Used to mount and fix the nozzle
7 Nozzle fixing handle Used to fix the nozzle
8 Nozzle drive pressurization handle Pressurizing handle to drive the filament
9 Depressurization handle lever Used to depressurize the nozzle drive pressurization handle
10 Nozzle cleaning pads These are used for removing foreign matters from the nozzle.
