Sinee A90-2T4R8B - Chapter 3 Wiring; 3.1 Connection of Peripheral Device

User Manual of A90 Series Inverter
27
Chapter 3 Wiring
3.1 Connection of Peripheral Device
The standard connection between the A90 series inverter and peripheral devices is
shown in Fig. 3-1.

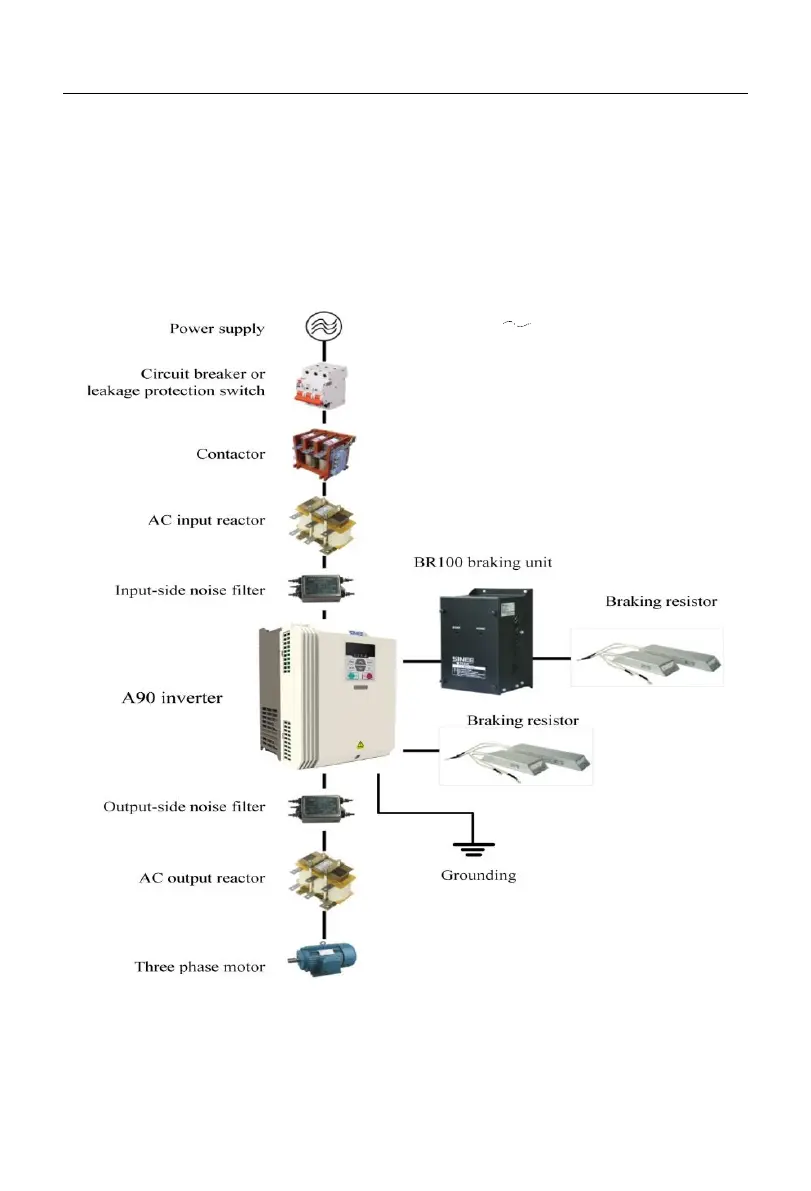

Fig. 3-1 Connection of Inverter and Peripheral Devices
