User Manual of EM730/EM730E Series Inverter
27
3.2 Wiring of Main Circuit Terminal
3.2.1 Composition of main circuit terminal
The main circuit terminal of the EM730/EM730E series inverter consists of the following
parts:

Three-phase AC power input terminals: R, S, T

Earth terminal:

DC bus terminals:
、

Terminals of dynamic braking resistor: PB,

Motor terminals: U, V, W

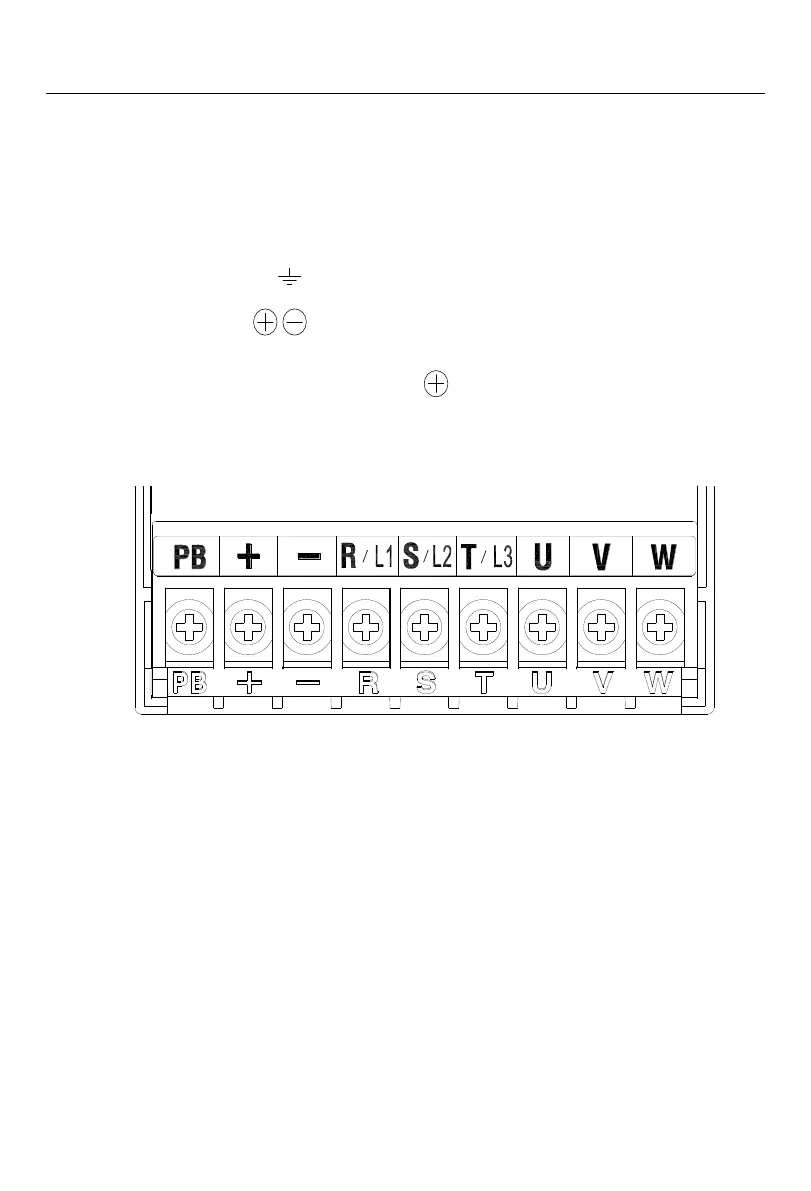

The layout of main circuit terminals is shown in Fig. 3-2.
a) Schematic Diagram of Terminals (380V, 0.75kW-1.5kW)
