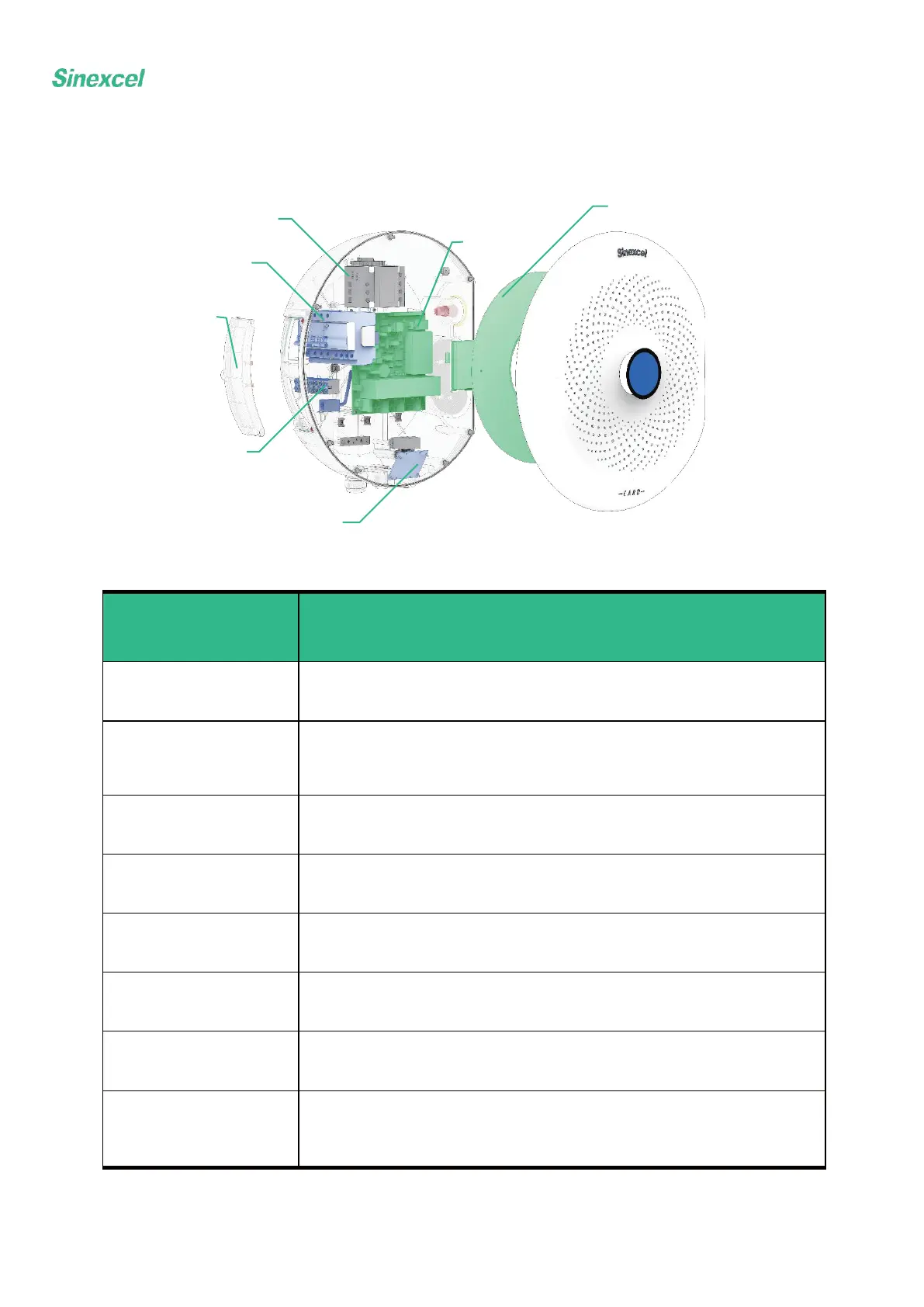

2.2.2 Overview of EVSE, inside

Smart meter(optional)

Circuitbreaker

Maintenance

cover

Mainboard

Light board

Terminal block

RFIDreader

Part

Function

Maintenance cover

For maintenance and operation of on&off

Circuit breaker

For short circuit protection, overload protection and leakage

protection

Smart meter

For metering

Mainboard

To control the EVSE

RFID reader

To start or stop charging session with the RFID card

Light board

To show the operation status of EVSE

Terminal block

To connect the cable of alternating current input from grid

Display

To show the operation status and parameter of EVSE
