Singer 191D-30 - Knee Lifter Height Adjustment; Presser Foot Lifter Adjustment

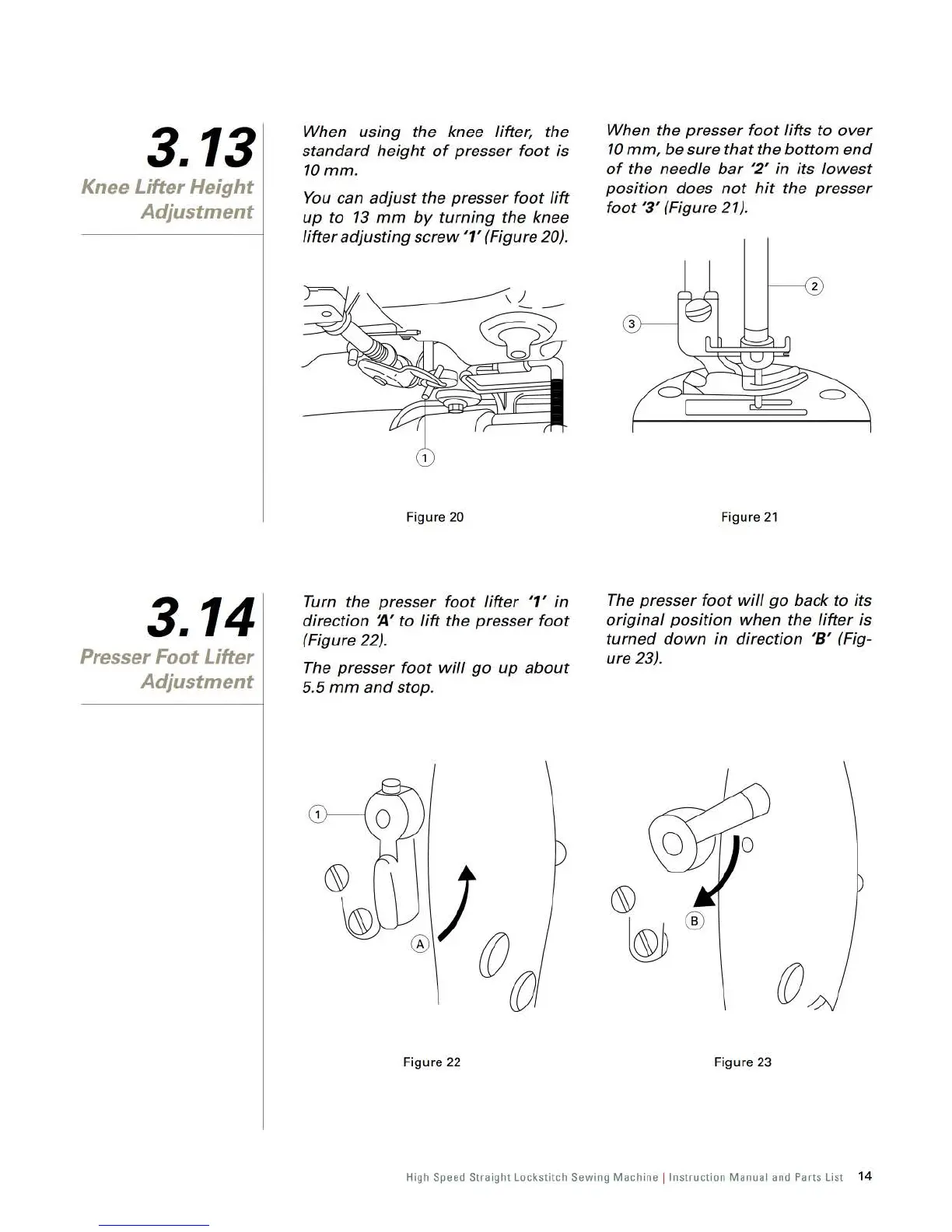

3.13
Knee Lifter Height
Adjustment
3.14
Presser Foot Lifter
Adjustment
When using the knee lifter, the
standard height of presser foot is
10mm.
You can adjust the presser foot lift
up to 13 mm by turning the knee
lifter adjusting screw '1' (Figure 20).
Fi gure 20
Turn the presser foot lifter '1' in
direction ~~ to lift the presser foot
(Figure 22).
The presser
foot will go up about
5.5 mm and stop.
Figure 22
When the presser foot lifts to over
10 mm, be sure that the bottom end
of the needle bar '2' in its lowest
position does not hit the presser
foot '3' (Figure 21 ).
Fi gure 21
The presser foot will go back to its
original position when the lifter is
turned down in direction '8' (Fig-
ure 23).
Figure 23
High Speed Straight Lockstitch Sewing Machine ! Instruction Manual and Parts List 14
