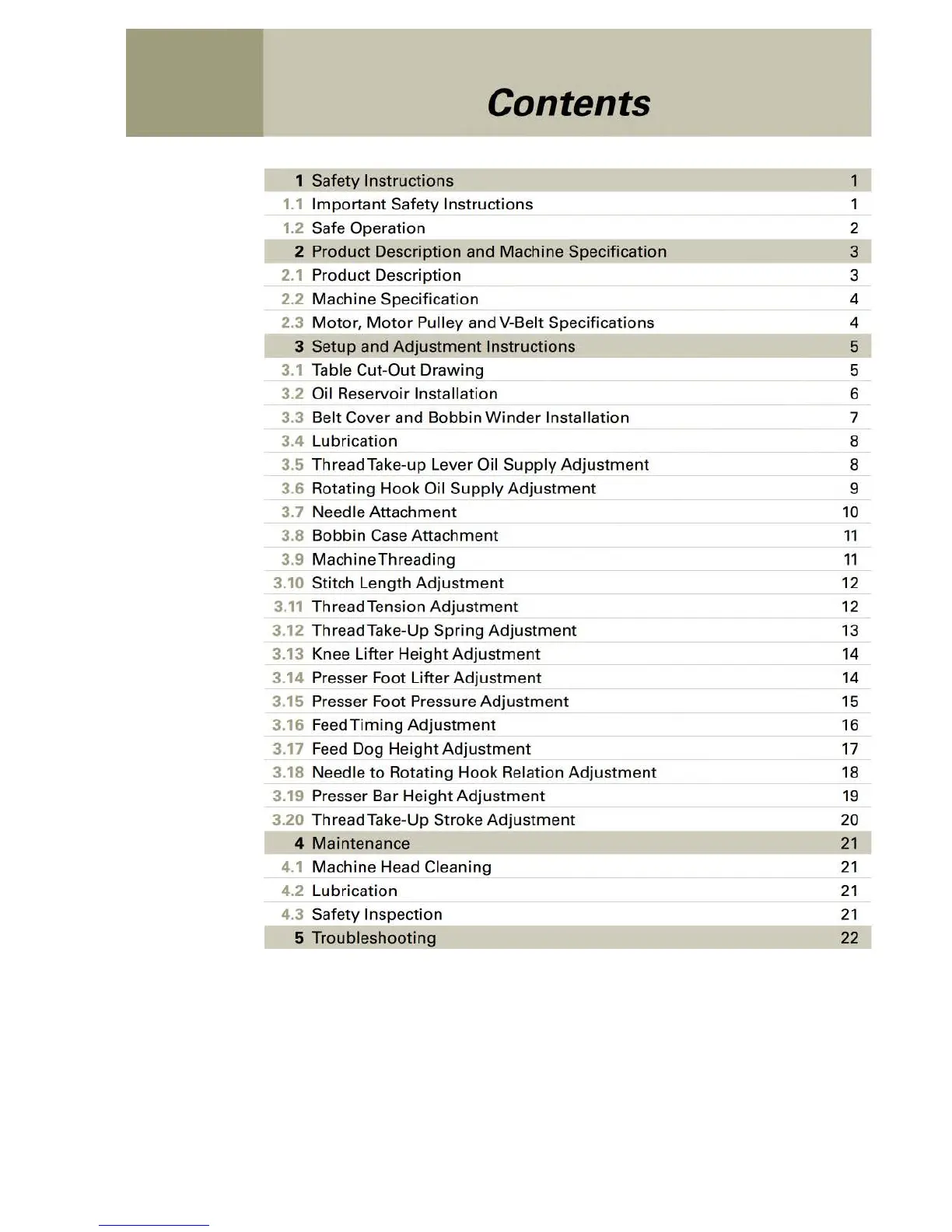

Singer 191D-30 - Default Chapter; Table of Contents

Contents
1 Safety Instructions
1.1 Important Safety Instructions
1.2 Safe Operation
2 Product Description and Machine Specification
2.1 Product Description
2.2 Machine Specification
2.3
Motor, Motor Pulley and V-Belt Specifications
3
Setup and Adjustment Instructions
3.1 Table Cut- Out Drawing
3.2 Oil Reservoir Installation
3.3 Belt Cover and Bobbin Winder Installation
3.4 Lubrication
3.5 Thread Take-up Lever
Oil Supply Adjustment
3.6 Rotating Hook Oil Supply Adjustment
3.7 Needle Attachment
3.8 Bobbin Case Attachment
3.9 Machine Threading
3.10 Stitch Length Adjustment
3.11 Thread Tension Adjustment
3.12 ThreadTake-Up Spring Adjustment
3.13 Knee Lifter Height Adjustment
3.14 Presser Foot Lifter Adjustment
3.15 Presser Foot Pressure Adjustment
3.16 FeedTiming Adjustment
3.17 Feed Dog Height Adjustment
3.18 Needle to Rotating Hook Relation Adjustment
3.19 Presser Bar Height Adjustment
3.20 Thread Take- Up Stroke Adjustment
4 Maintenance
4.1 Machine Head Cleaning
4.2 Lubrication
4.3
Safety Inspection
5 Troubleshooting
1
1
2
3
3
4
4
5
5
6
7
8
8
9
10
11
11
12
12
13
14
14
15
16
17
18
19
20
21
21
21
21
22
From the library of: Superior Sewing Machine & Supply LLC
