Singer 191D-30 - Needle to Rotating Hook Relation Adjustment

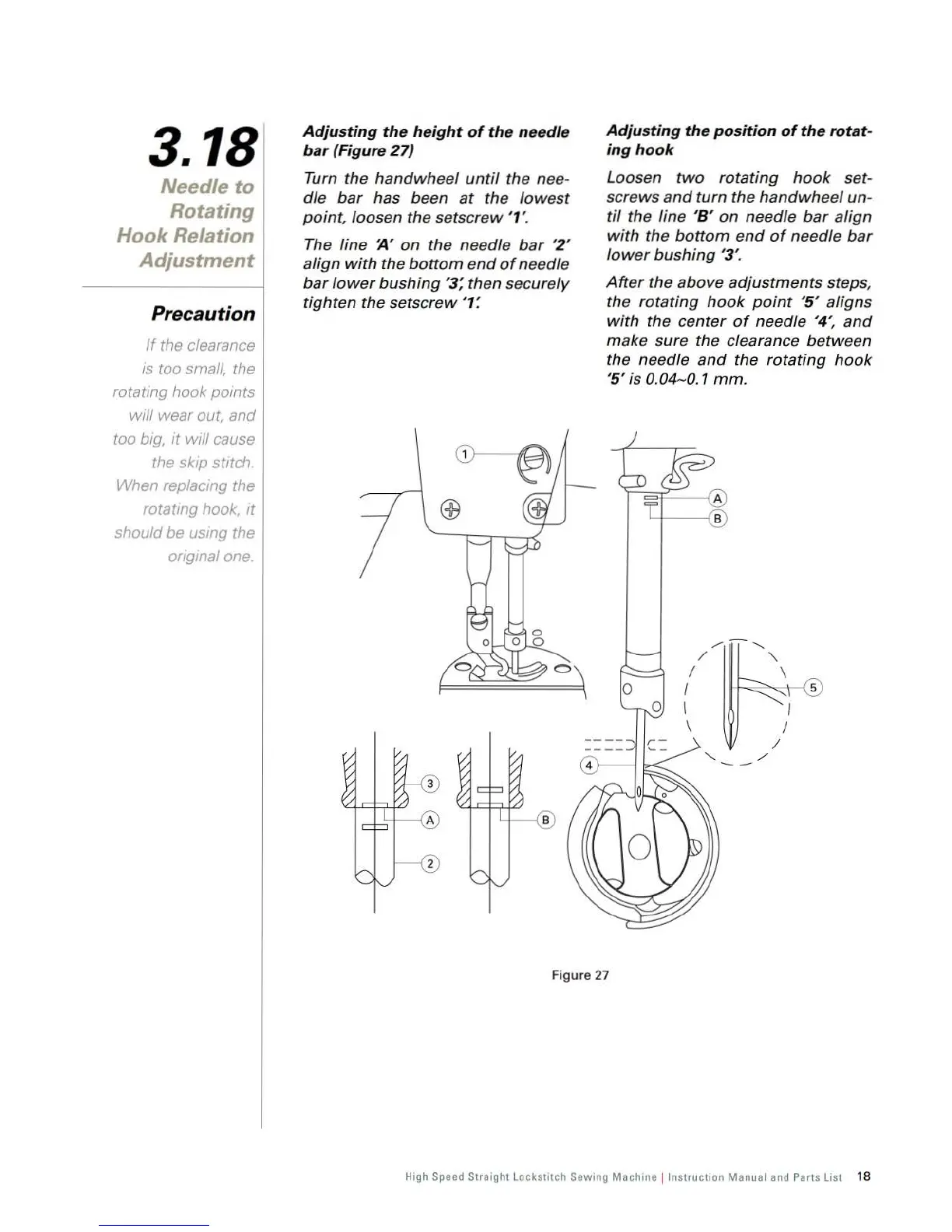

3.18
Needle to
Rotating
Hook Relation
Adjustment
Precaution
If the clearance
is too small, the
rotating hook points
will wear out, and
too big, it will cause
the skip stitch
When replacing the
rotating hook, it
should be usmg the
origmal one.
Adjusting the height of the needle
bar (Figure 27)
Turn the handwheel unt il the ne e-
dle bar has been at the lowest
point , loosen the setscrew '1'.
The line ~ , on the needle bar '2'
align with the bottom end of needle
bar lower bushing '3; then securely
tighten the setscrew '1:
Adjusting the position of the rotat-
ing hook
Loosen two rotating hook set -
screws and turn the handwheel un -
til the line '8 ' on needle bar align
wi th the bottom end of needle bar
lower bushing '3 '.
After the above adjustments steps ,
the rotating hook point '5' aligns
with the center of needle '4', and
make sure the clearance between
the needle and th e ro tat ing hook
'5' is 0.04- 0. 1 mm.
F igure 27
High Speed Straight Lockstitch Sewi ng Machine ! Instruction Manual and Parts List 18
