Singer 191D-30 - Presser Bar Height Adjustment

3.19
Presser
Bar Height
Adjustment

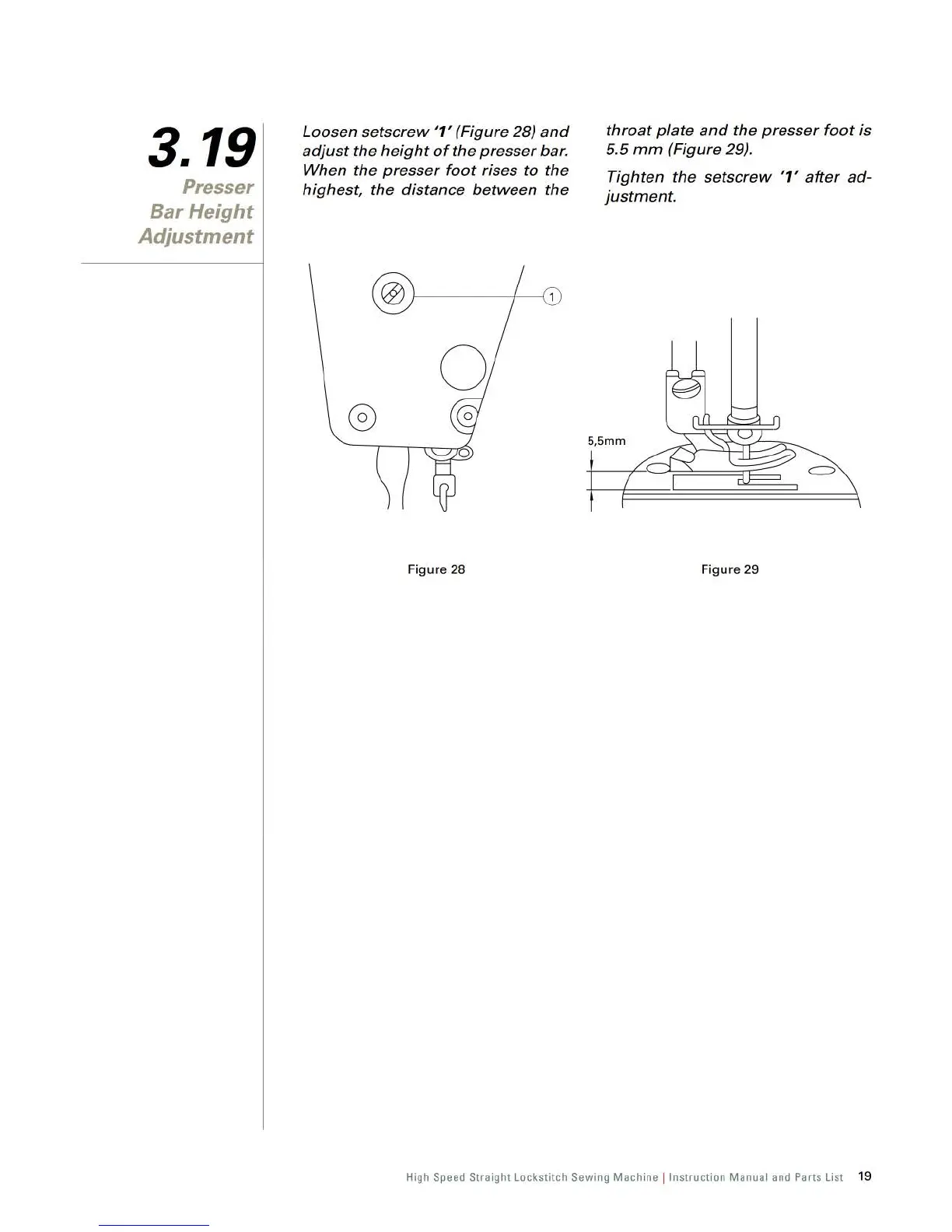

Loosen setscrew '1' (Figure 28) and
adjust the height of the presser bar .
When the presser
foot rises to the
highest, the distance
between the
Figure 28
throat plate and the presser foot is
5.5
mm (Figure 29).
Tighten the
setscrew '1' after ad-
justment.
Figure 29
High Speed Straight Lockstitch Sewing Machine ! Instruction Manual and Parts List 19
