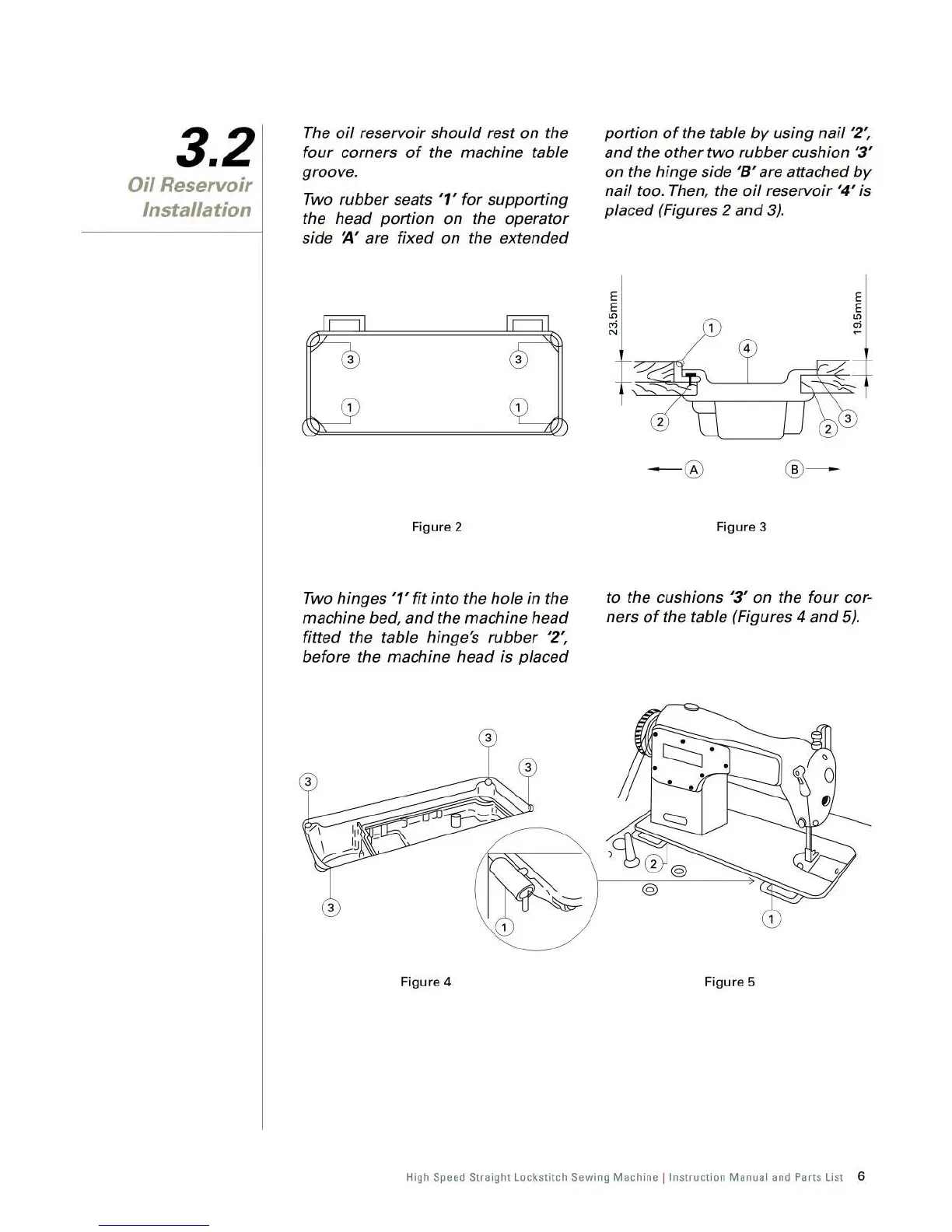

Singer 191D-30 - Oil Reservoir Installation

3.2
Oil Reservoir
Installation
The oil reservoir should rest on the
four corners of the machine table
groove.
Two rubber seats '1' for supporting
the head portion on the operator
side
~~ are fixed on the extended
portion
of the table by using nail '2',
and the
other two rubber cushion '3'
on the hinge side '8' are attached by
nail too. Then, the oil reservoir '4' is
placed (Figures 2
and 3).
- ® ®-
Figure 2 Figure 3
Two hinges '1' fit into the hole in the
machine bed,
and the machine head
fitted the table hinge's
rubber '2',
before the machine head is placed
Figure 4
to the cushions '3' on the four cor-
ners
of the table (Figures 4 and 5).
Figure 5
High Speed Straight Lockstitch Sewing Machine ! Instruction Manual and Parts List 6
