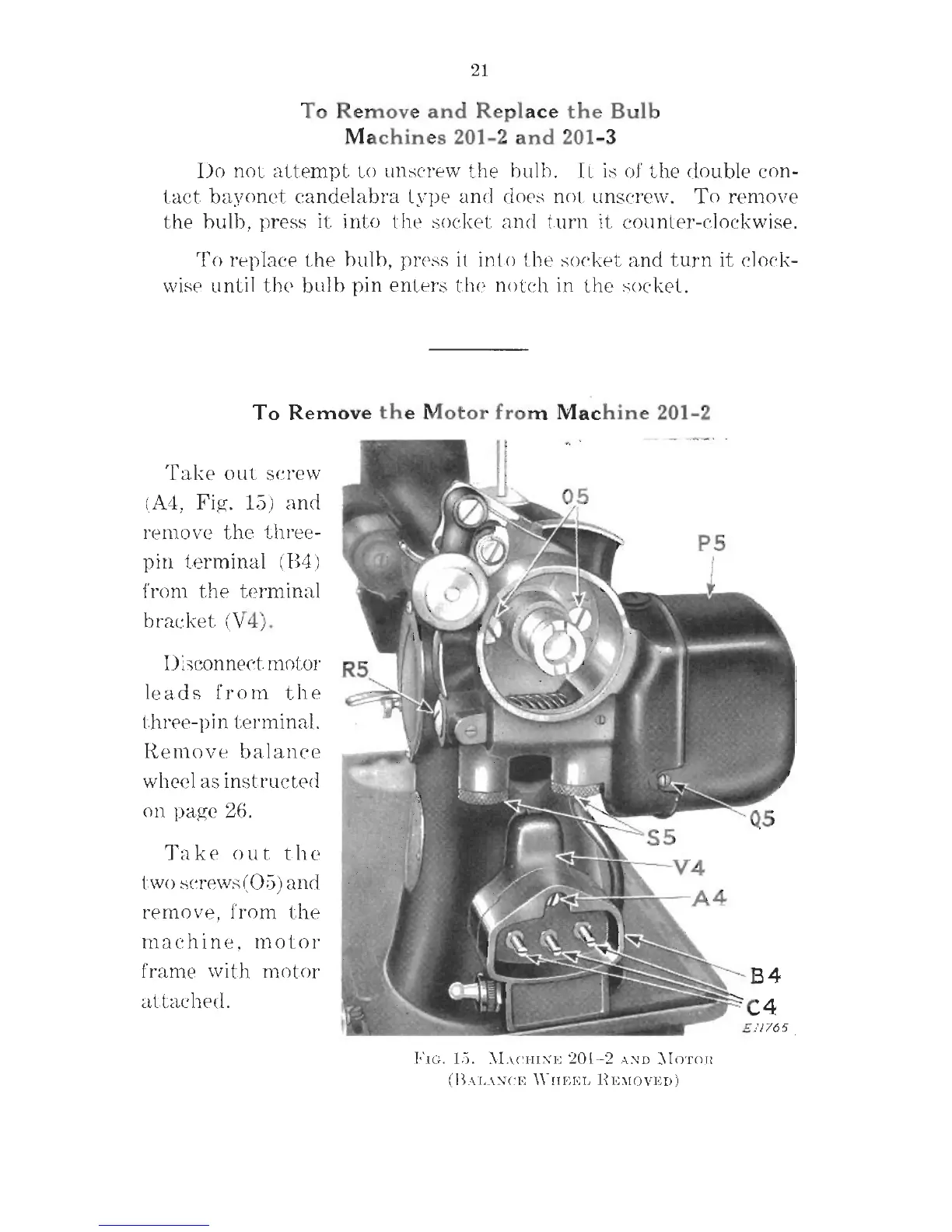

Singer 201-1 - Bulb and Motor Removal Procedures; Replacing the Sewing Machine Bulb; Removing the Motor from Machine 201-2

72 pages

Save Page as PDF

To Next Page

To Previous Page

Main Page

Index4
Descriptions6
Motors for Machines 201-2 and 201-36
Singer P.H. Motors for Machine 201-27
Singer B.R. Motors for Machine 201-37
To Insure Correct Demonstration of Machine8
Electrical Connections for Machine 201-2 and 201-38
Machine 201-2, Singer P.H. Motor, Singerlight and Controller9
Motor Leads9
Singerlight Leads9
Controller Leads9
Machine 201-3, Singer B.R. Motor, Singerlight and Controller10
Instructions for Using the Bakelite Controller for Floor or Knee Operation with Cabinet 4811
When Used for Foot Control11
Bakelite Controller Arranged for Foot Control with Cabinet 48 - Illustration11
When Used for Knee Control12
Placing Bakelite Controller in Cabinet 48 for Knee Control - Illustration12
Bakelite Controller Arranged for Knee Control in Cabinet 48 - Illustration12
Causes of Trouble with Machines of Class 20113
Motor Causes of Trouble with Machines 201-2 and 201-313
Causes of Binding: Machines 201-2 and 201-314
To Inspect Electrical Connections15
Three-Pin Terminal15
Motor - Machine 201-216
Singerlight - Machine 201-216
Remove Singerlight Shade - Machine 201-216
Inspect Singerlight Connections - Machine 201-217
Reassemble the Singerlight - Machine 201-217
Replace Singerlight - Machine 201-217
To Remove Singerlight Leads from the Machine Arm Machine 201-218
View of the Stitch Indicator Plate Removed to Show the Position of Singerlight Leads in the Arm of Machine 201-219
To Replace the Singerlight Leads Machine 201-220
Replacing the Three-Pin Terminal - Machine 201-221
Three-Pin Terminal Plug (Machines 201-2 and 201-3)22
Electric Outle Plug (Machines 201-2 and 201-3)22
Singerlight Fails to Light (Machines 201-2 and 201-3)22
To Remove and Replace the Bulb (Machines 201-2 and 201-3)23
To Remove the Motor from Machine 201-223
To Disassemble the Motor of the Machine 201-224
To Reassemble the Motor of the Machine 201-225
Replacing the Field Core with Coils25
Replacing Armature - Machine 201-226
Attaching Motor and Three-Pin Terminal Machine 201-227
Replacing Brushes - Machine 201-227
To Lubricate the Motor - Machine 201-228
To Remove and Replace Balance Wheel - Machine 201-228
To Remove and Replace Balance Wheel Textolite Gear and Shock-Absorbing Spring (Machine 201-2)29
Balance Wheel Disassembled View (Machine 201-2)29
To Inspect Electrical Connections (Machine 201-3)30
Motor Three-Pin Terminal and Singerlight (Machine 201-3) View30
Three-Pin Terminal - Machine 201-331
Motor - Machine 201-331
Singerlight - Machine 201-331
Screw Connections of Singerlight (Machine 201-3) View31
To Remove the Motor from Machine 201-333
Do Disassemble the Motor (Machine 201-3)33
Removing Pulley33
Remove Pulley End Cover - Machine 201-334
Remove Brushes - Machine 201-334
Remove Armature - Machine 201-334
Inspecting and Cleaning the Armature - Machine 201-334
Remove Field Core Shield - Machine 201-335
Inspecting Wire Connections to Brush Tubes - Machine 201-335
Motor Pulley End Cover, Ommutator End Cover and Armature Removed View (Machine 201-3)35
To Reassemble the Motor (Machine 201-3)36
Replacing Commutator End Cover36
Replace Field Core Shields - Machine 201-336
Replace Armature - Machine 201-336
Replacing Pulley End Cover - Machine 201-337
Replace Brushes - Machine 201-337
Replace Pulley - Machine 201-337
Attach Motor, Singerlight and Three-Pin Terminal to Machine 201-338
Adjust Belt Tension - Machine 201-338
To Lubricate the Motor - Machine 201-338
Singer Bakelite Carbon Controller (Machines 201-2 and 201-3)39
To Inspect the Carbon Resistance Unit of the Controllers39
Teadle Controller39
Convertible Foot and Knee Controller39
Motor Fails to Operate at All Speeds40
Emergency Adjustment of Carbon Resistance Unit40
Motor Fails to Stop41
Bakelite Treadle Controller - Cover Removed View41
Bakelite Convertible Foot and Knee Controller Cover Removed View41
Replace the Cover - Treadle Controller42
Inside View of Bakelite Treadle Controller Cover42
Replace the Cover - Convertible Foot and Knee Controller43
Inside View of Cover of Bakelite Convertible: Foot and Knee Controller Snowing Pedal Disengaged from Cover43
To Remove and Replace the Rotating Hook Bobbin Case44
To Remove and Replace the Feed Dog44
To Remove and Replace the Rotating Hook Bobbin Case Position Plate45
To Remove and Replace the Rotating Hook45
To Time the Rotating Hook46
Correct Adjustment of Timing Gauge View46
Needle Bar and Rotating Hook Correctly Timed View46
Removing Rotating Hook Shaft Bevel Gear Cover47
Setting Rotating Hook Driving Shaft Front Bevel Gear to Time Rotating Hook47
To Set the Needle Bar at the Correct Height48
To Remove and Replace the Rotating Hook Shaft and Rotating Hook Shaft Bevel Gear48
To Remove and Replace Rotating Hook Driving Shaft and Rotating Hook Driving Shaft Bevel Gears49
Rotating Hook Shaft and Gear (Removed and Disassembled) View49
Removing Rotating Hook Driving Shaft Bevel Gear Back Cover50
To Remove Rotating Hook Driving Shaft and Rotating Hook Driving Shaft Back Bevel Gear50
To Raise or Lower the Feed Dog52
To Adjust the Position of the Feed Dog Lengthwise in the Feed Dog Slots in the Throat Plate52
Lengthwise Adjustment of Feed Dog52
To Adjust the Position of Feed Dog Centrally with Relation to the Sides of Throat Plate Slots53
Sidewise Adjustment of Feed Dog53
To Remove and Disassemble the Graduated Tension54
To Reassemble and Replace the Graduated Tension54
To Adjust the Bobbin Winder56
To Adjust the Presser Bar57
To Remove and Replace the Presser Bar57
To Remove and Replace the Needle Bar58
To Remove Needle Bar and Presser Bar58
Needle Bar Removed and Disassembled View58
To Remove and Replace the Feed Connecting Rod59
To Remove Feed Connecting Rod60
Feed Connecting Rod Removed - Upper End View60
To Detach Lower End of Feed Connecting Rod60
To Remove and Replace the Feed Forked Connection and the Feed Regulator61
To Remove Feed Regulator61
Feed Forked Connection (Upper End) and Feed Regulator Removed from Machine - Illustration62
To Remove and Replace the Upright Arm Shaft and the Upright Arm Shaft Gears63
To Remove Upright Arm Shaft and Gears - Lower End View63
To Remove and Replace the Horizontal Arm Shaft Horizontal Arm Shaft Bushing Horizontal Arm Shaft Bevel Gear and Counterbalanced Feed Cam and Feed-Lift64
To Remove Horizontal Arm Shaft (New through Arm Side Cover Opening)65
Face Plate, Needle Bar and Presser Bar Removed from Machine - Illustration66
Thread Take-Up Lever Assemble and Needle Bar Link Removed from Machine - Illustration66
Horizontal Arm Shaft Removed Showing the Position of Needle Bar Grank, Bushing, Gear and Eccentrics on the Shaft67
To Oil the Machine69
View of Sewing Hook Showing Oiling Points69
End View Showing Oiling Points69
Oiling Points at the Back of the Machine (Arm Broken Away to Show Oil Hole) - Illustration70
Using Singer Lubricants for Your Sewing Machine71
