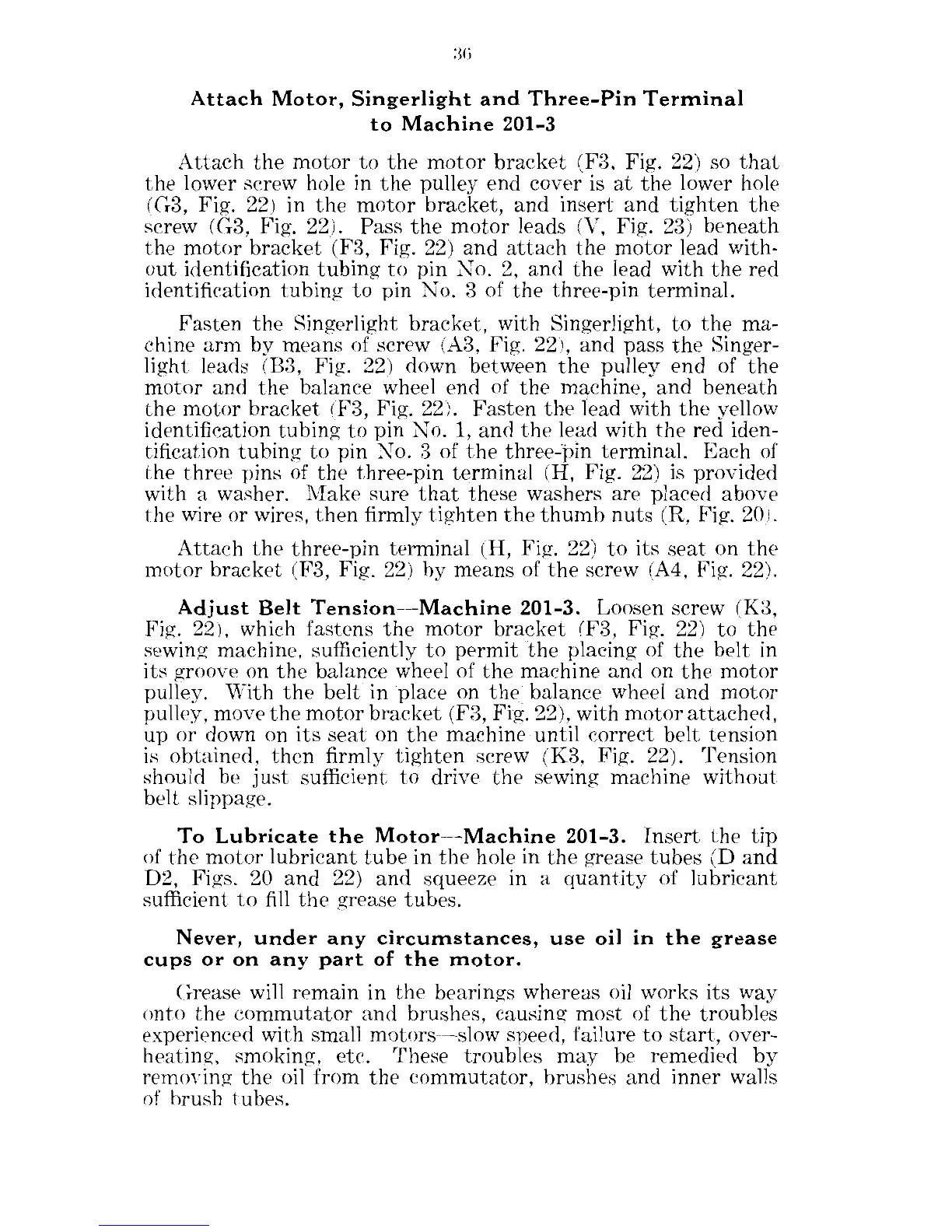

Singer 201-4 - Attach Motor, Singerlight and Three-Pin Terminal to Machine 201-3; Adjust Belt Tension - Machine 201-3; To Lubricate the Motor - Machine 201-3
