Singer 211G166 - Sewing Hook Removal; Complete Hook Removal Process

From the library of Superior Sewing Machine & Supply LLC - www.supsew.com
:::u::a.z.caw,Z.-
19

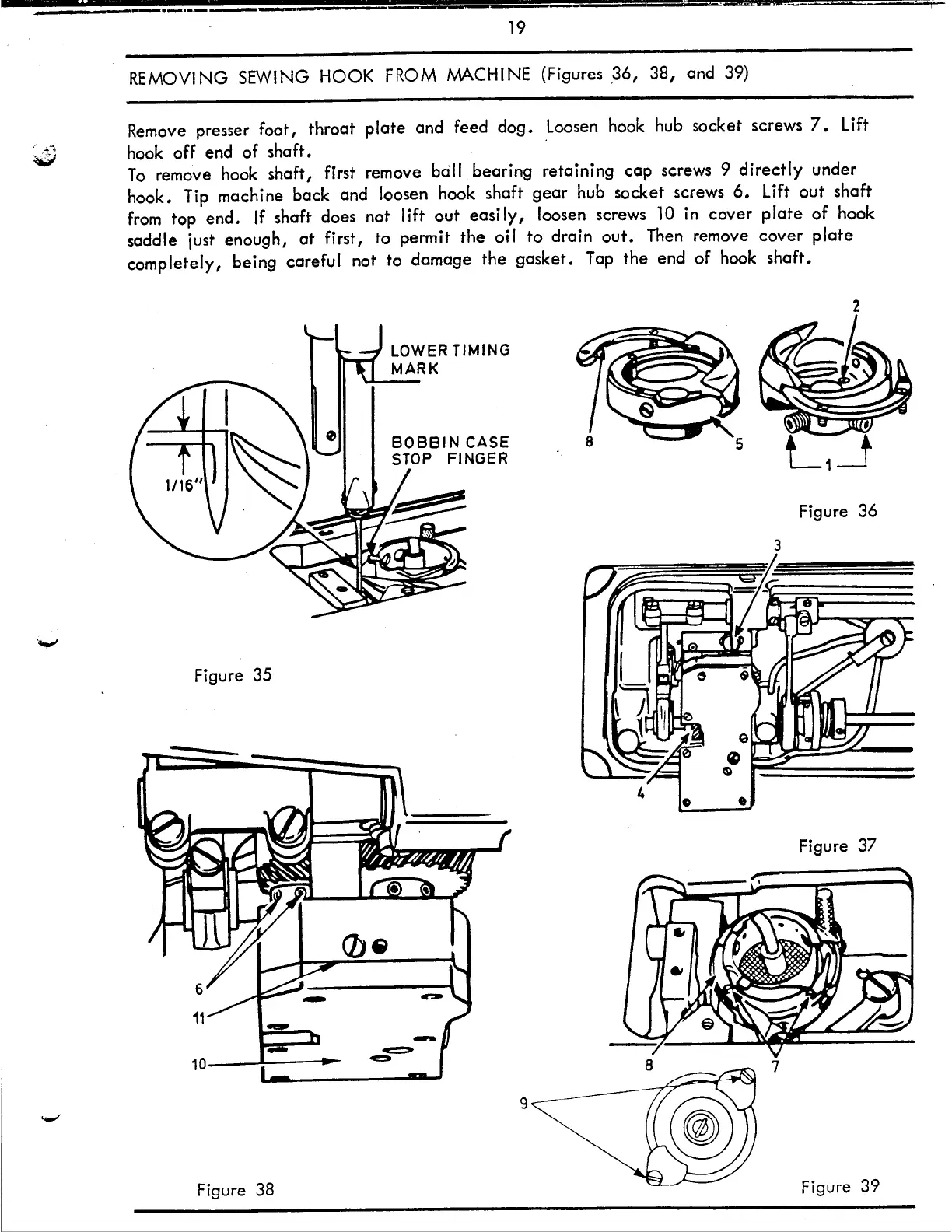

REMOVING SEWING HOOK FROM MACHINE (Figures
,36, 38,
ond 39)
Remove presser foot,
throat
plate
and feed
dog.
Loosen hook hub socket screws
7.
Lift
hook off end
of
shaft.
To
remove hook shaft, first remove bdl I
bearing
retaining
cap
screws 9
directly
under
hook. Tip machine
back
and loosen hook shaft
gear
hub socket screws
6.
Lift
out
shaft
from top
end.
If
shaft does not lift
out
easily,
loosen screws 10 in
cover
plate
of
hook
saddle just enough,
at
first, to permit
the
oil
to
drain
out.
Then remove
cover
plate
completely,
being careful not to
damage
the
gasket.
Tap
the
end
of
hook
shaft.
Figure 35
(b&
Figure
38
LOWER
TIMING
MARK
9
4
2
Figure
36
3
e
Figure 37
7
Figure 39
