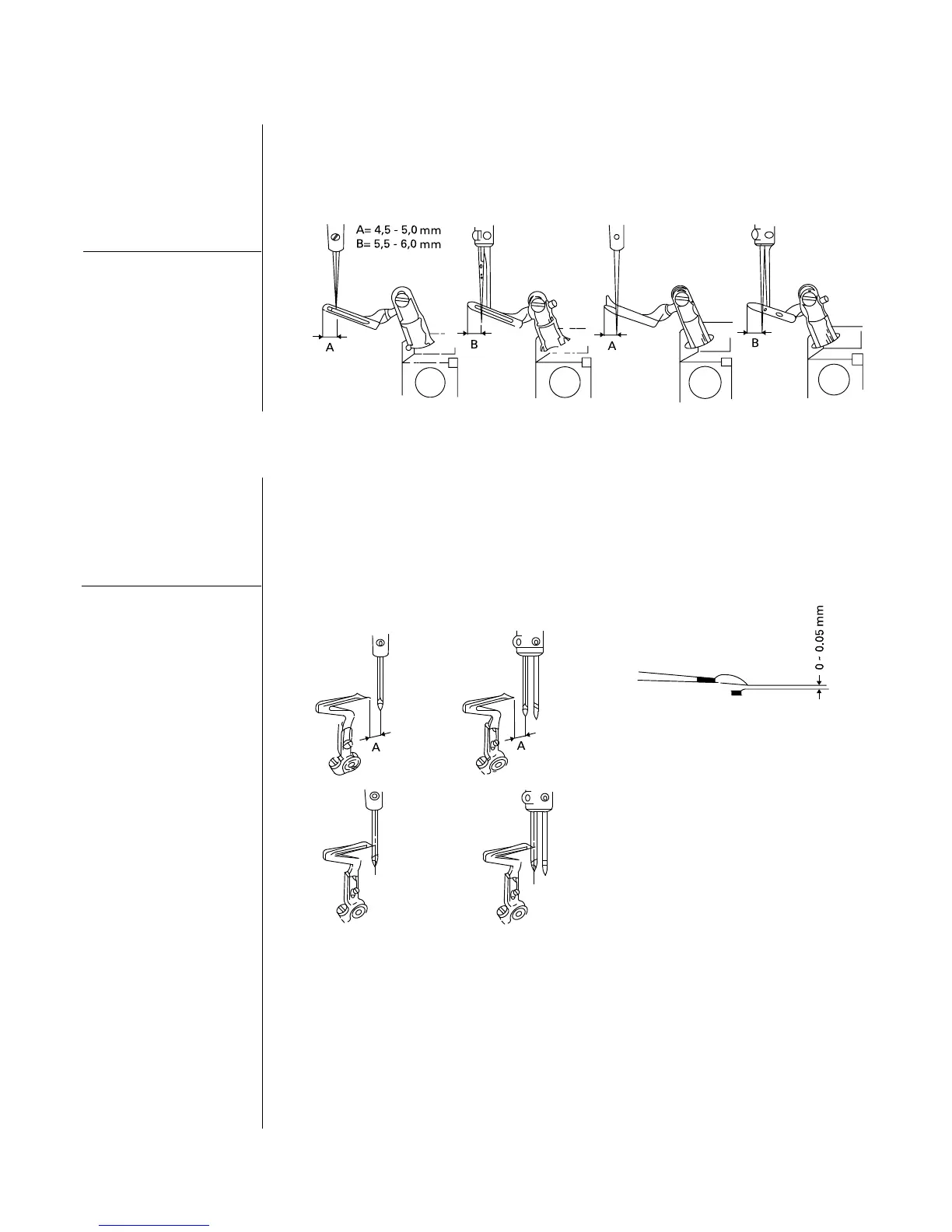

Figure 18
Figure 19
3.9.2
Upper Looper
(Spreader)
and Needle
Whentherightloopermovestothe
farleftend,distance‘A’ betweenthe
looper point and the center line of
theneedleis4.5to5.0mmforone
needle. For two needles, the dis-
tance‘B’ is5.5to6.0mmfromthe
leftneedle,asshownongure17.
3.9.3
Lower Looper
and Needle
When the lower looper moves to
the extremly left, the distance ‘A’
between looper point and center
line of the needle (left needle, if
twoneedles)isfrom3.4to3.6mm,
forhighliftmachines,asshownon
gure18.
When the lower looper moves to
the centerline of needle (left nee-
dle, if two needles), the gap be-
tweenneedleandlooperisfrom0
to0.05mm,asshownongure19.
