Singer 321C - Machine Installation

6
High Speed Overlock Machine | Instructions Manual and Parts List
Machine
Installation
3.2
Installthemachinesupportcompo-
nentsandtheresiduescamasindi-
catedongure2.Incaseofsemi-in-
sertedassemblythedistancefrom
theneedlebedsurfacetothetable
topis100mm.Forinsertedassem-
blythedistanceisabout5.0mm.

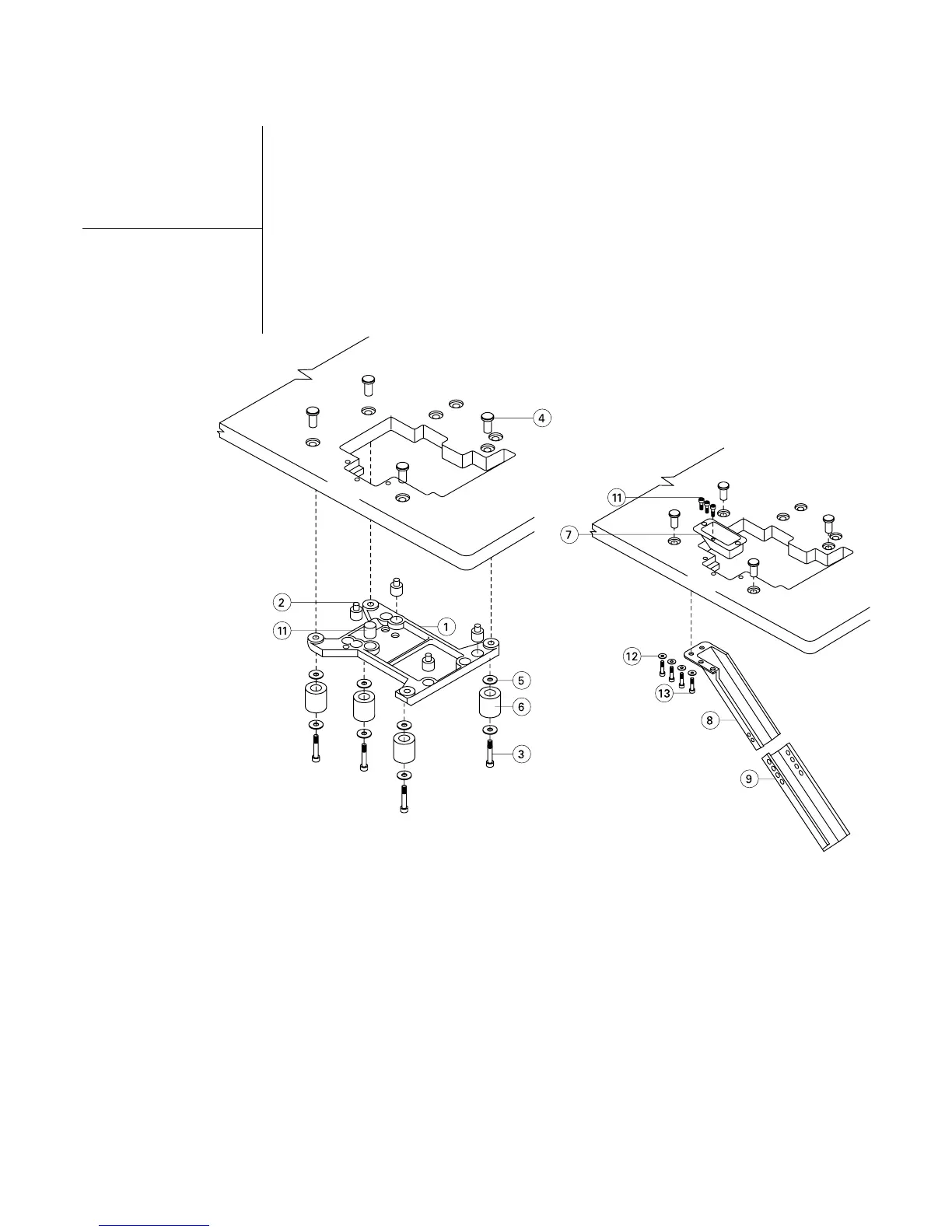

Figure 2
