Singer 4522 - Winding a Bobbin

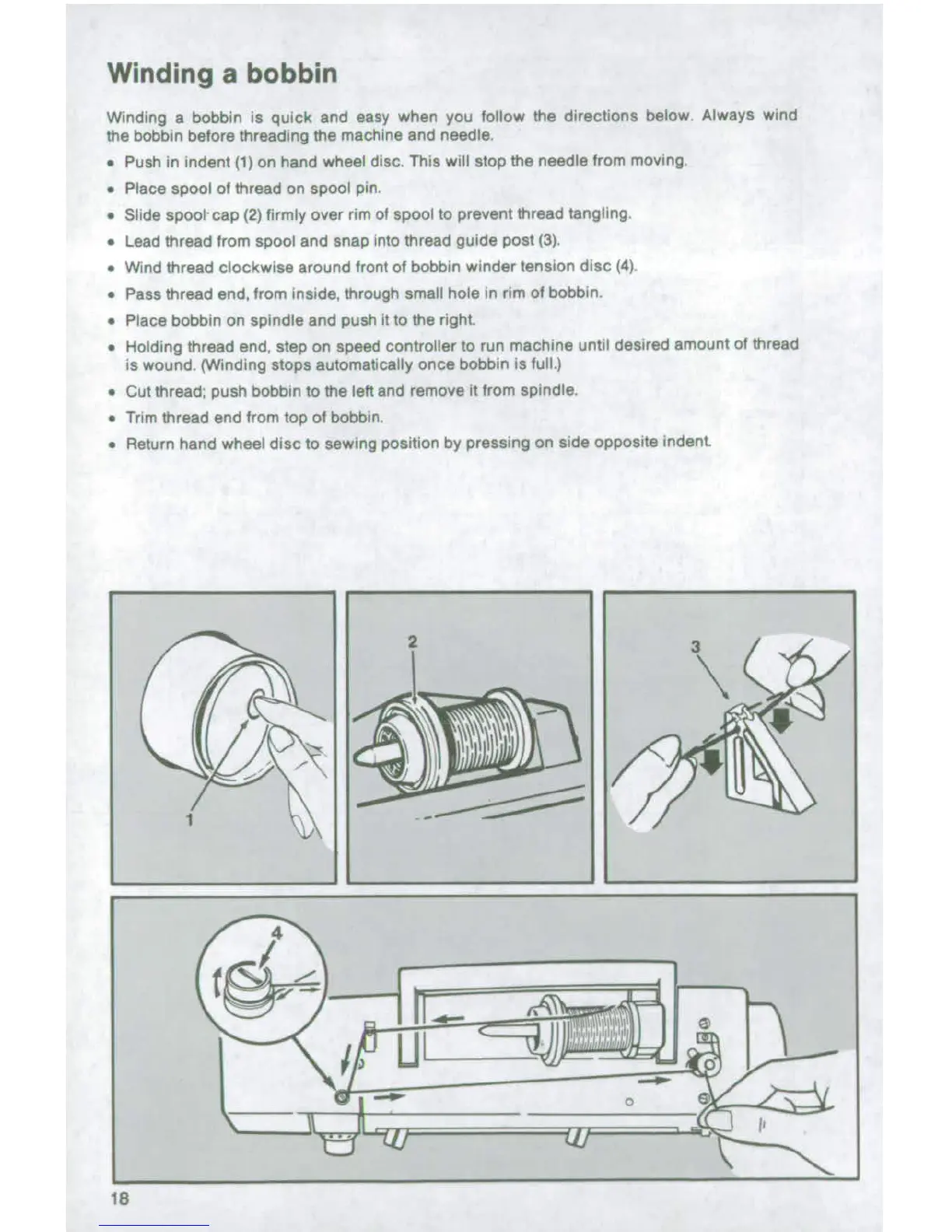

Winding a bobbin
Winding a bobbin
is quick and
easy when you
follow the directions
below. Always
wind
the bobbin before threading the
machine and needle.
. Push in indent (1)
on hand wheel disc. This
will stop the needle
from moving.
. Place spool of
thread on spool pin.
. Slide
spool- cap (2) firmly over
rim of spool to prevent thread
tangling.
. Lead
thread from spool and snap into thread guide post
(3).
. Wind thread
clockwise around front of
bobbin winder tension disc
(4).
. Pass thread
end, from Inside, through small
hole in rim of bobbin.
* Place bobbin on spindle
and push it to the right
. Holding thread end, step on speed controller
to run machine until desired amount of thread
is wound.
(Winding stops automatically once bobbin is
flul)
. Cut thread; push bobbin to the left and
remove it from spindle.
. Trim thread end from top of
bobbin.
. Return hand wheel
disc to sewing position by pressing
on side opposite indent.
