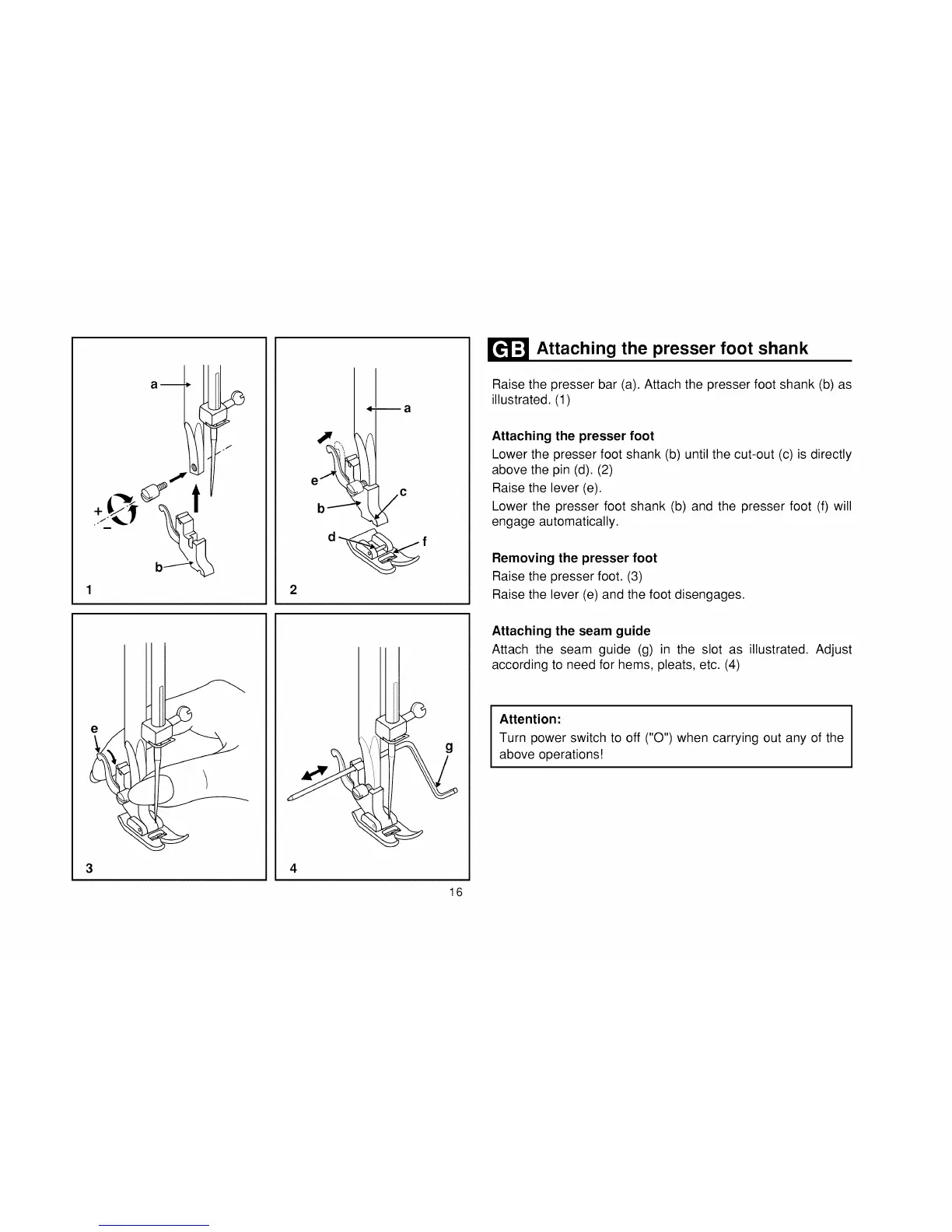

Attaching the presser foot shank
Raise the presser bar (a). Attach the presser foot shank (b) as
illustrated. (1)
Attaching the presser foot
Lower the presser foot shank (b) until the cut-out (c) is directly
above the pin (d). (2)
Raise the lever (e).
Lower the presser foot shank (b) and the presser foot (f) will
engage automatically.
Removing the presser foot
Raise the presser foot. (3)
Raise the lever (e) and the foot disengages.
Attaching the seam guide
Attach the seam guide (g) in the slot as illustrated. Adjust
according to need for hems, pleats, etc. (4)
Attention:
Turn power switch to off ("O") when carrying out any of the
above operations!
