Singer 7464 - Stitch Length Adjustment and Fine Tuning

- 23 -

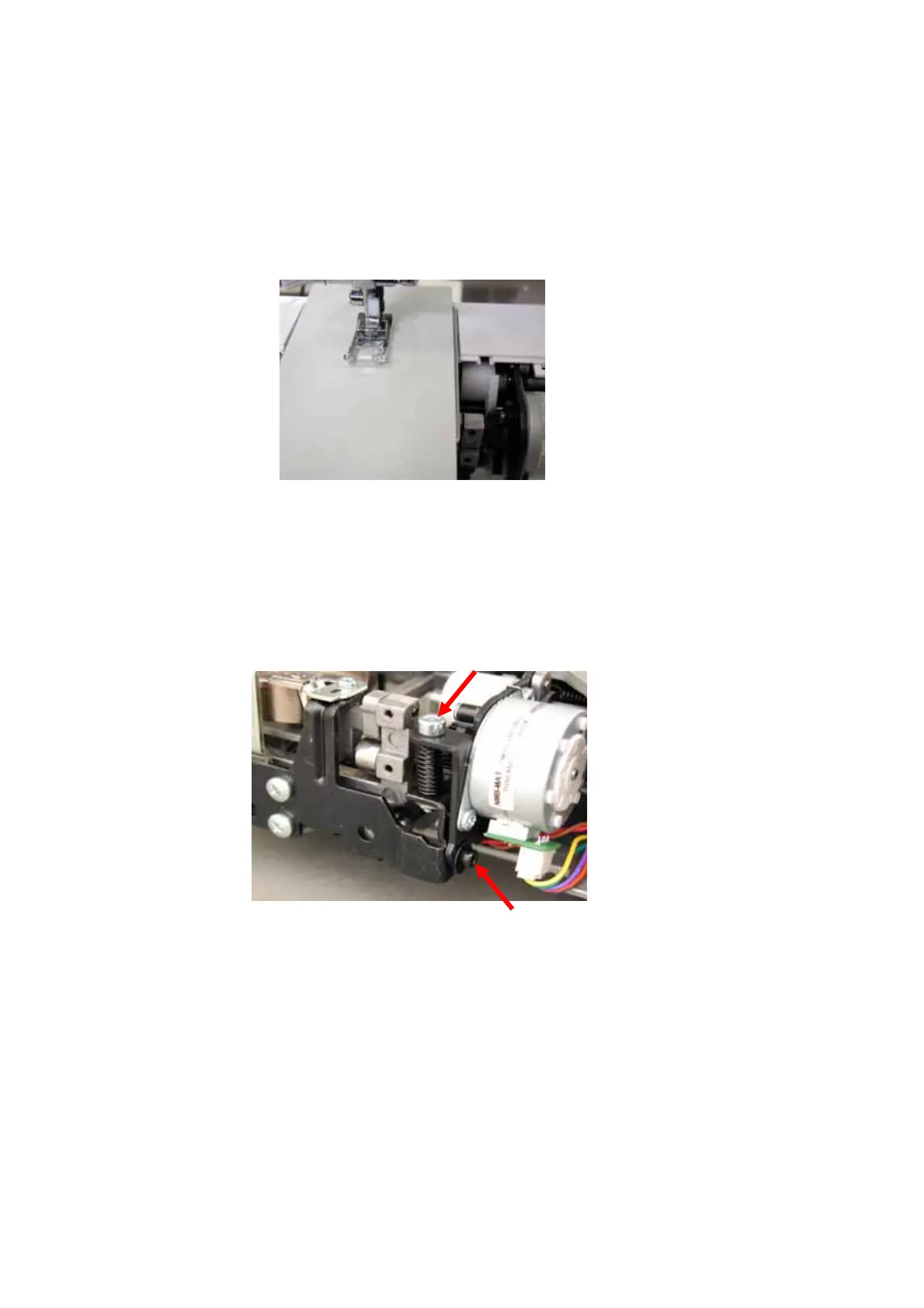

3. Set machine at test mode 2 [Zero feed］.
4. Loosen other screw on motor gear for adjustment.
5. Adjust by moving the motor gear in either direction with 1.5 mm hex driver running machine
with a little thick paper placed under presser foot.
<Fine adjustment mechanism is available for stitch length according to models>
Fineadjustmentisneededforallpatternsincludingbuttonholesonmodelswithmanystitch
patternsexceptmodel7422,7442and7462.Fineadjustmentmechanismisprovidedforthis
purposeinadditiontoadjustmentofmotorgearabove.  
Adjust as follows after adjusting motor gear:
1. Loosen fixing bolt on motor bracket using 2.5 mm hex driver.
2. Turn position adjusting bolt on motor bracket in either direction using 3.0 mm hex driver.
Note: If it is loosened counter-clockwise, make the bracket follow bolt
