- 30 -
Sec. 13 Electronic component area

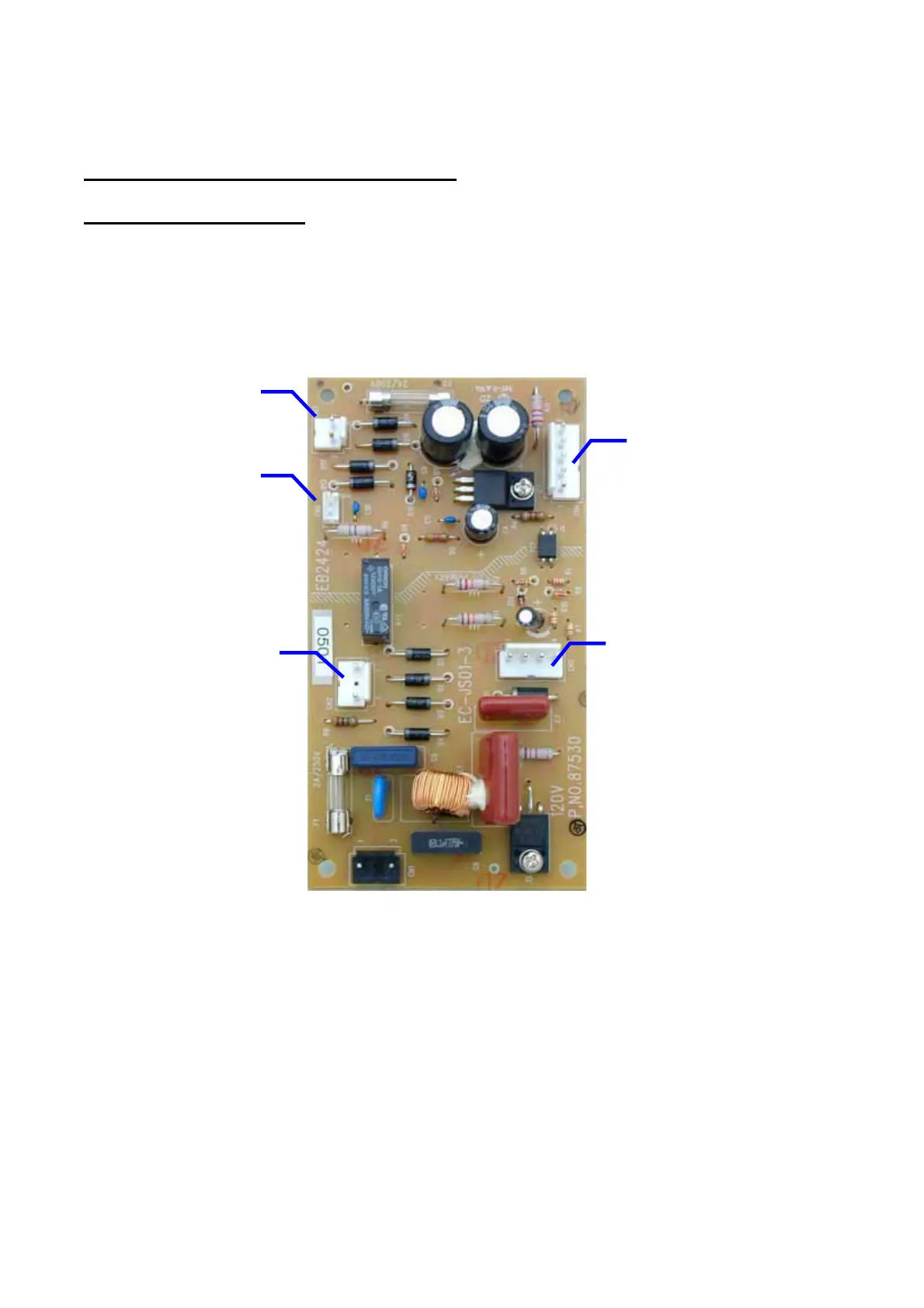

AC Power Board
Component number is 87530 for 120V spec. and 87553 for 230V spec.
Be sure to check number printed on board.
5P Connector cord
Connect with CPU
Transformer
Primary
LED lamp
harness
Transformer
Secondary
Main motor DC 120v
YM-45D
