10
To Replace the Bobbin Case
After threading, take the bobbin case by the latch and place
the bobbin case on the center stud (2,Fig.9) of the bobbin case

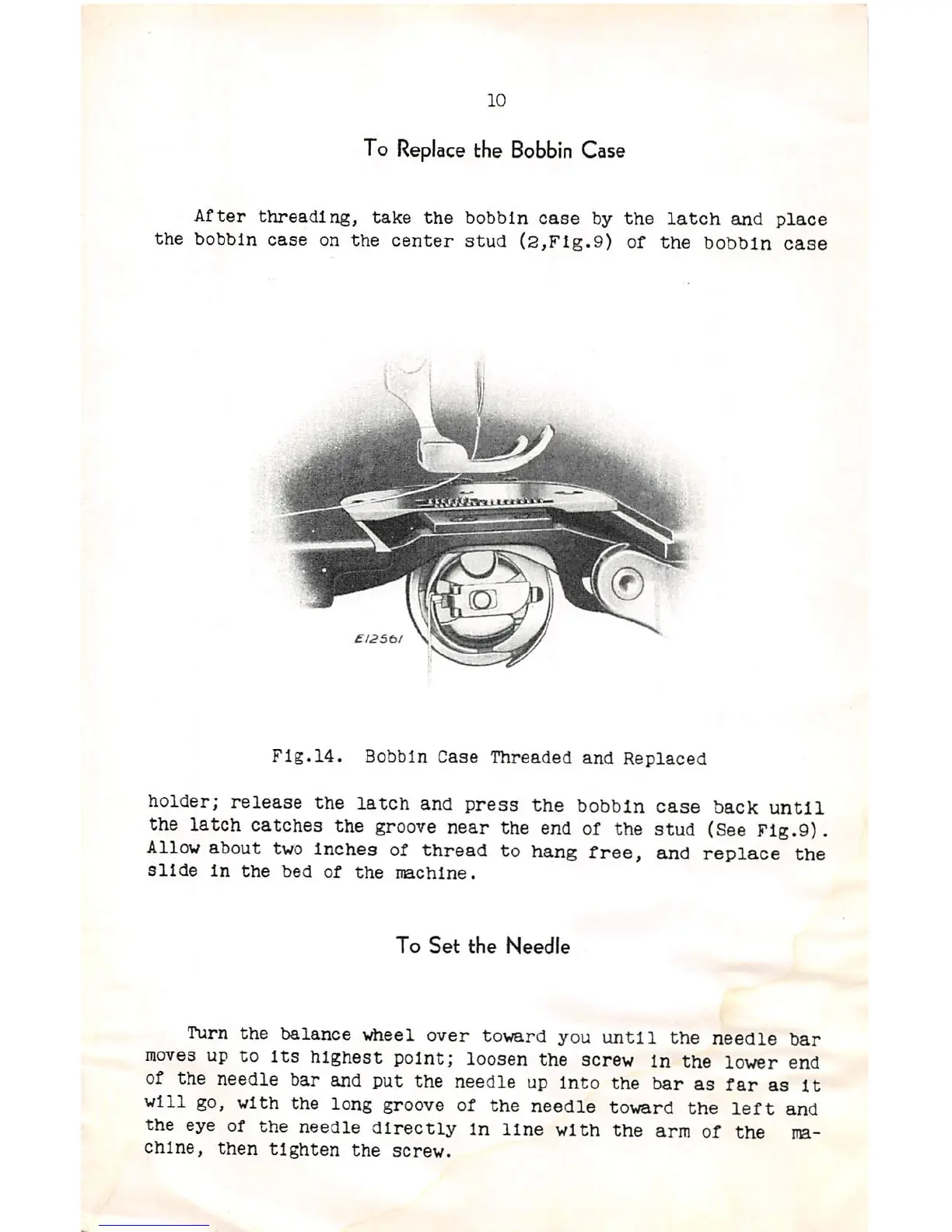

Fig.14. Bobbin Case Threaded and Replaced
holder; release the latch and press the bobbin case back until
the latch catches the groove near the end of the stud (See Fig.9).
Allow about two Inches of thread to hang free, and replace the
slide In the bed of the nachlne.
To Set the Needle
Turn the balance wheel over toward you until the needle bar
moves up to Its highest point; loosen the screw in the lower end
of the needle bar and put the needle up into the bar as far as it
will go, with the long groove of the needle toward the left and
the eye of the needle directly in line with the arm of the ma
chine, then tighten the screw.
