21
(y),
from
the
right
hand
end,
pushing
the
old
shaft
out
of
the
gear
tovard
the
needle
bar
by
means
of
the
new
shaft,
as
shown
E4631A

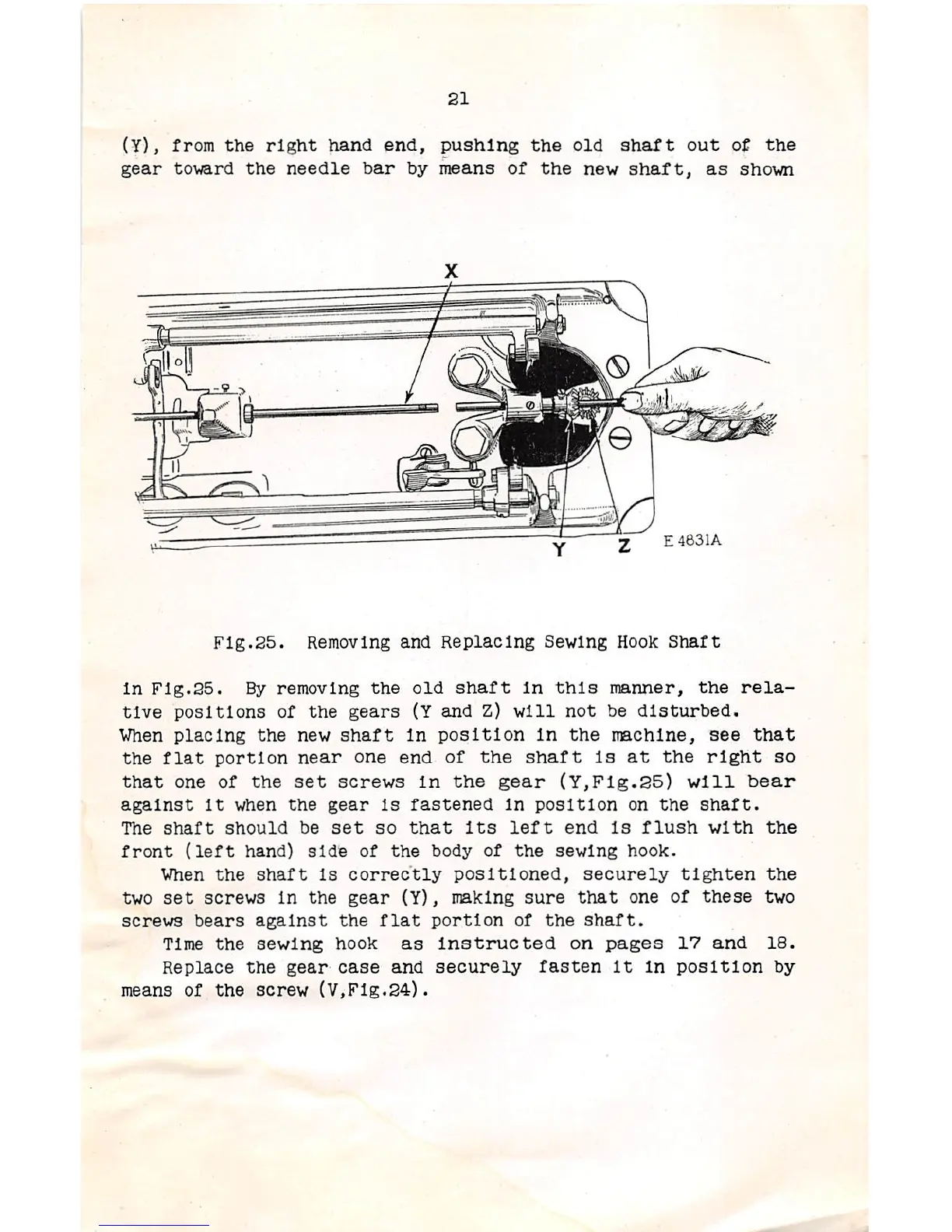

Fig.25.
Removing
and
Replacing
Sewing
Hook
Shaft
In
Fig.25.
By
removing
the
old
shaft
in
this
manner,
the
rela
tive
positions
of
the
gears
(Y
and
Z)
will
not
be
disturbed.
When
placing
the
new
shaft
in
position
In
the
machine,
see
that
the
flat
portion
near
one
end
of
the
shaft
Is
at
the
right
so
that
one
of
the
set
screws
In
the
gear
(Y,Fig.25)
will
bear
against
It
when
the
gear
is
fastened
in
position
on
the
shaft.
The
shaft
should
be
set
so
that
Its
left
end
Is
flush
with
the
front
(left
hand)
side
of
the
body
of
the
sewing
hook.
When
the
shaft
Is
correctly
positioned,
securely
tighten
the
two
set
screws
In
the
gear
(Y),
making
sure
that
one
of
these
two
screws
bears
against
the
flat
portion
of
the
shaft.
Time
the
sewing
hook
as
Instructed
on
pages
17
and
18.
Replace
the
gear
case
and
securely
fasten
It
In
position
by
means of
the
screw
(V,Fig.24).
