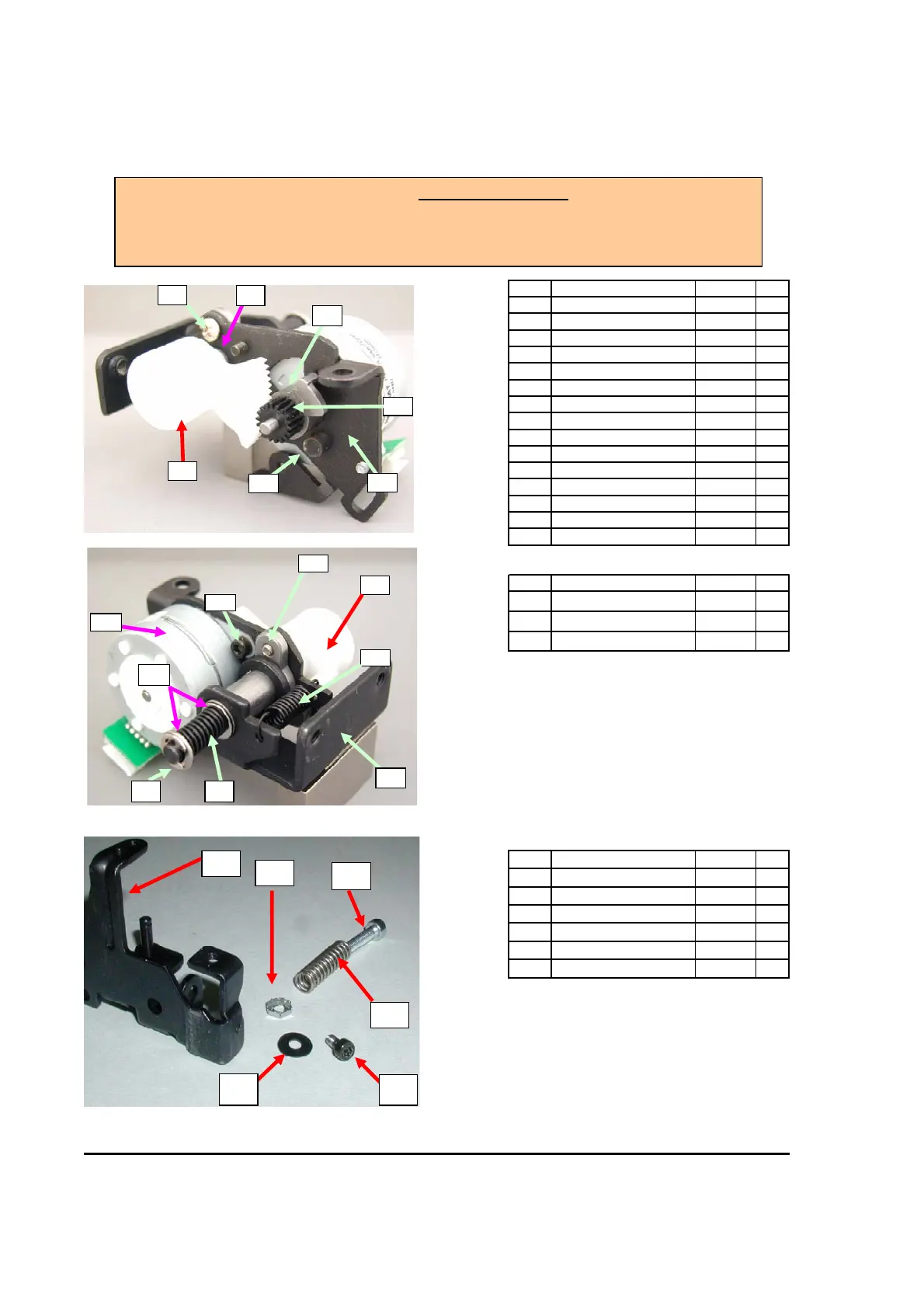

Singer CONFIDENCE 7463 - Parts: Feed Control Unit Full Step CB2;3;4

- 59 -
NO. Name Part no.
1 Motor bracket 87148 1
2 Metal bush 87178 1
3 Feed regulator 87254 1
4 Pinion gear 87253 1
5 Pulse motor 87600 1
6 Compression spring 87191 1
7 M4 Phillips screw 76317 2
8 M3 screw 64653 2
9 Clip-on-washer E4 1513 1
10 Washer 1 59221 2
11 Washer 2 2206 1
12 Vinyl tube(3.5mm) 87273 1
13 M3 socket screw 80110 2
14 Support bracket 87146 1
15 Tension spring 87188 1
NO. Name Part no.
*
Switch 87516 1
*
Switch cover 77527 1
*
M3 screw 63796 1
NO. Name Part no.
16 M3 CP screw 87262 1
17 Washer 31246 1
18 M4 CP bolt 87255 1
19 Compression spring 87189 1
20 AR nut 73299 1
21 Securing bracket 87145 1
Added :January,2006
Parts list for feed control unit of full-step version
with fine adjustment mechanism for CB2/3/4 model
to be used with circuit board #87585
7
3
4
1
8
12
11
14
6
13
15
9
10
5
2
3
18
19
20
16
17
21
