Singer CONFIDENCE 7463 - Parts: Feed Control Unit Half Step CB2;3;4

- 58 -
NO. Name Part no.
1 Motor bracket 87147 1
2 Metal bush 87178 1
3 Feed regulator 87229 1
4 Pinion gear 87246 1
5 Pulse motor 87600 1
6 Torsion spring 80113 1
7 M4 Phillips screw 76317 2
8 M3 screw 64653 4
9 Color 87217 1
10 Washer 1 53321 1
11 Washer 2 32949 1
12
V
in
y
l tube
（
7mm long)
87266 1
13 M3 phillips screw 87256 2
14 Support bracket 87146 1
15 Tension spring 87188 1
NO. Name
*
Switch 87516 1
*
Switch cover 77527 1
*
M3 screw 63796 1
*
Washer 63085 1
NO. Name Part no.
16 M3 CP screw 87262 1
17 Washer 31246 1
18 M4 CP bolt 87255 1
19 Compression spring 87189 1
20 AR nut 73299 1
21 Securing bracket 87145 1
Added :January,2006
Part no.

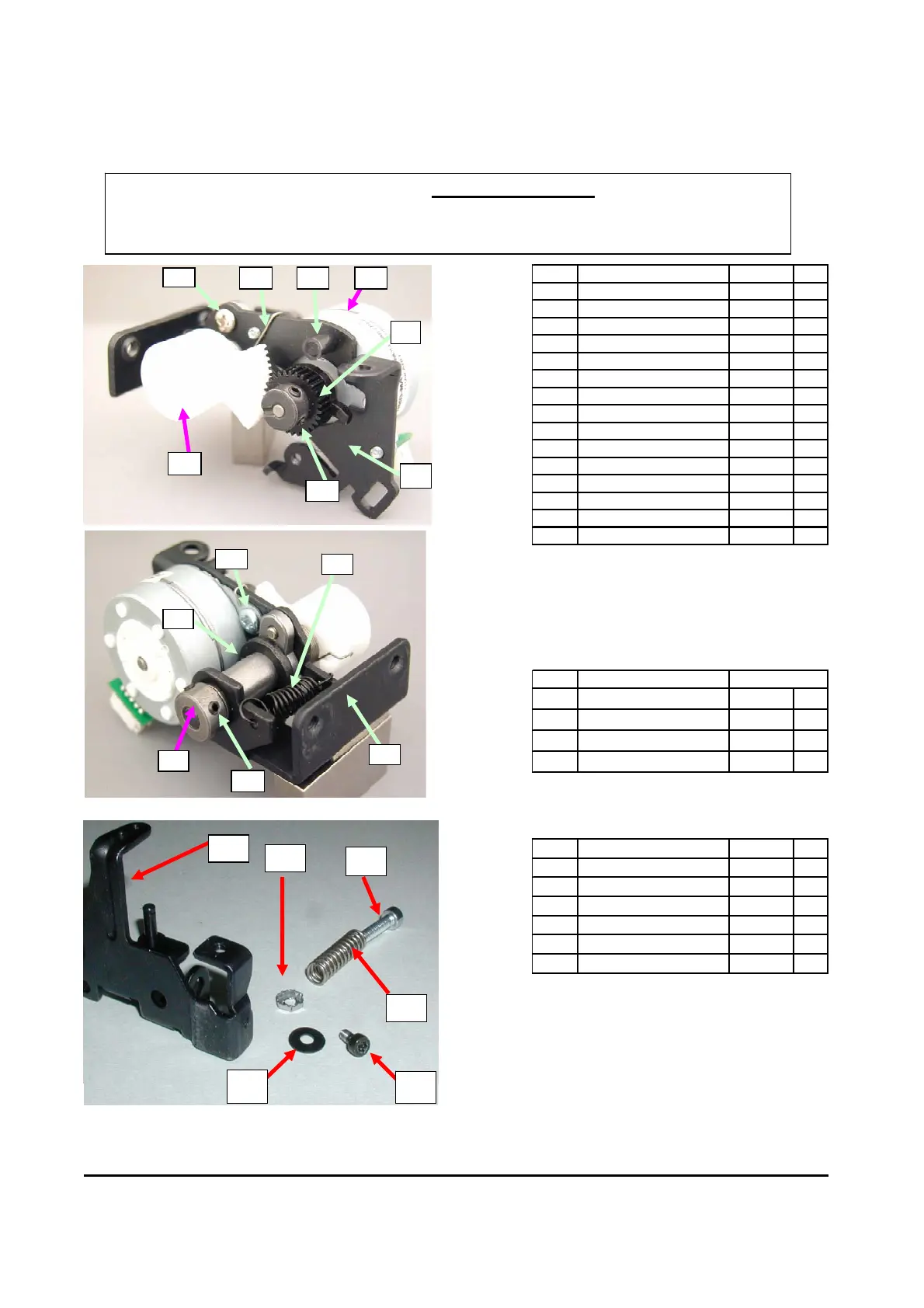

Parts list for feed control unit of half-step version
with fine adjustment mechanism for CB2/3/4 model
to be used with circuit board #87555
3
8
1
4
5 6
7
12
2
9
8
15
13
14
18
19
20
16
17
21
