Singer CONFIDENCE 7463 - Parts List for Feed Control Unit; Parts: Feed Control Unit Half Step CB1

- 57 -
NO. Name Part no.
1 Motor bracket 87123 1
2 Metal bush 87176 1
3 Feed regulator 87229 1
4 Pinion gear 87246 1
5 Pulse motor 87600 1
6 Torsion spring 80113 1
7a M4 Phillips screw 61225 1
7b M4 Phillips screw 61222 1
8 M3 screw 64653 4
9 Color 87217 1
10 Washer 1 53321 1
11 Washer 2 32949 1
12
V
in
y
l tube
（7mm long)
87266 1
13 M3 phillips screw 87256 2
NO. Name Part no.
*
Switch 87516 1
*
Switch cover 77527 1
*
M3 screw 63796 1
*
Washer 63085 1
NO. Name Part no.
14 M3 CP screw 87262 1
15 Washer 31246 1
NO. Name Part no.
16 Securing bracket 87121 1
Added :January,2006
7a
1
2
9
8
7b
13

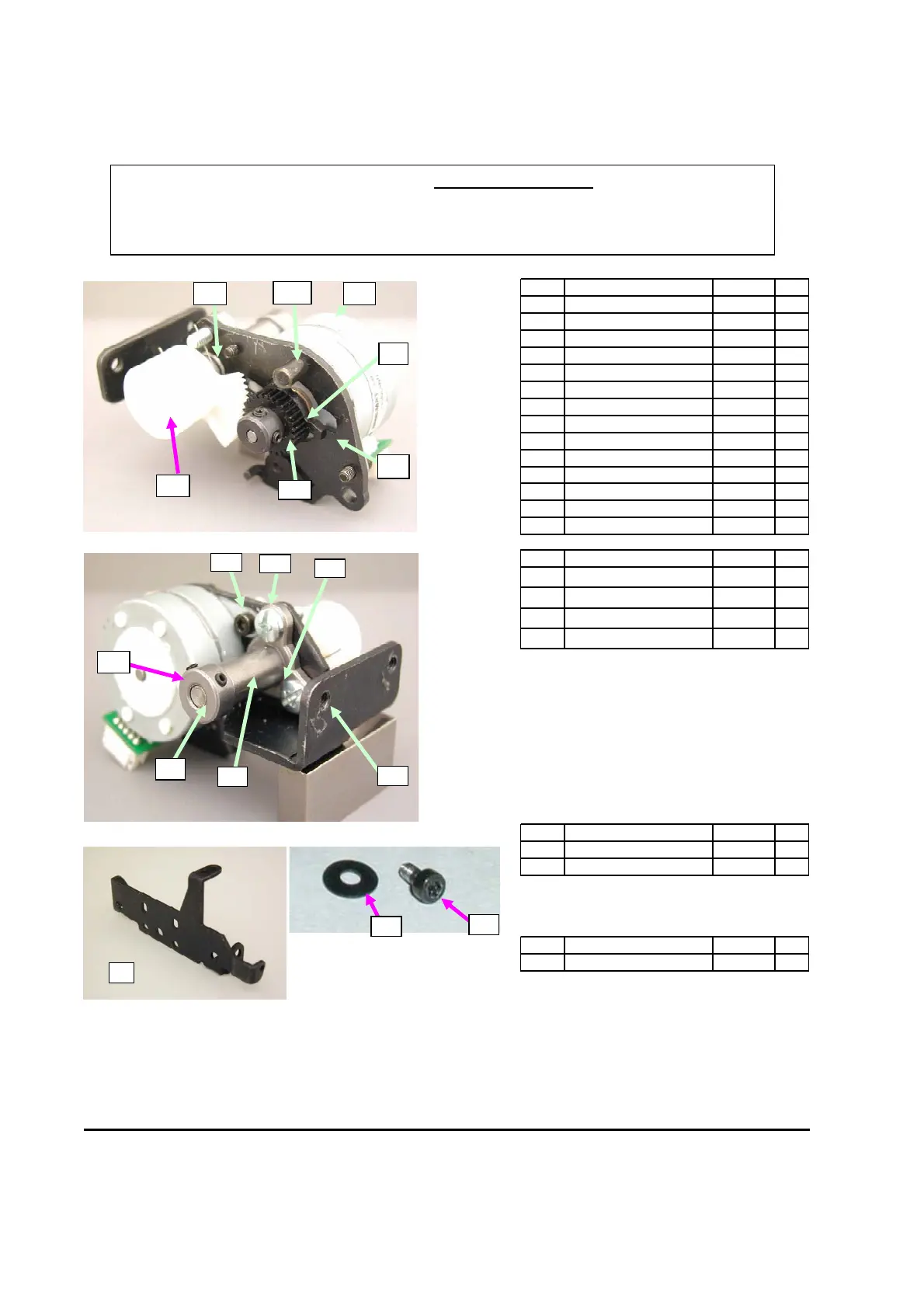

Parts list for feed control unit of half-step version
without fine adjustment mechanism for CB1 model
to be used with circuit board #87520
3
8
1
4
5 6
12
14
15
16
