© May 2023 130 GTZZ14EJ&16EJ Maintenance Manual
OPTIONS
Table 11-10 (Continued)
No. Part Number Part Name Quantity Comment
5
105064043103
Lower gate frame weldment
1
6 105064043107 Lower side mesh 1
7
105064043177 Pipe seal 4
8 215010000050
Bolt M6×16-A2-70 GB/T 5783
17
9 215040000033
Washer 6-A2 GB/T 97.1
23
10 215030000004
Nut M6-A2-70 GB/T 6170
23
11 105064043108 Back left mesh 1
12 105064043112 Back mesh 1
13 105064043118 Back right mesh 1
14 215030000005
Nut M8-8-ZnD GB/T 6170
2
15 215010000062
Bolt M8×45-8.8-ZnD GB/T 5783
2
16 215010000054
Bolt M6×40-A2-70 GB/T 5783
6
17 215040000034 Washer 8-200HV-ZnD GB/T 97.1 2
18 \
Nylon cable tie
\
Installation and Removal
Unsafe Operation Hazard
• Except for designated models
and corresponding markets, it is
forbidden to install the platform
mesh on products with other mod-
els or in other markets than
specified.
• The platform mesh can only be in-
stalled on the platform equipped
with swing gate.
Installation instructions

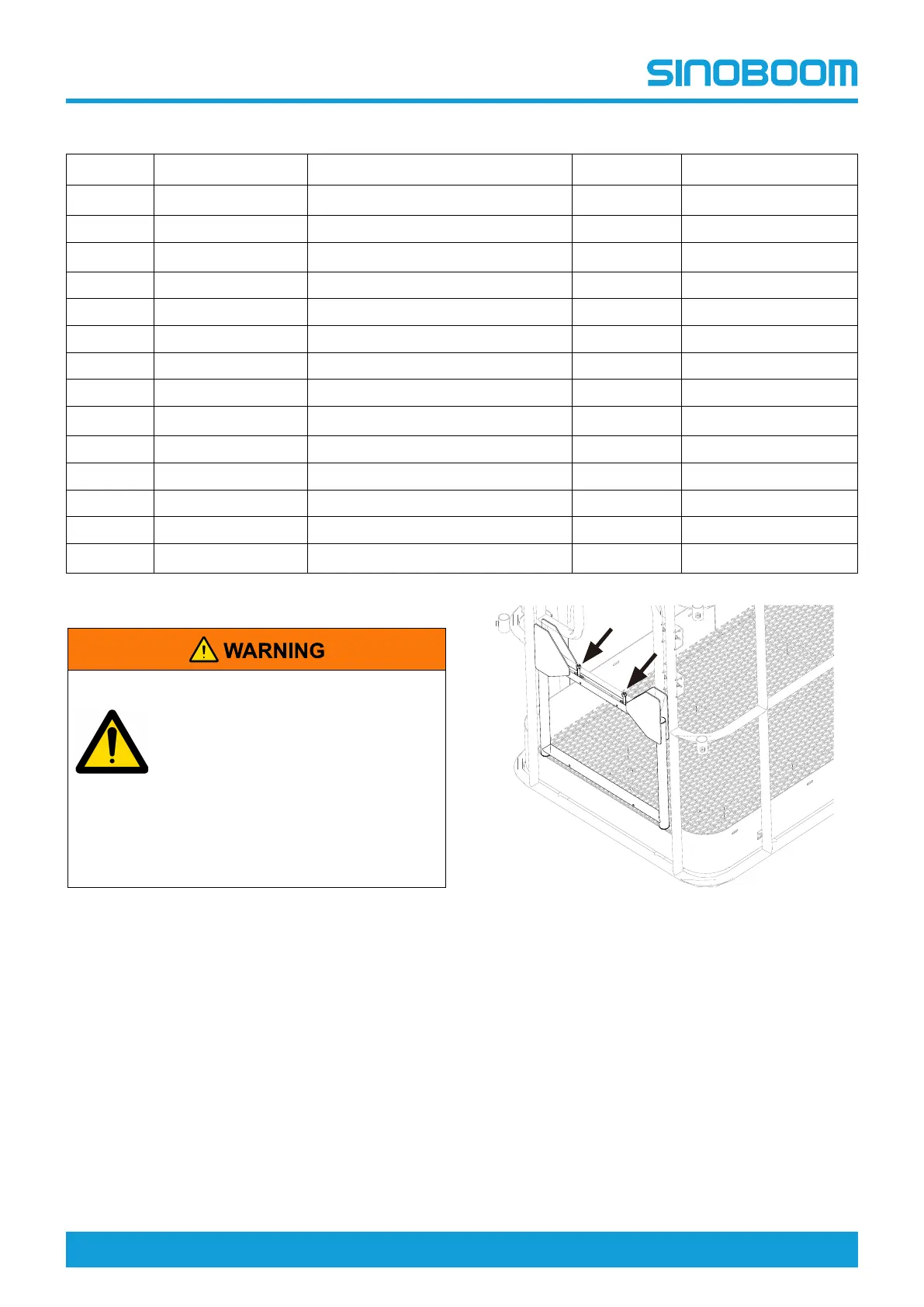

1. Install the gate frame weldment to the wing gate.
Fig 14
2. Half mesh: Install each mesh in sequence as shown
in the figure below, secure the mesh bottom ① with
bolts, and secure the mesh top ② and side mesh ③
with nylon cable ties or bolts.
