PRE-OPERATION FUNCTION TEST

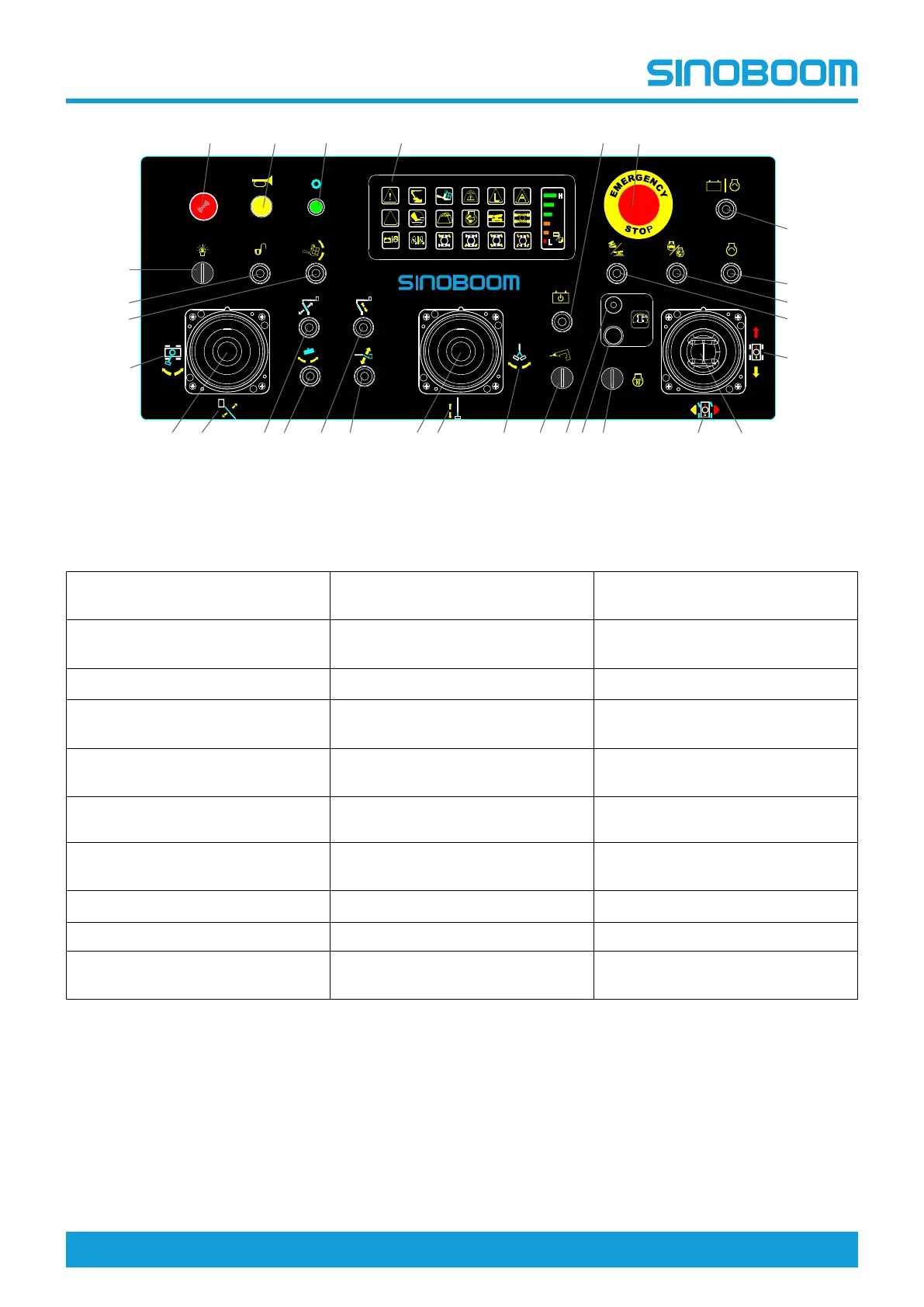

Figure 6-4 Platform Controller
Table 6-4
1. Work light switch
(if equipped)
11. Main boom telescope/jib rotate
control handle
21. Drive high/low speed select
switch
2. Release switch
(if equipped)
12. Main boom telescope direction
22. Engine high/low speed select
switch
3.Platform level switch
13. Jib rotate direction (not used) 23. Engine start switch
4.Turntable rotate direction
14. Hydraulic generator switch
(if equipped)
24. Not used
5. Main boom lift/turntable rotate
control handle
15.Rear position detection indicator
light
25. Emergency stop button
6.Main boom lift direction
16. Reverse position travel drive
switch
26.Emergency power switch
7. Not used
17. Glow plug switch
(if equipped)
27.Malfunction indicator panel
8. Platform rotate switch 18. Steer direction
28. Power indicator light
9. Not used 19. Drive/steer control handle 29. Horn button
10. Jib up/down switch-TB20J Plus
only
20. Drive direction 30. Buzzer button
