TRANSPORTING AND LIFTING THE MACHINE
LIFTING THE MACHINE
WITH A CRANE
Follow these requirements when lifting the machine by
crane:
1. The boom must be stowed while lifting the machine
with a crane.
2. Ensure the boom is positioned in the same direction
as the chassis travels.
3. Ensure the controllers and chassis components are
safe and reliable.
4. Remove all loose parts of the machine.
5. Determine the center of gravity of the machine：X
is 484mm（1ft 7in）,Y is 1300mm（4ft 3in）.

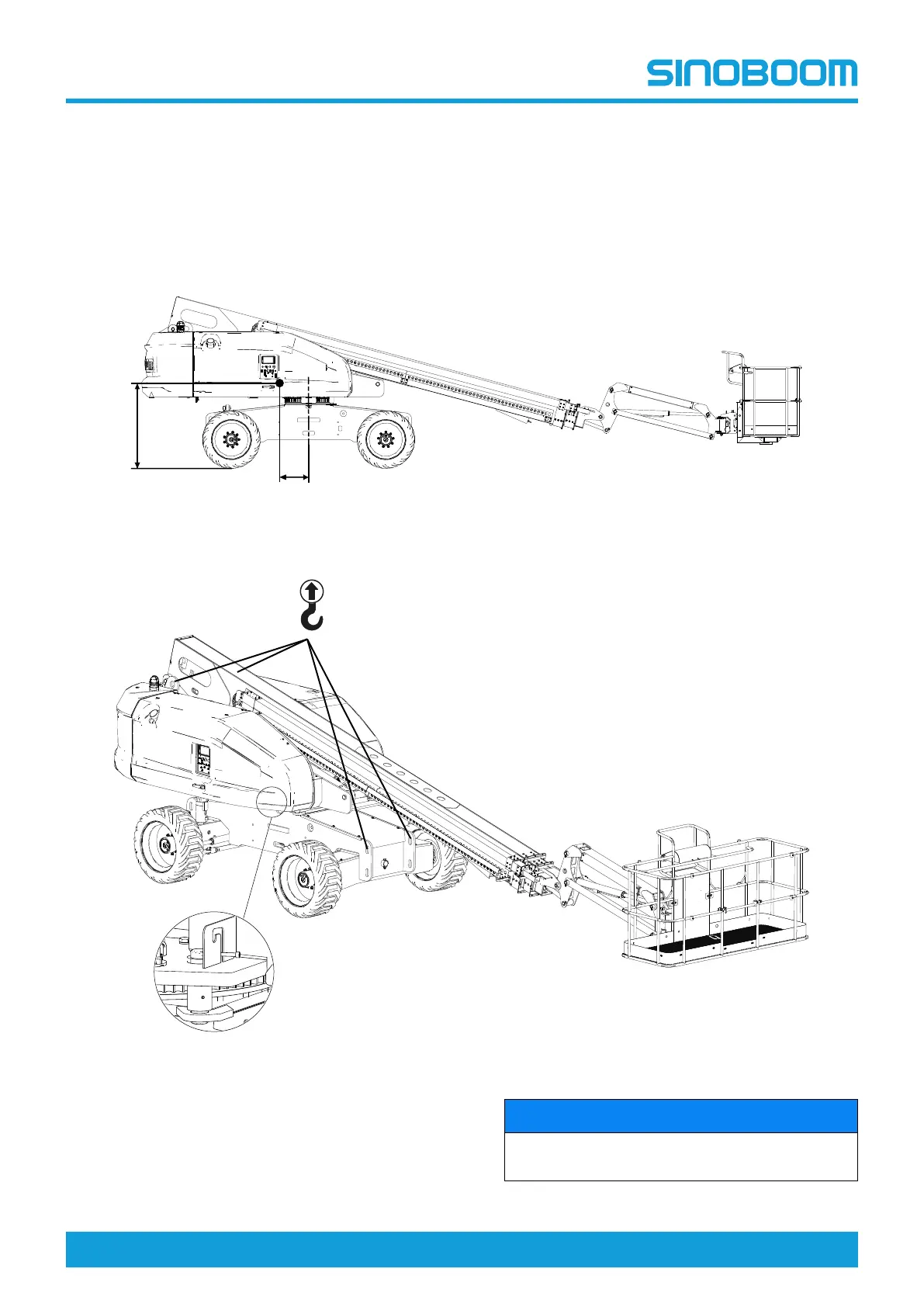

Figure 8-1
6. Lift the machine as shown in the figure below.
Figure 8-2
7. Only connect the rigging to the lifting point specified
on the machine. Adjust the rigging to avoid damage
to the machine and to keep the machine horizontal.
NOTICE
To protect the machine, choose the appropriate
length of rigging.
