SIP 01595 User Manual

26

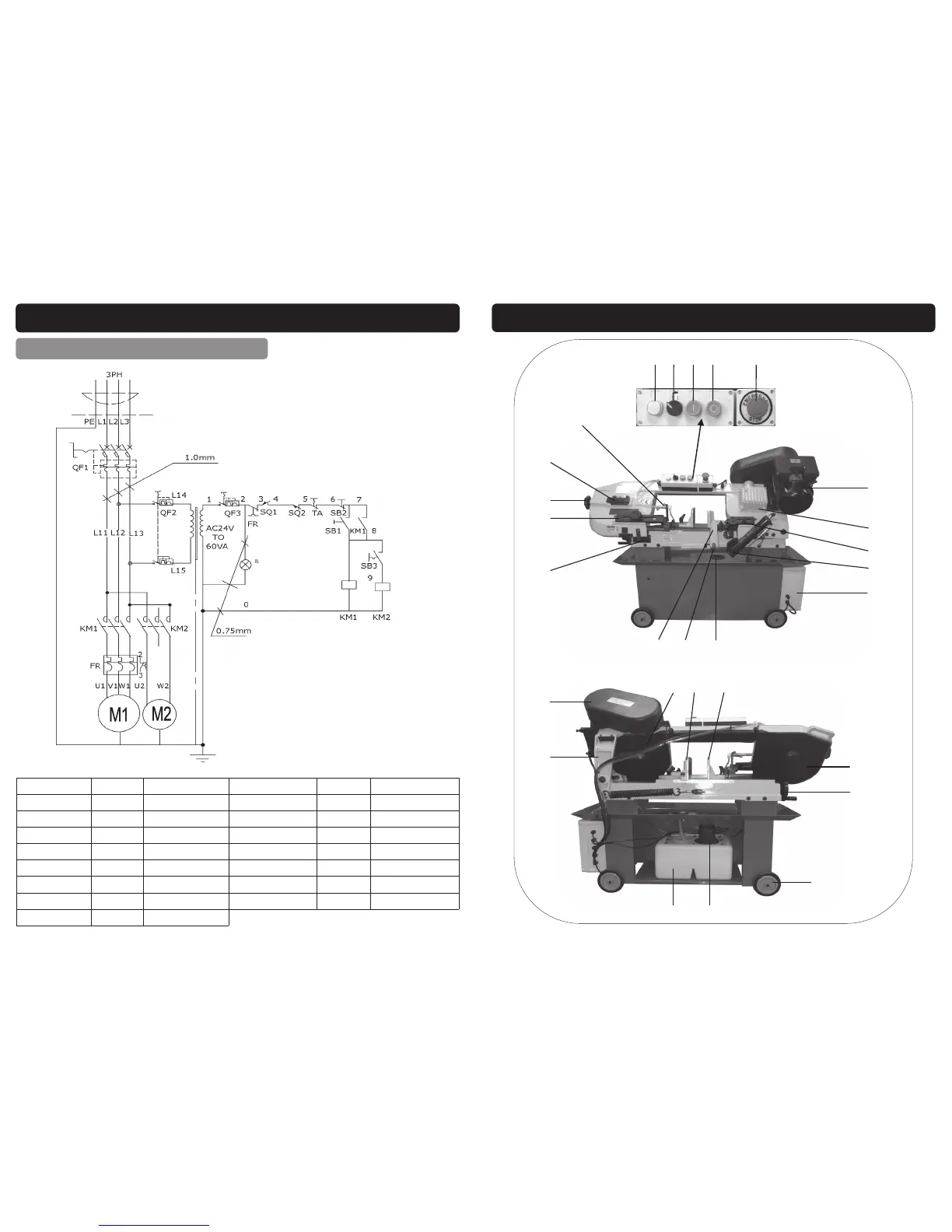

WIRING DIAGRAM….cont
3 PHASE WIRING
Description Reference Specification Description Reference Specification
Main motor M1 50hZ 3ph Contactor KM CN6 AC24v 50Hz
Coolant pump M2 230/400v 50Hz 40w Heat relay FR RHM-5M 2.4-3.6A
Transformer TC AC400,230 24v Limit switch SQ1 QKS7 250V 10A
Current breaker QF1 DZ47-63 2P 10A Interlocking switch SQ2 QKS8 250V 10A
Current breaker QF2 DZ47-63 2P 2A Start SB XB2-BE101
Current breaker QF3 DZ47-63 1P 1A Stop SA1 XB2-BE102
Switch TA XB2-BX542 Start SA2 XB2-ED21
Indicator light EL XB2-BVD3
11
GETTING TO KNOW YOUR BANDSAW
21
24
25
26
27
1
6
19 20
11
12
13
14
15
18
22
23
17
16
2 3
4
5
7
8
9
10
28
