SPIDER
13

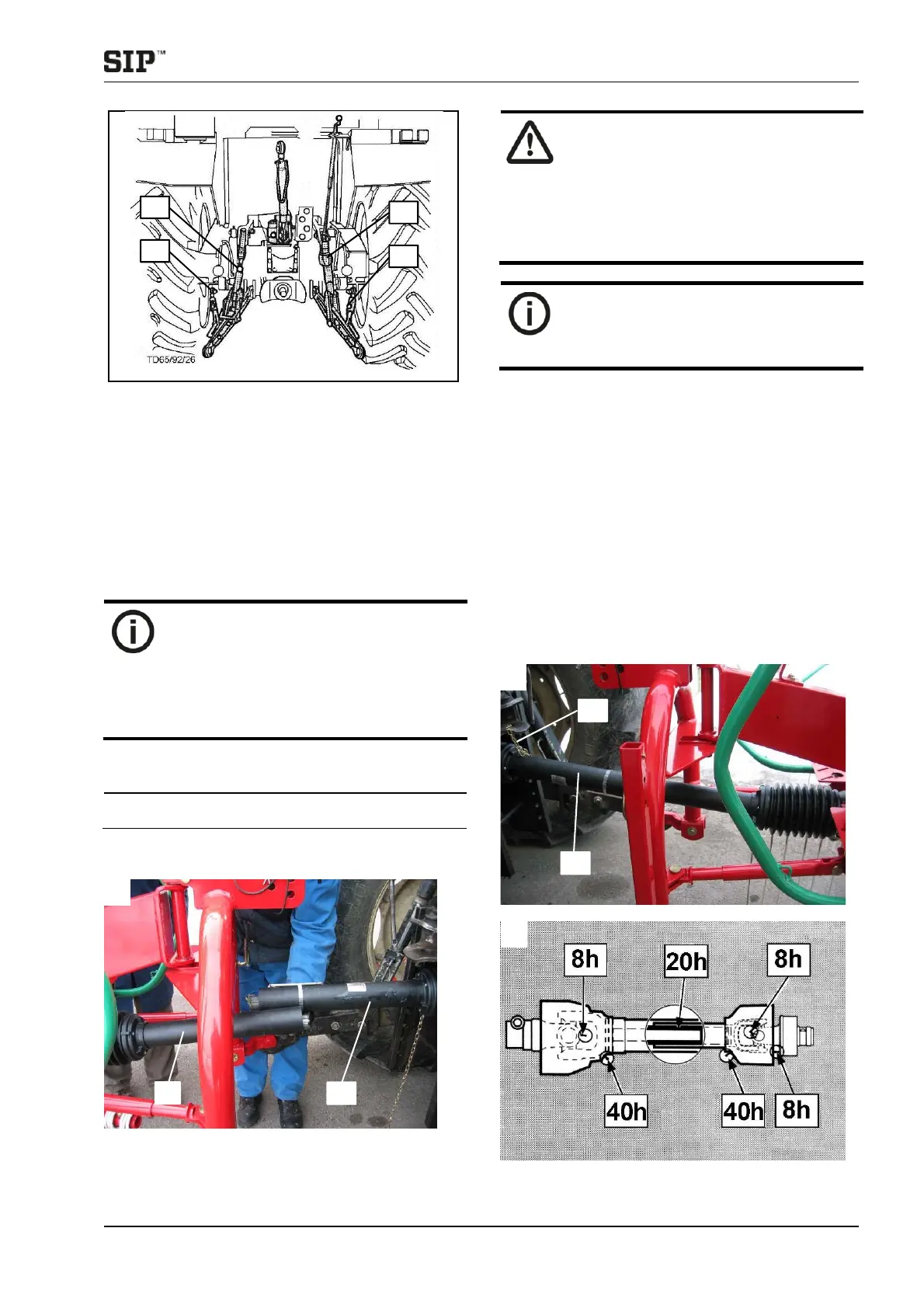

2.3 P. T.O. shaft
2.3.1 General
P.T.O. shaft is constructed with overload safety clutch.
It secures the tractor and the machine from damages.
Do not interfere in overload safety clutch settings.
Loss of warranty rights.
If overloaded the rotation movement is limited with
pulsative slip of the clutch.
–
To prevent the wear out of the overload
safety clutch you must switch off the
P.T.O. shaft immediately.
–
Compare the measured value of
rotation moment RM of the overload
safety clutch with values in the table. If
the values deviate, contact SIP seller.
Type Rotation moment (RM)
SPIDER 400/4 ALP 600 Nm
2.3.2 P.T.O. shaft length adjustment
– Switch off the P.T.O. shaft when
performing check up, maintenance,
repair and mount works. Switch off the
engine and pull out the ignition key.
Secure the tractor from movement.
– Nobody is allowed to stay between
tractor and machine when lowering the
swather with the hydraulics.
–
Danger of material damage: Do not
lower the swather with the hydraulic
before the P.T.O. shaft length is
adjusted.
–
To adjust the length of the P.T.O. shaft pull the both
halves apart.
–
Place the P.T.O. shaft halves on the machine's side
(1) and on the tractor's side (2).
–
Overload safety clutch must be mounted on the
machine's side!
–
Set the machine with 3 point hitch to the shortest
position of the P.T.O. shaft.
–
Hold both halves together and measure out the
right length.
–
For further measurements and adjustments use
the instructions of the P.T.O. shaft manufacturer.
2.3.3 Mounting and maintenance of the P.T.O.
shaft
5
6
6
5
1
2
3
4
4
3
5
