Sipromac 350 - Page 19

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4136
S.L.
1
M
350D

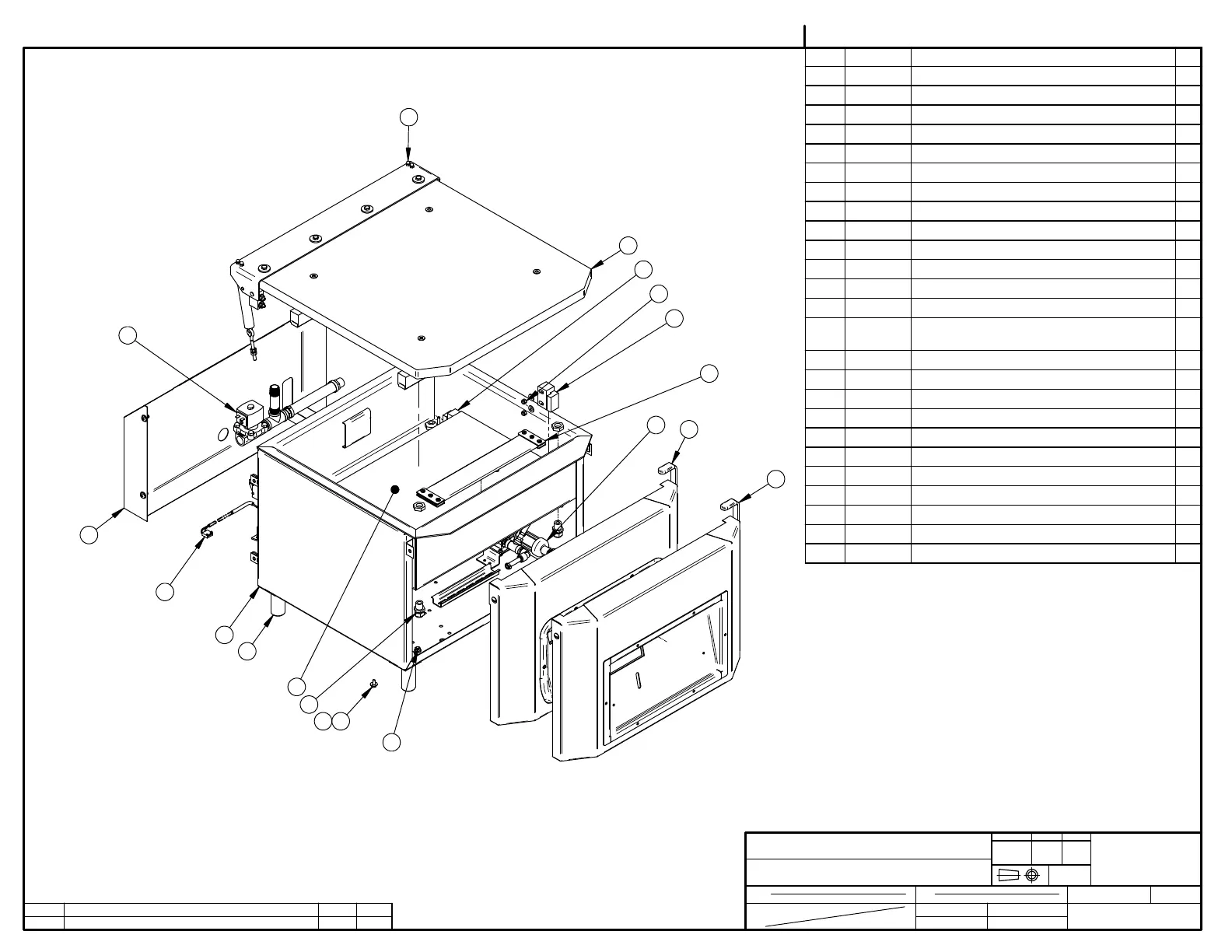

MACHINE ASSEMBLY
13-11-22
004A4136
LET. MODIFICATION DATE INT.
A
BERKEL OPTION ADDED
15-02-23 SBU
18
19
13
1
3
12
7
11
6
5
20
2
17
4
9
8 10
ITEM PART # DESCRIPTION QT.
1 004B0230 VACUUM PRE-ASSEMBLY 1
2 005B0481 COVER ASSEMBLY 1
3 004A1224 SPRING PRE-ASSEMBLY 2
4 005E0832 MC-40 FRONT PANEL ASSEMBLY 1
5 004B4134 VALVE ASSEMBLY VACCUM SENSOR 1
6 004A4133 VALVE ASSEMBLY PUMP 1
7 004C3857 REAR PANNEL PRE-ASS'Y 1
8 051-0740 WASHER 1/4" FLAT S/S 12
9 051-0581 NUT 1/4"-20 NYLON LOCK S/S 8
10 051-0930 BOLT M6 x 10 S/S 4
11 004A4112 NSF FOOT 4
12 004A3374 LIMIT SWITCH ASS'Y 1
13 004-0042 ELEC. SUPPORT PRE-ASS'Y 1
14 036-0400 WIRE CONNECT. 3/8'' NPT
CD09/O-RING/NUT
4
15 036-0200 GROMMET 5/8"IDx1 1/8"OD RUBBER 1
16 036-0390 CABLE CONNECT.3/8"-1/2"METAL 1
17 005-0532 BELLOWS ASSEMBLY 1
18 002-0029 LEFT SEAL BAR GUIDE BLOCK 2
19 002-0030 RIGHT SEAL BAR GUIDE BLOCK 2
20 005A0365 FILLER PLATE ASS'Y 2
21 036-0400 WIRE CONNECTOR 3/8'' NPT NUT 2
22 005A1584 MC-40 FRONT PANEL ASSEMBLY (BERKEL) 1
23 001A0564 VALVE SUPPORT 1
24 051-0143 SCREW 10-24 x 3/8" PAN PHIL S/S 2
25 051-0571 NUT #10-24 S/S 2
22 BERKEL
14
