Sipromac 350 - Page 22

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
005B0266
S.L.
1
M-(M)
300 & 350

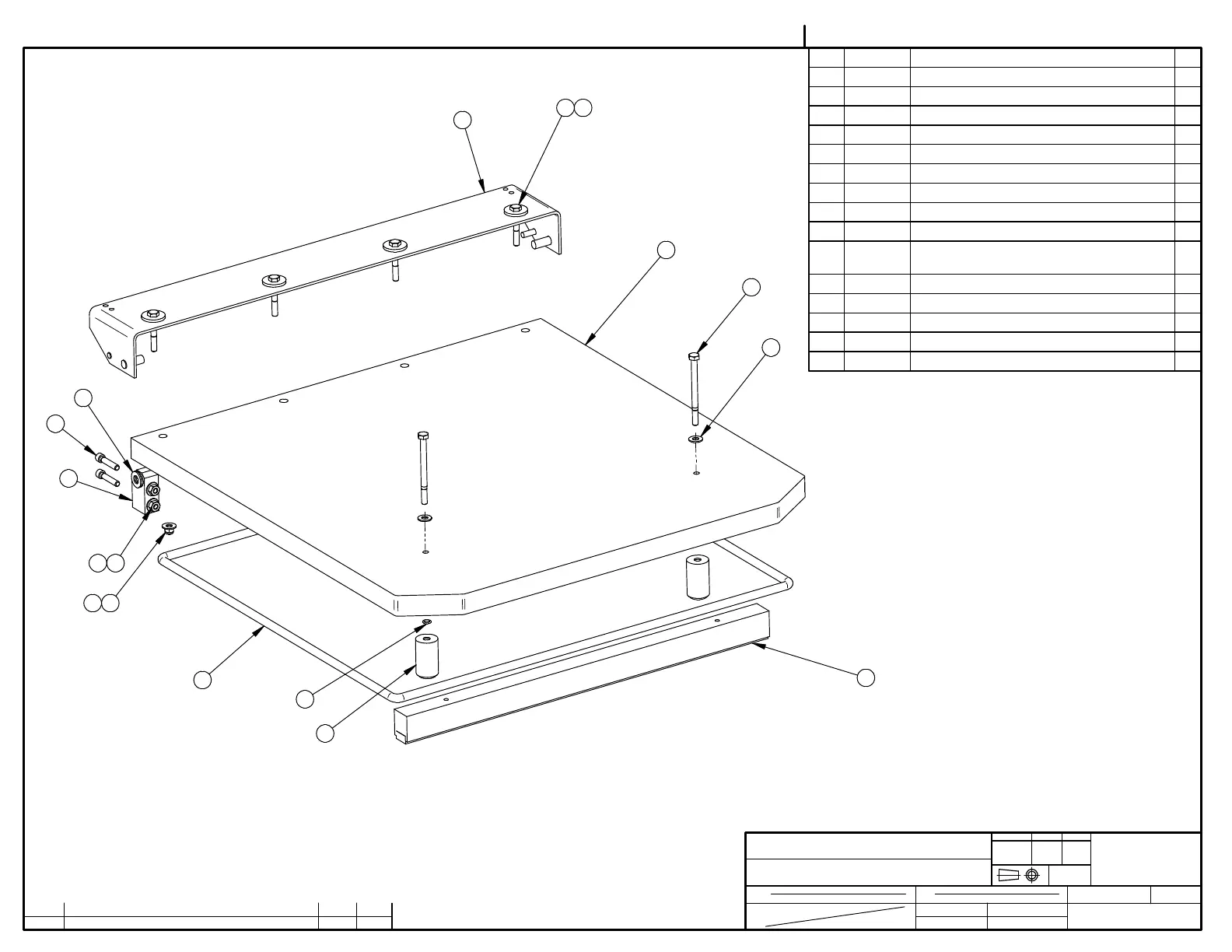

COVER ASSEMBLY
13-11-26
005B0266
LET. MODIFICATION DATE INT.
9
4
ITEM PART # DESCRIPTION QT.
1 002B0025 PLEXI COVER 1
2 004A0021 COVER HINGE ASSEMBLY 1
3 051-0740 WASHER 1/4" FLAT S/S 10
4 051-0255 BOLT 1/4-20 x 1-3/4" HEX SS 4
5 001A2919 WASHER 0.381``ID X 1.062``OD X 3 4
6 051-0581 NUT 1/4"-20 NYLON LOCK S/S 4
7 076-0010 "O" RING 1/4" x 3/8" x 1/16" 2
8 002-0026 UPPER SEAL BAR SPACER 2
9 004B0173 UPPER SEAL BAR PRE-ASS`Y 1
10 179-0005 NEOPRENE SPONGE 3/8" O.D. 2042mm
(6.7')
1
11 002-0024 HINGE BLOCK 2
12 051-0232 SCREW 1/4-20x 1-1/4"SKT CAP SS 4
13 051-0580 NUT 1/4"-20 S/S 4
14 058-0030 NYLON SPACER 3/8IDx3/4ODx1/16 4
15 051-0287 BOLT 1/4-20 x 3-1/4" S/S 2
2
1
5
11
133
12
14
15
3
7
8
10
63
