5

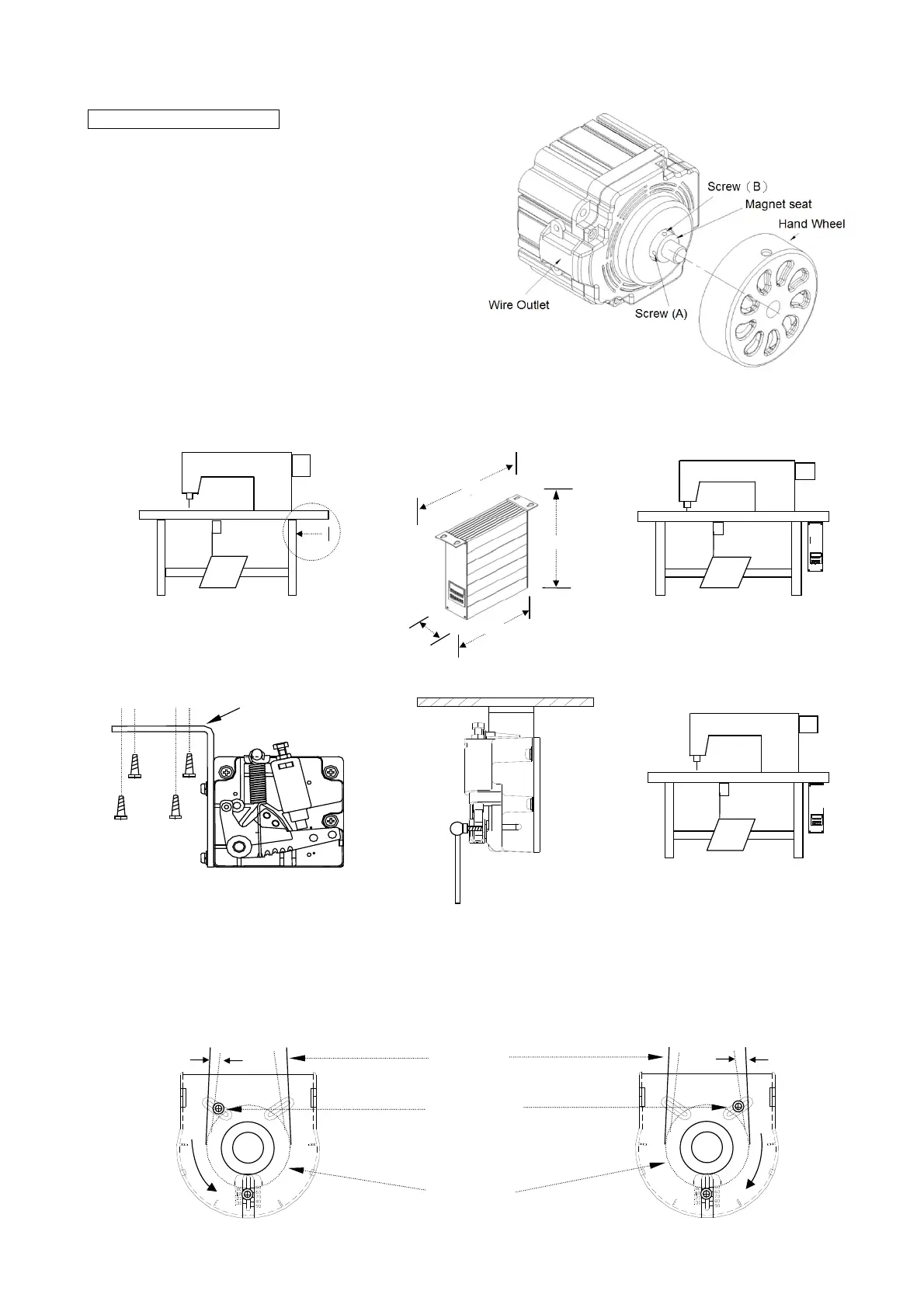

Adjust on needle position
1. Takes off hand wheel of sewing machine.
2. Turns the shaft gets the scale stop at highest point
(or the point of up position in sewing machine).
3. Turn the encoder disc and the screw (A) to aim at
wire outlet of motor.
Remark: above description is a standard of
position adjustment, if the position
is not satisfy pleases adjust till it
match your requirement.
(2). Control Box Installation:
(3). Speed Control Unit Installation:
(4). Components of Belt Cover Adjustment:
A. Finger Guard Adjustment : ( For CE type only )
a). Leave 100 mm space at right b). Mounting i 70M under the working table c). Installation layout
Control
box
100 mm
a). Speed Control Unit b). Keep rod in vertical, secure the unit under the table c).Installation layout
Speed control
unit
T
ab
l
e
Pedal rod
Screws
Support stand
Always use screwdriver to tightly secure screws
1). Factory default, Finger guard is set at ( B ). (for lockstitch machine rotation direction)
2).
When use Interlock stitch machine, Finger guard is set at (C).
Front view
Counterclockwise
Front view
C
B
A
10 mm
C
B
A
10 mm
Clockwise
V-belt
Pulle
y
Fin
g
er
g
uard
CASBDP
CASBDP
60mm
239mm
171mm
Measurement:
231.4mm
