Siruba C007K User Manual
4
of 1
of 1 rating
59 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
17

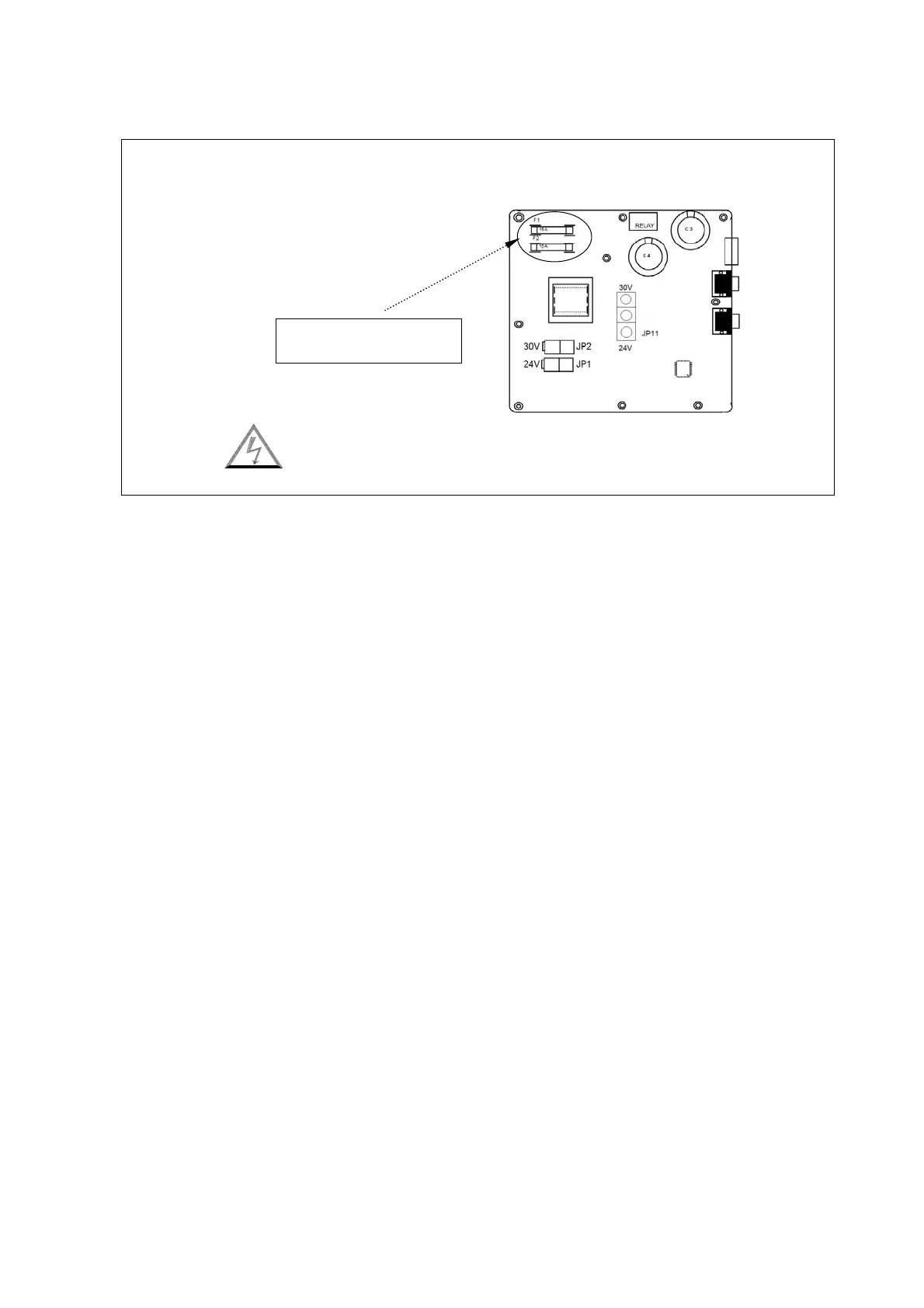

(2). Instruction of Fuse Replacement
Fuse T
ype and Location
：
When fuse fused, find out the cause
and fix it before replace the new one
Main Board T
op
View
Caution
：
T
urn off the pow
er and wait 10 minutes
before opening box co
ver
F1 / F2 Fuse is 15
A / 250V
( For
AC Po
wer Protection )
48
50
Table of Contents
漢語
4
Default Chapter
4
Table of Contents
4
作業環境的安全
6
安裝的安全
6
保固期限規定
7
保養維修的安全
7
保養維修的規定
7
危險標示、注意標示
7
操作中的安全
7
2 安裝與調整 (1). 馬達的安裝
8
控制箱的安裝
10
控速器的安裝
10
皮帶護蓋上的調整
10
定位器(傳感器)的安裝與調整
11
3 接線與接地 (1). 單相與三相電源線的接法
13
Ac 220V 燈線插座的接線使用
13
控制箱正面
15
5 Led 字幕畫面的顯示模式
16
在【一般模式】畫面區，三本車機型時面板按鍵的功能與定義
16
如何進入第一階【參數模式 a 】畫面區的操作步驟
16
如何進入第二階【參數模式 B 】畫面區的操作步驟
17
6 常用參數內容表
20
錯誤信息 Ero. 之顯示碼與排除對策
21
保險絲的更換
22
I 70M 部品表
23
8 端子座 Pin 功能配置圖
24
I 70M-7-46：(LT) (DW) (K1)
25
English
31
1 Safety Precaution
33
Work Environment
33
Safety in Installation
33
Safety in Operating
34
Safety in Maintenance and Repairs
34
Regulation in Maintenance and Repairs
34
Danger and Caution Signs
34
Warranty Information
34
2 Installation and Adjustment (1). Motor Installation
35
Control Box Installation
37
Speed Control Unit Installation
37
Components of Belt Cover Adjustment
37
Install the Belt Cover
38
Install and Adjust the Synchronizer
38
Adjust the Speed Control Unit
39
3 Power Connection and Grounding (1). Single Phase and Three Phase Connection
40
How to Connect a 1Φ / 220 V Power from a 3 Φ / 380 V Power Source
40
The Usage of AC 220V Lamp Connector
40
The Load Balance When Use a 1Φ / 220 V Motor Used on a 3 Φ / 220 V Power Source
41
How to Change Solenoid Supply Voltage (DC 24 V or 30 V)
41
4 Diagrams of Control Box
42
5 Programmable 7-Segment Display
43
How to Access【Parameter Mode a
43
How to Access 【Parameter Mode B
44
6 General Parameter Table
47
7 Basic Troubleshooting (1). Error Code and Measurement
48
Instruction of Fuse Replacement
49
I 70M Parts List
50
I 70M-7-66 (V7)
51
I 70M-7-46 (LT) (DW) (K1)
52
I70M-7-BR
53
Other manuals for Siruba C007K
Instruction Book
52 pages
Parameter Manual
33 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Siruba C007K and is the answer not in the manual?
Ask a question
Siruba C007K Specifications
General
Brand
Siruba
Model
C007K
Category
Sewing Machine
Language
English
Related product manuals
Siruba C007J
18 pages
Siruba C007KD
29 pages
Siruba C007KP
72 pages
Siruba L381
62 pages
Siruba P717K
29 pages
Siruba DL720
6 pages
Siruba DL918
42 pages
Siruba PK522
53 pages
Siruba 700QD
94 pages
Siruba DL7200
63 pages
Siruba HSO-747D
34 pages
Siruba Sew Reach D007S
40 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
