Siruba C007KD - 3.4 Solenoid Supply Voltage Change (DC 24 V or 30 V)

5
(4). How to change solenoid supply voltage (DC: 24 V OR 30 V)：
The JP4 is for 30 V and 24 V.
Caution:
Turn off the power wait for 5 min. before open the
cover, then make the change.
High Voltage inside
30 V jumper setting
24 V jumper setting

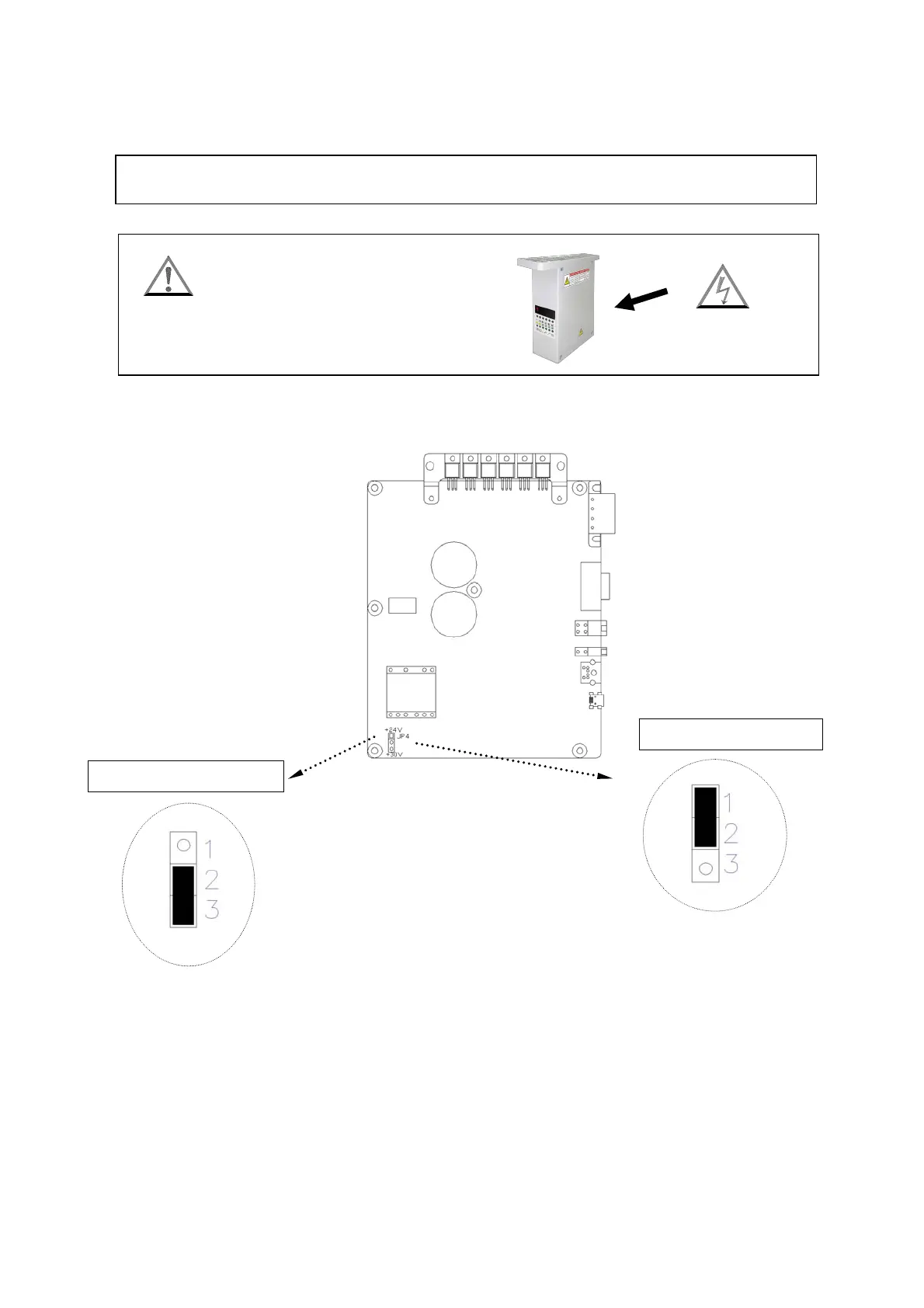

Main board layout:
HSV-MC122229
HSV-MC122237
30V
JP4
24V
JP4
Caution: Before making the switch, check the machine head’s Solenoid specification.
