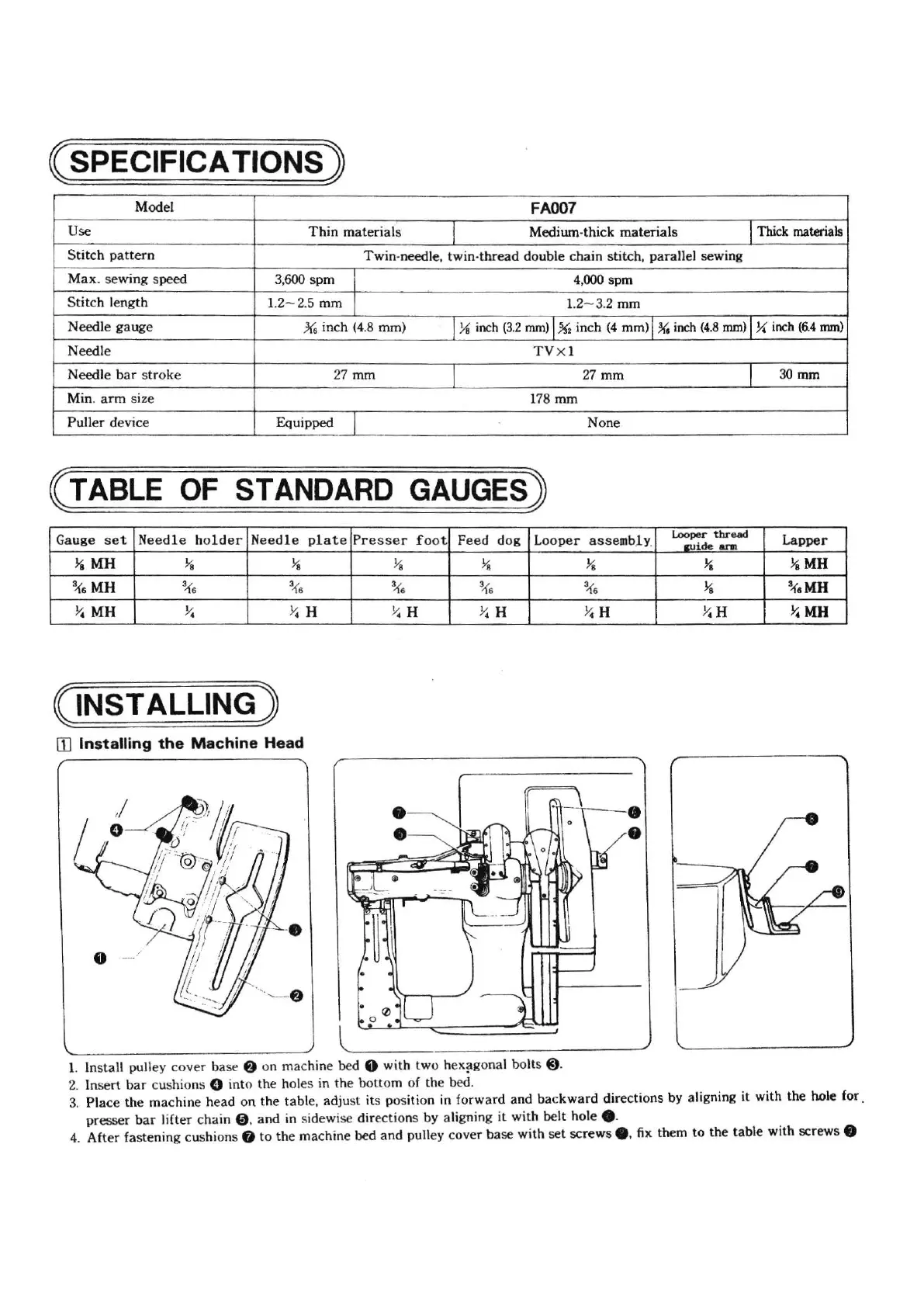

(SPECIFICATIONS)
Model
FA007
Use
Thin materials
I
Medium-thick materials
I Thick materials
Stitch pattern
Twin -needle, twin - thread double chain stitch, parallel sewing
Max . se wing speed
3,600 spm
4,000 spm
Stitch l engt h
1.2 -2.5 mm
1 .2-3.2 mm
Needle gauge )(5 inch (4.8 mm)
I Ys inch (3.2 mm) I% inch (4 mm) I ~ inch (4.8 mrn) I U inch (6.4 mrn)
Needle TVxl
Needle bar s troke 27 mm
I
27mm
I
30 mm
Min . arm size
178mm
Puller device
Equipped _
_j___ _
None
(TABLE OF STANDARD GAUGES)
Ga uge set Needle ho lde r Needle plate Presser foot Feed dog
Looper assemblY .
Looper thread
Lapper
oruide .....,
Y.MH
Ya Ya Ya Ya
Ya
Ya
Ya MH
!J<s MH
!J<s
!J<s !J<s
!J<s !J<s
Ya
~~ MH
Y. MH
Y.
Y. H Y.H Y. H
Y. H
Y.H Y.MH
(INSTALLING)
[]] Installing the Machine Head
1. Install pulley cover ba se 8 on machine bed 0 wi th two h ex l"g onal bolt s @).
2. In sert bar cushions 0 int o the holes in th e bottom of th e bed.
3. Place the m ac hine h ea d on the table , adjust its position in forward and ba c kward dire c tions by a li gning it with the hole for.
presser bar lifter c hain 0 . and in sidewise dir ec tions by aligning it with be lt hole e.
4. After fastening cushions 8 to the ma chine bed and pulley cover ba se with set screws e. fix them to the table with screws 0
