CABLES
The CNTR4/CNTRNIMBLE/CNTRNIMLEPLUS cable is integrated in the receiver
with free wire termination on the other end.
The CNTR 8 - CNTR 20 - CNTR 32 have a standard one-meter cable with
SICMA FCI 24-pole female header connector (CNTR8 and CNTR20) or with the
SICMA FCI 56-pole female header connector (CNTR32), and with free wires on
the other end of the cable.

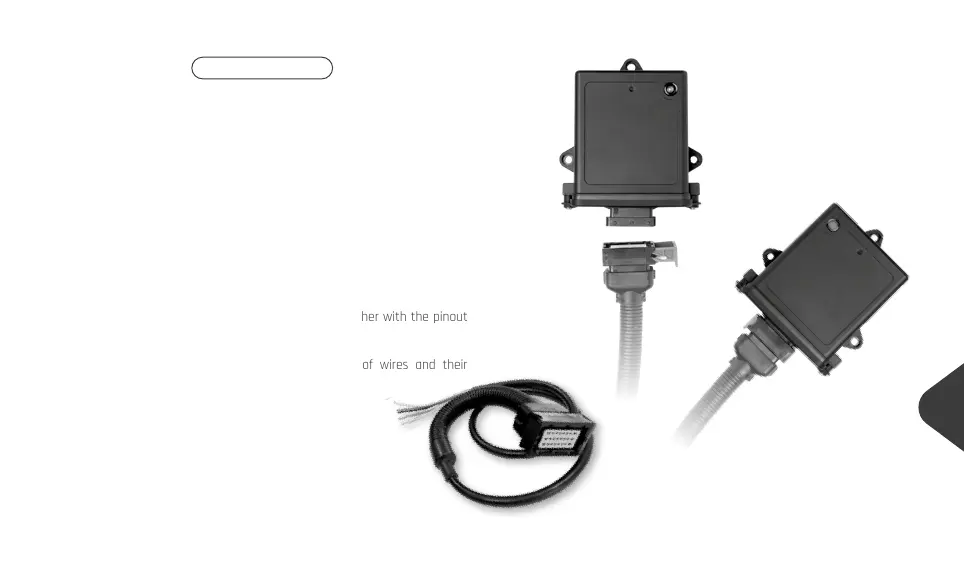

These connectors are PlugIn and greatly simplify the installation of the
product or the quick release of the cable from the controller. In fact, in case
of replacement of the receiver, it is sufficient to detach it without having to
disassemble everything or open the box.
The wiring consists of a series of coloured wires according to the number
of functions (for standard applications). The colour is indicated in the
installation data sheet supplied with the product, together with the pinout
of the connectors.
Upon request, the length of the cable, the number of wires and their
termination with special connectors can be customized.
