Page 14
ELECTRIC CIRCUIT:
Type.
Transformation of voltage 220-12-24 Volt.
Control circuit w ith low voltage 24 Volt, solenoid valve 24 Volt.
The electronic control panel with the key board for setting up commands functioning at 24 Volt.
Power 40 Watt
Voltage 240 V
Control amperage 190 mA.
Alimentation line FROR-NPI-450/750-1x3x1,5mm
Power required 240 V
Control circuit 24V
Electric system TN-S/TT
Operating Temperature +1 +35 degrees C.
Machine’s protection IP 44
DB max output 82 db

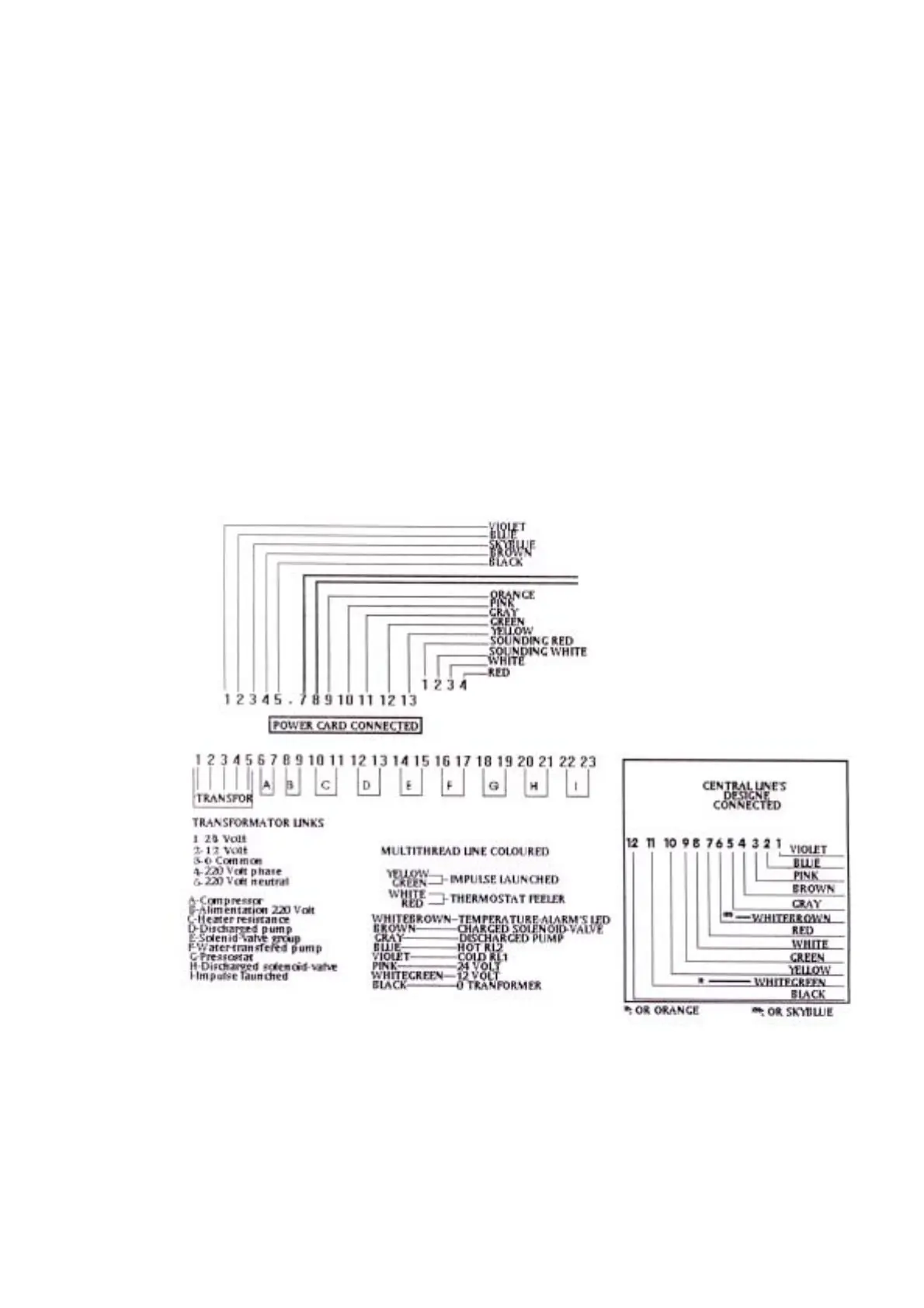

Wiring diagram
Decibel Output
During operation, the machine emits an output of less than 82db (A).
As the positioning of the machine will vary from location to location, it has been tested for
maximum emission as set out below.
Height from the ground: 1.6 metres
Distance from the machine: 1.0 metres
From this test it is deduced by the manufacturer that the machine does not produce detrimental
noise emissions and therefore the operator does not need to wear ear protection.
