REV. 02 12 / 30

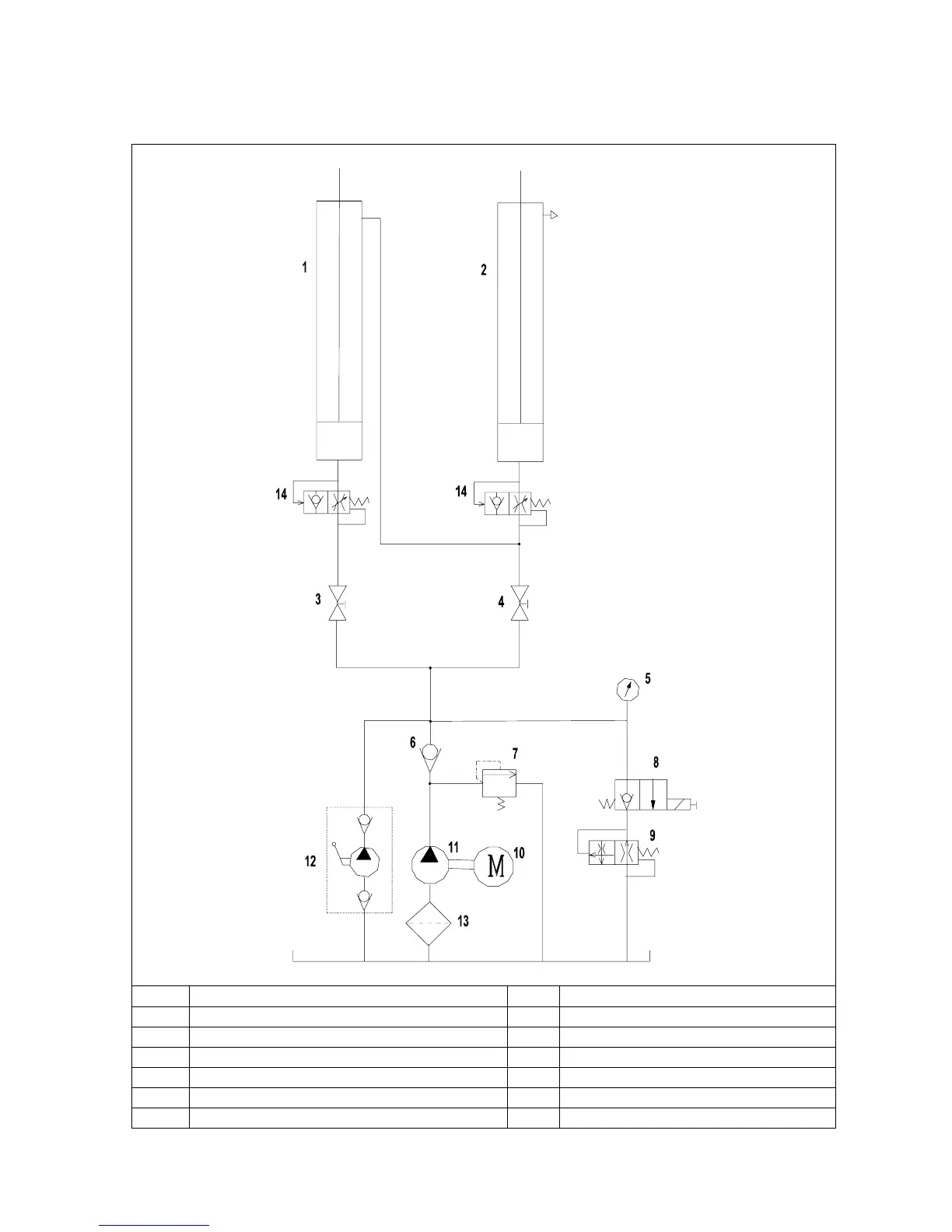

Figure 4 – HYDRAULIC PLAN

1 Master hydraulic cylinder 8 Lowering solenoid valve

2 Slave hydraulic cylinder 9 Lowering control valve

3 Leveling cutoff cock (normally open) 10 Motor

4 Leveling cutoff cock (normally close) 11 Gear pump

5 Pressure gauge 12 Emergency hand

ump

6 Non return valve 13 Oil filter

7 Maximum pressure valve 14 Parachute valve
