CHAPTER 8 - OPERATION AND USE
Never operate the lift with any person or equipment below.
Never exceed the rate lifting capacity.
Always ensure that the lift rests on the safety locks before any attempt is
made to work on or near the vehicle.
If an anchor bolt becomes loose or any component of the lift is found to be
defective, DO NOT USE THE LIFT until repairs are made.
Do not permit the electric control unit to get wet!
8.1 CONTROLS

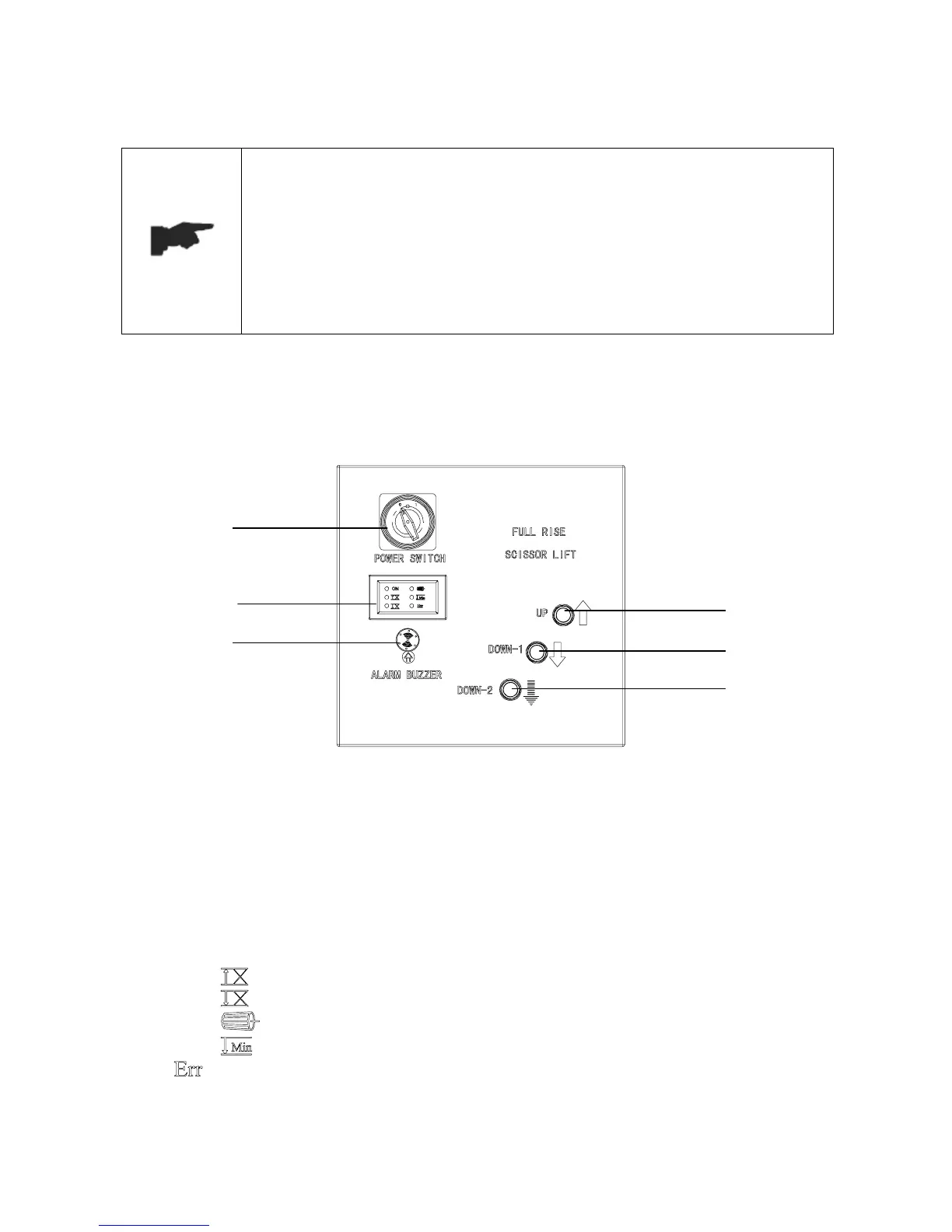

CONTROL PANEL (Figure 18)
Controls for operating the lift are:
POWER
SWITCH (1)
The power switch can be set in two positions:
¾ 0 position: the lift electric circuit is not powered; the switch can be padlocked to prevent the
use of the lift.
¾ 1 position: the main electric circuit is powered.
DISPLAY WINDOW (2)
¾ When ON lights, it shows that the electric circuit is powered.
¾ When lights, it shows that the maximum lifting height limit switch activates.
¾ When lights, it shows that the safety height limit switch activates.
¾ When lights, it shows that the power unit is working.
¾ When lights, it shows that the lift starts the final lowering.
¾ indicator is disabled in this lift.
BEEPER (3)
